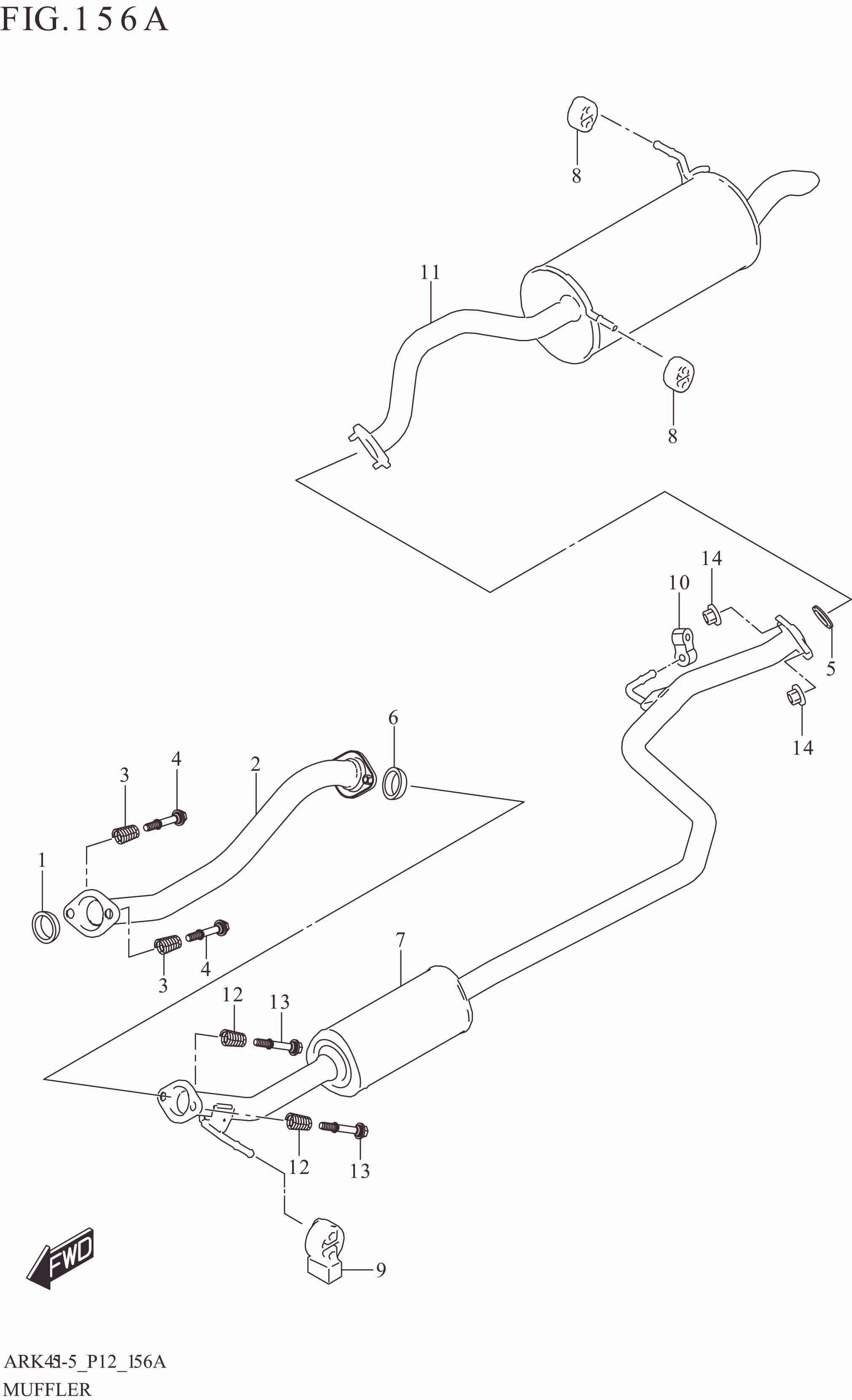

156A MUFFLER

156A MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14183-77M00-000 RING, SEAL EXH PIPE 1 Rp145.500
2 14190-73R00-000 PIPE,EXH 1 Rp282.000
3 14492-77M00-000 SPRING,EXH PIPE 2 Rp19.500
4 09119-10073-000 BOLT (10X65) 2 Rp75.000
5 14182-77M00-000 GASKET,EXH PIPE 1 Rp20.500
6 14183-77M00-000 RING, SEAL EXH PIPE 1 Rp145.500
7 14250-73R00-000 PIPE,EXH CENTER 1 Rp1.160.000
8 14281-73R10-000 MOUNTING,MUFFLER 2 Rp25.500
9 14281-73R00-000 MOUNTING,MUFFLER 1 Rp89.500
10 14281-77M20-000 MOUNTING, MUFFLER 1 Rp23.000
11 14300-73R00-000 MUFFLER 1 Rp1.800.000
12 14492-77M00-000 SPRING,EXH PIPE 2 Rp19.500
13 09119-10073-000 BOLT (10X65) 2 Rp75.000
14 09159M10049-000 NUT (M10) 2 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
