All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 101A SHORT ENGINE ASSY105A ENGINE GASKET SET110A CYLINDER HEAD COVER111A CYLINDER HEAD112A CYLINDER115A OIL PAN120A CRANKSHAFT (N_EASS)120B CRANKSHAFT (W_EASS)122A CAM SHAFT/VALVE124A CAM CHAIN128A ENGINE MOUNTING (5MT)128B ENGINE MOUNTING (4AT)130A INTAKE MANIFOLD142A THROTTLE BODY150A AIR CLEANER154A EXHAUST MANIFOLD156A MUFFLER157A DELIVERY PIPE160A FUEL PUMP176A OIL PUMP (N_EASS)176B OIL PUMP (W_EASS)180A WATER PUMP (N_EASS)180B WATER PUMP (W_EASS)184A RADIATOR (5MT)184B RADIATOR (4AT)188A WATER HOSE (5MT:(GA,GL))188B WATER HOSE (4AT:GL)188C WATER HOSE (5MT:(GX,SS))188D WATER HOSE (4AT:(GX,SS))190A EMISSION CONTROL199A LABEL

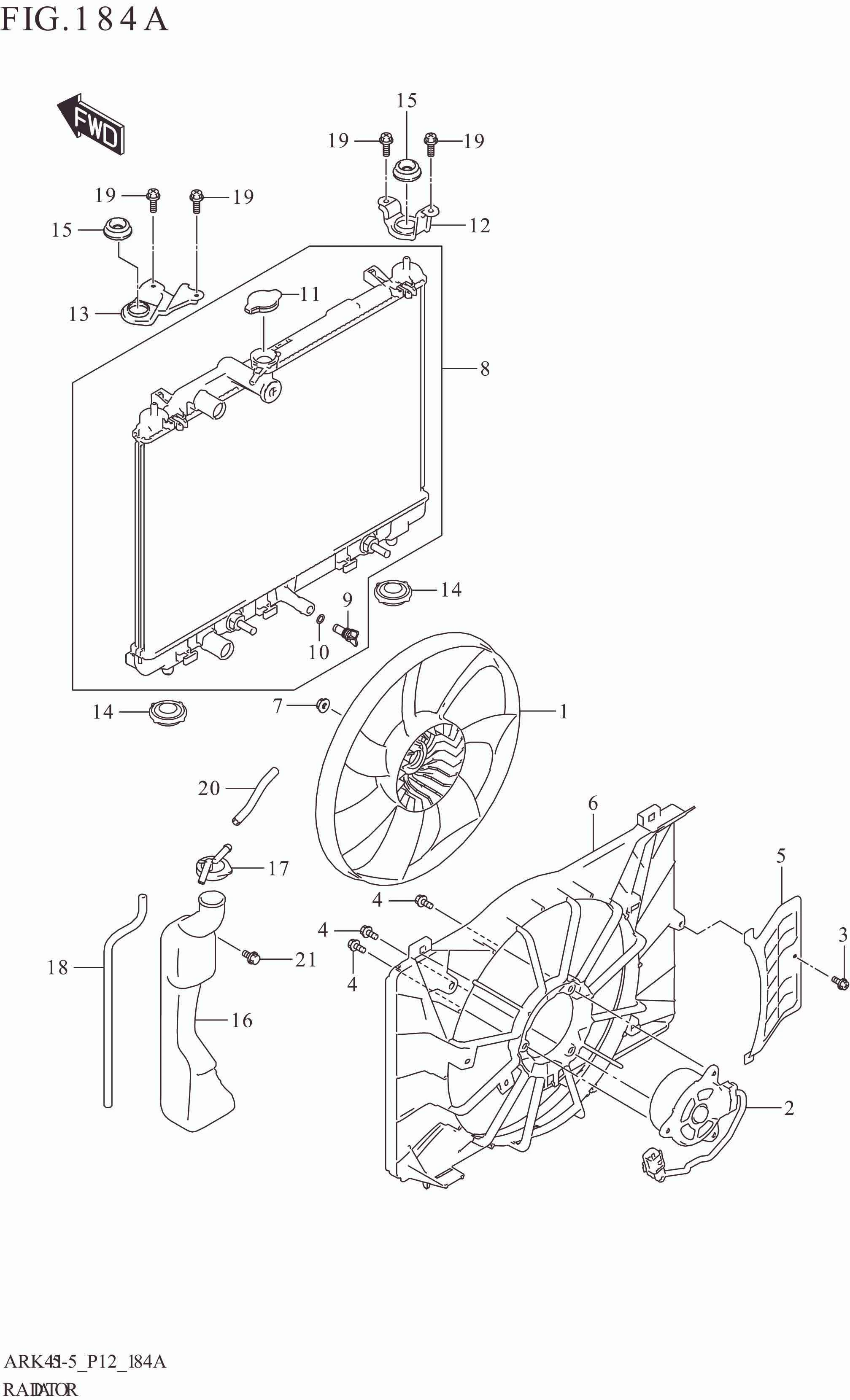

184A RADIATOR (5MT)

184A RADIATOR (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 17111-73R00-000 FAN ASSY 1 Rp376.000
2 17120-73R00-000 MOTOR ASSY,COOLING FAN 1 Rp816.500
3 17129-50F10-000 SCREW (5X11) 1 Rp21.500
4 17129-56F00-000 SCREW,FAN MOTOR (5X11) 3 Rp24.000
5 17191-73R00-000 BRACKET 1 Rp112.000
6 17760-73R00-000 SHOROUD ASSY,FAN 1 Rp155.000
7 08316-2005A-000 NUT 1 Rp13.000
8 17700-73R00-000 RADIATOR ASSY 1 Rp1.567.000
9 17751-61A00-000 .VALVE ASSY,STOP 1 Rp13.000
10 17759-82K00-000 .O-RING 1 Rp7.500
11 DISCONTINUE
SUB: 17920B75F00N000		 .CAP,RADIATOR (1.1) 1 -
12 17861-52R00-000 BRACKET,RDTR SUPPORT UPPER R 1 Rp31.000
13 17861-72R00-000 BRACKET,RDTR SUPPORT UPPER L 1 Rp33.500
14 17878-77MA0-000 MOUNT, RADIATOR SUPPORT LOWER 2 Rp12.500
15 17879-73R00-000 MOUNT,RADIATOR SUPPORT UPPER 2 Rp8.000
16 17931-73R00-000 TANK ASSY 1 Rp128.000
17 17932-76G00-000 CAP,WTR RSVR TANK 1 Rp5.500
18 17934-73R00-000 HOSE,RSV TANK 1 Rp22.000
19 09122-76003-000 SCREW (6X16) 4 Rp15.000
20 09352-70L04-120 HOSE,RDTR TO RSV TANK 1 Rp6.500
21 01550-0612A-000 BOLT (6X12) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
