All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 101A SHORT ENGINE ASSY105A ENGINE GASKET SET110A CYLINDER HEAD COVER111A CYLINDER HEAD112A CYLINDER115A OIL PAN120A CRANKSHAFT (N_EASS)120B CRANKSHAFT (W_EASS)122A CAM SHAFT/VALVE124A CAM CHAIN128A ENGINE MOUNTING (5MT)128B ENGINE MOUNTING (4AT)130A INTAKE MANIFOLD142A THROTTLE BODY150A AIR CLEANER154A EXHAUST MANIFOLD156A MUFFLER157A DELIVERY PIPE160A FUEL PUMP176A OIL PUMP (N_EASS)176B OIL PUMP (W_EASS)180A WATER PUMP (N_EASS)180B WATER PUMP (W_EASS)184A RADIATOR (5MT)184B RADIATOR (4AT)188A WATER HOSE (5MT:(GA,GL))188B WATER HOSE (4AT:GL)188C WATER HOSE (5MT:(GX,SS))188D WATER HOSE (4AT:(GX,SS))190A EMISSION CONTROL199A LABEL

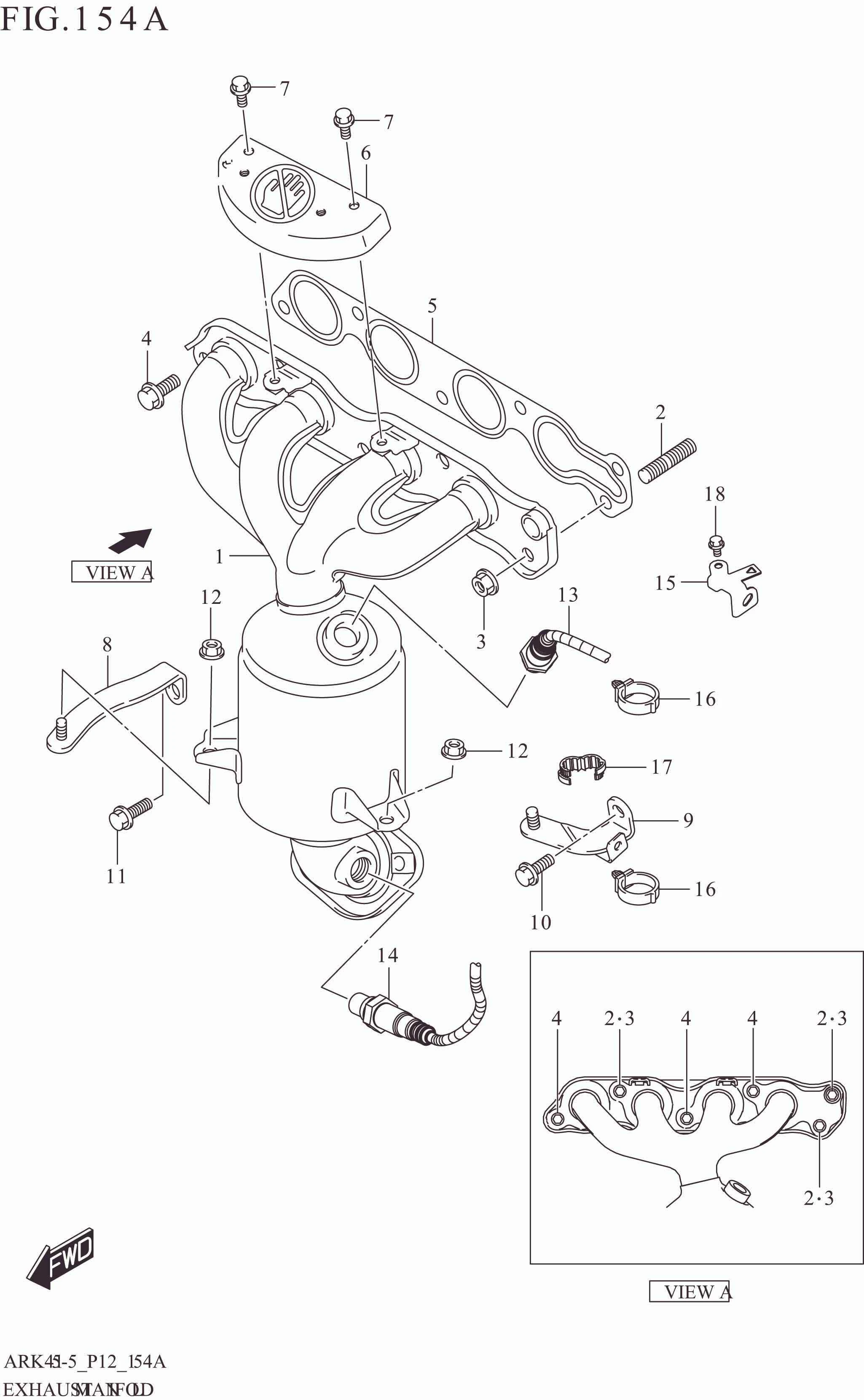

154A EXHAUST MANIFOLD

154A EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 14110-73R10-000 MANIFOLD ,EXH 1 Rp5.619.500
2 14118-63J00-000 STUD BOLT,EXH MANF 3 Rp21.500
3 08316-1010A-000 NUT 3 Rp3.500
4 01550-1020A-000 BOLT (10X20) 3 Rp21.000
5 14140-59R00-000 GASKET,EXH MANF 1 Rp43.000
6 14121-73KB0-000 PLATE,CAUTION 1 Rp20.500
7 01550-0612C-000 BOLT (6X12) 2 Rp19.500
8 14271-73K00-000 STIFFENER,EXH MANF 1 Rp20.500
9 14272-73KA0-000 STIFFENER,EXH MANF NO.2 1 Rp23.500
10 01550-0820A-000 BOLT (8X20) 1 Rp5.500
11 01550-1020A-000 BOLT (10X20) 1 Rp21.000
12 08316-1008A-000 NUT 2 Rp3.500
13 18213-73R00-000 SENSOR,OXYGEN 1 Rp376.000
14 18213-73R10-000 SENSOR,OXYGEN RR 1 Rp400.500
15 18214M68P00-000 BRACKET,OXYGEN SNSR 1 Rp6.500
16 09403-12404-000 CLAMP 2 Rp13.500
17 09408-00258-000 CLAMP 1 Rp14.500
18 01550-0612A-000 BOLT (6X12) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
