All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 101A SHORT ENGINE ASSY105A ENGINE GASKET SET110A CYLINDER HEAD COVER111A CYLINDER HEAD112A CYLINDER115A OIL PAN120A CRANKSHAFT (N_EASS)120B CRANKSHAFT (W_EASS)122A CAM SHAFT/VALVE124A CAM CHAIN128A ENGINE MOUNTING (5MT)128B ENGINE MOUNTING (4AT)130A INTAKE MANIFOLD142A THROTTLE BODY150A AIR CLEANER154A EXHAUST MANIFOLD156A MUFFLER157A DELIVERY PIPE160A FUEL PUMP176A OIL PUMP (N_EASS)176B OIL PUMP (W_EASS)180A WATER PUMP (N_EASS)180B WATER PUMP (W_EASS)184A RADIATOR (5MT)184B RADIATOR (4AT)188A WATER HOSE (5MT:(GA,GL))188B WATER HOSE (4AT:GL)188C WATER HOSE (5MT:(GX,SS))188D WATER HOSE (4AT:(GX,SS))190A EMISSION CONTROL199A LABEL

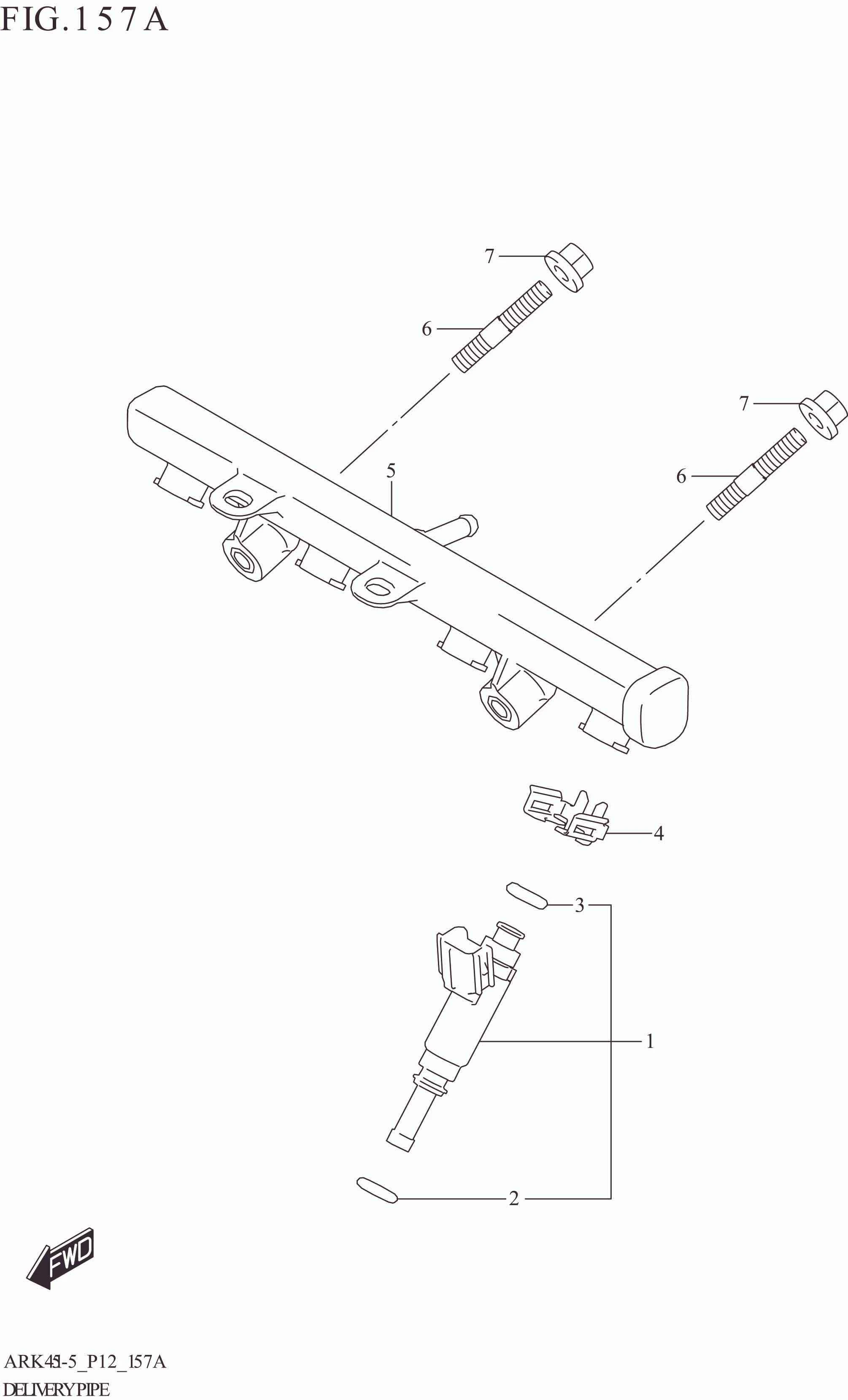

157A DELIVERY PIPE

157A DELIVERY PIPE
No No. Part Description Qty Price Per Pcs Remarks
1 15710-70R00-000 INJECTOR ASSY,FUEL 4 Rp238.000
2 15716-68P01-000 .O-RING 4 Rp48.000
3 15717M68P00-000 .O-RING 4 Rp18.500
4 15715-82M00-000 CLIP,FUEL INJECTOR 4 Rp30.500
5 15730-73R00-000 PIPE,FUEL DELIVERY 1 Rp207.500
6 01421-0830A-000 BOLT,STUD (8X30) 2 Rp16.500
7 08316-1008A-000 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
