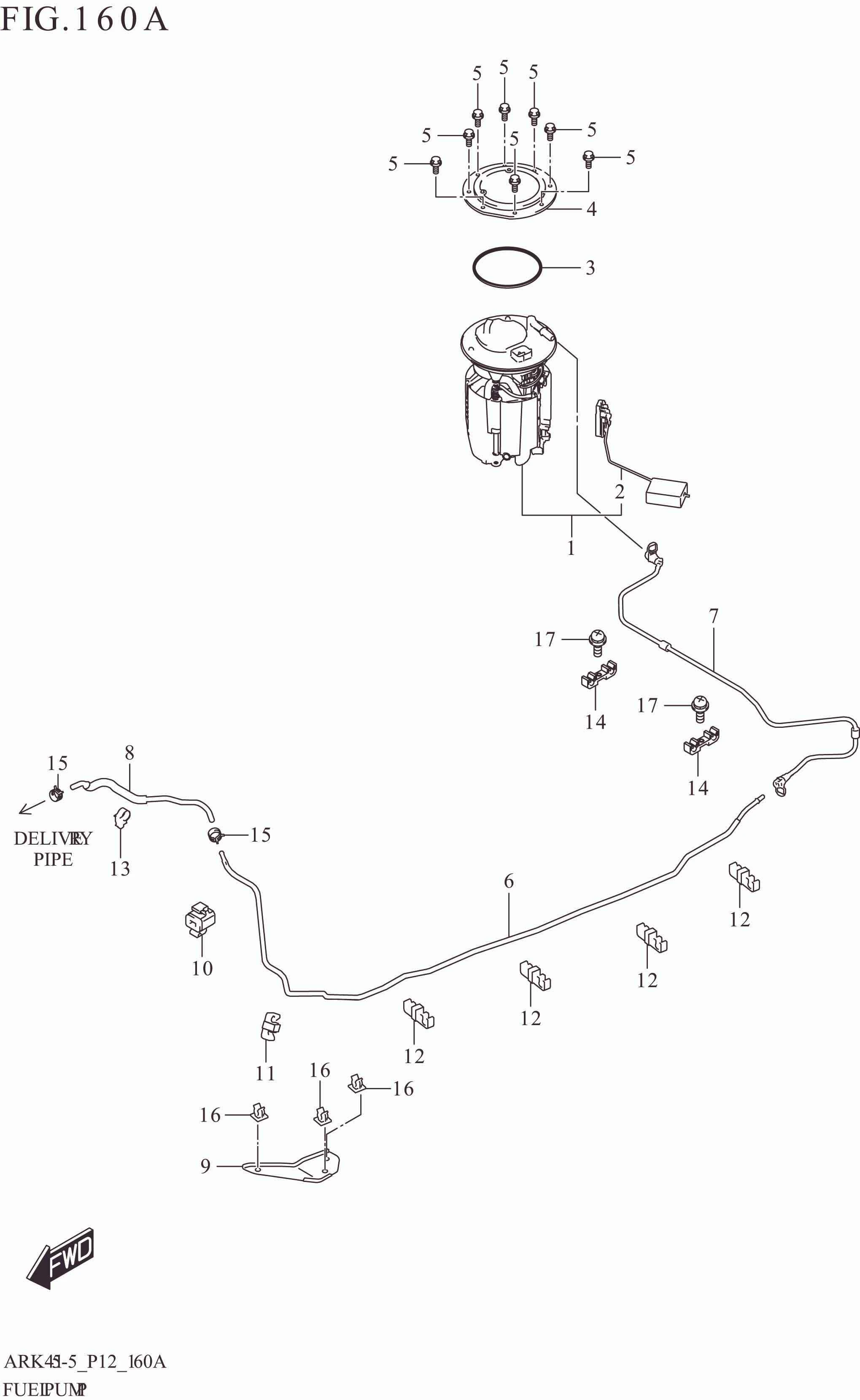

160A FUEL PUMP

160A FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-73R02-000
SUB: 15100-73R01-000		 PUMP ASSY,FUEL 1 Rp1.218.000
2 34810-73R00-000 .GAUGE ASSY,FUEL SENDER 1 Rp231.000
3 15111-77M00-000 GASKET,FUEL PUMP 1 Rp34.000
4 15121M61J00-000 PLATE,FUEL PUMP 1 Rp23.500
5 01550-0610B-000 BOLT (6X10) 8 Rp3.000
6 15811-73R00-000 PIPE,FUEL FEED 1 Rp161.500
7 15812-73R00-000 PIPE,FUEL 1 Rp216.500
8 15815M68PA0-000 HOSE,FUEL 1 Rp366.500
9 15873-52R00-000 PROTECTOR,FUEL PIPE 1 Rp13.500
10 15882M55K00-000 CLAMP,FUEL PIPE 1 Rp17.500
11 15892M55R00-000 CLAMP,FUEL PIPE 1 Rp16.000
12 15893M68P00-000 CLAMP,FUEL PIPE 4 Rp16.500
13 15895M68P00-000 CLAMP,FUEL HOSE 1 Rp12.500
14 15896M73R00-000 CLAMP,FUEL PIPE 2 Rp10.000
15 09401-11433-000 CLIP 2 Rp25.500
16 DISCONTINUE
SUB: 09403-10324-000		 CLAMP 3 -
17 02142-0512A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
