All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 101A SHORT ENGINE ASSY105A ENGINE GASKET SET110A CYLINDER HEAD COVER111A CYLINDER HEAD112A CYLINDER115A OIL PAN120A CRANKSHAFT (N_EASS)120B CRANKSHAFT (W_EASS)122A CAM SHAFT/VALVE124A CAM CHAIN128A ENGINE MOUNTING (5MT)128B ENGINE MOUNTING (4AT)130A INTAKE MANIFOLD142A THROTTLE BODY150A AIR CLEANER154A EXHAUST MANIFOLD156A MUFFLER157A DELIVERY PIPE160A FUEL PUMP176A OIL PUMP (N_EASS)176B OIL PUMP (W_EASS)180A WATER PUMP (N_EASS)180B WATER PUMP (W_EASS)184A RADIATOR (5MT)184B RADIATOR (4AT)188A WATER HOSE (5MT:(GA,GL))188B WATER HOSE (4AT:GL)188C WATER HOSE (5MT:(GX,SS))188D WATER HOSE (4AT:(GX,SS))190A EMISSION CONTROL199A LABEL

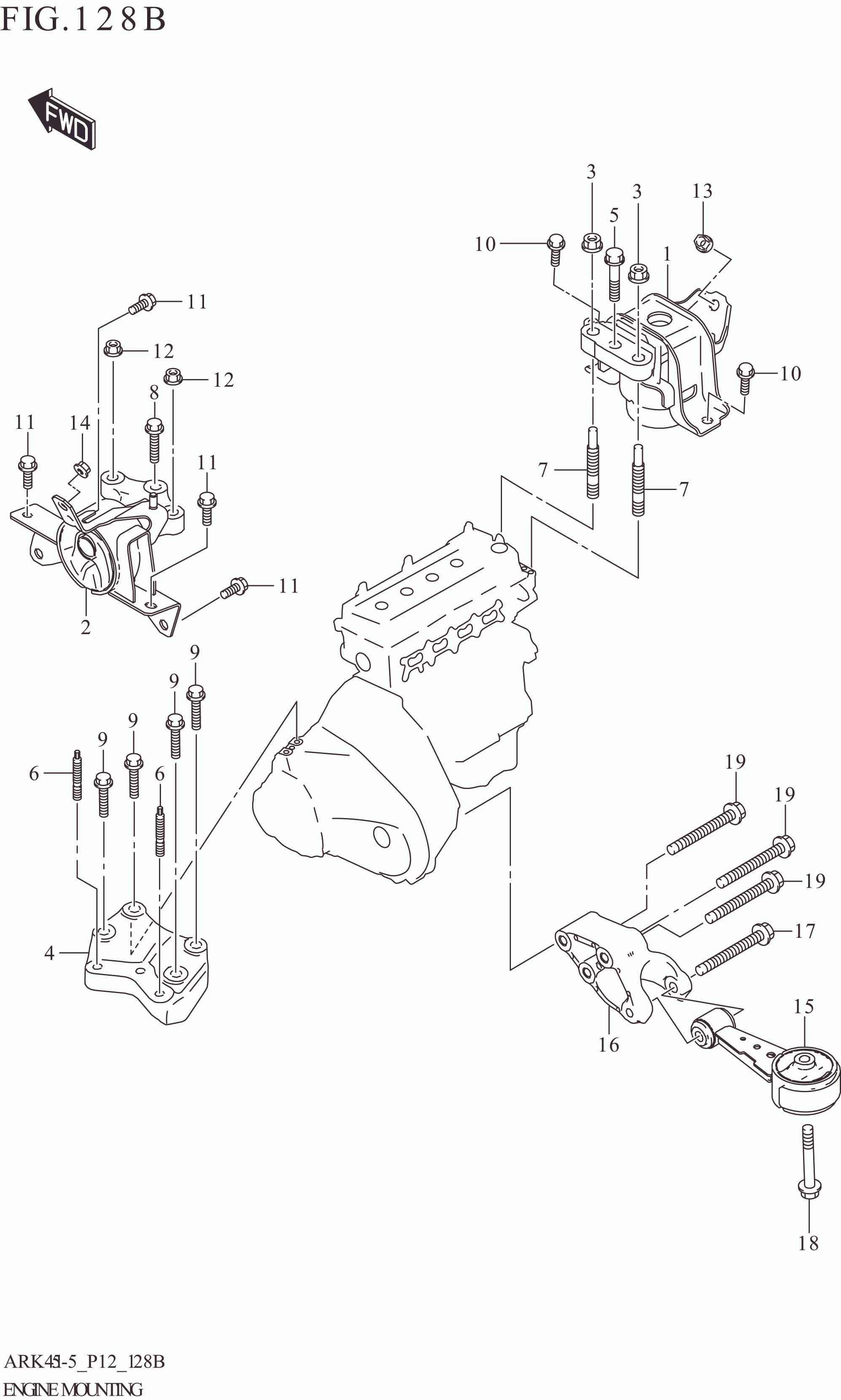

128B ENGINE MOUNTING (4AT)

128B ENGINE MOUNTING (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 11610-73R01-000 MOUNTING,ENG RH 1 Rp573.000
2 11620-73R11-000 MOUNTING,ENG LH 1 Rp501.500
3 11645-68M00-000 NUT,ENG RH MTG BRKT 2 Rp25.500
4 11651-73R10-000 BRACKET,ENG MTG LH 1 Rp335.500
5 09103-12134-000 BOLT (12X45) 1 Rp30.500
6 09108-10165-000 BOLT,STUD 2 Rp32.500
7 09108-12020-000 BOLT,STUD 2 Rp14.000
8 01550-1040A-000 BOLT (10X40) 1 Rp7.000
9 01550-1040A-000 BOLT (10X40) 4 Rp7.000
10 01551-1025A-000 BOLT (10X25) 2 Rp29.000
11 01551-1025A-000 BOLT (10X25) 4 Rp29.000
12 08316-1010A-000 NUT 2 Rp3.500
13 08316-1010A-000 NUT 1 Rp3.500
14 08316-1010A-000 NUT 1 Rp3.500
15 11910-73R10-000 ROD,ENG RR TRQ 1 Rp211.000
16 11941-73R10-000 BRACKET,ENG RR TRQ ROD NO.1 1 Rp240.000
17 09103-12138-000 BOLT (12X90) 1 Rp34.500
18 09113-12009-000 BOLT (12X90) 1 Rp51.500
19 01550-1075C-000 BOLT 3 Rp30.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
