All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 101A SHORT ENGINE ASSY105A ENGINE GASKET SET110A CYLINDER HEAD COVER111A CYLINDER HEAD112A CYLINDER115A OIL PAN120A CRANKSHAFT (N_EASS)120B CRANKSHAFT (W_EASS)122A CAM SHAFT/VALVE124A CAM CHAIN128A ENGINE MOUNTING (5MT)128B ENGINE MOUNTING (4AT)130A INTAKE MANIFOLD142A THROTTLE BODY150A AIR CLEANER154A EXHAUST MANIFOLD156A MUFFLER157A DELIVERY PIPE160A FUEL PUMP176A OIL PUMP (N_EASS)176B OIL PUMP (W_EASS)180A WATER PUMP (N_EASS)180B WATER PUMP (W_EASS)184A RADIATOR (5MT)184B RADIATOR (4AT)188A WATER HOSE (5MT:(GA,GL))188B WATER HOSE (4AT:GL)188C WATER HOSE (5MT:(GX,SS))188D WATER HOSE (4AT:(GX,SS))190A EMISSION CONTROL199A LABEL

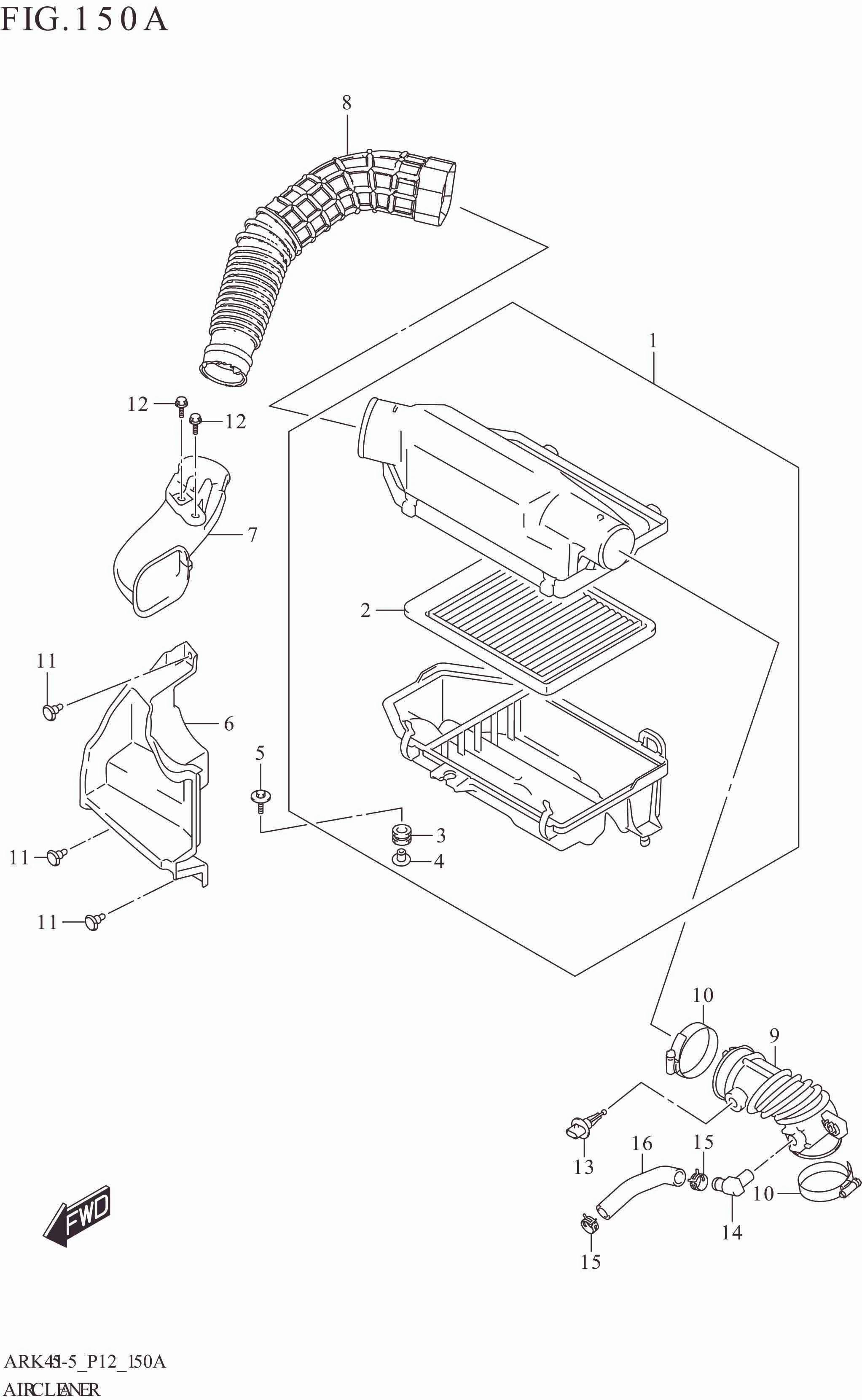

150A AIR CLEANER

150A AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-73R00-000 CLEANER ASSY,AIR 1 Rp256.500
2 13780-73R00-000 .ELEMENT,AIR CLEANER 1 Rp119.000
3 13723-73R00-000 .GROMMET,AIR CLNR 1 Rp11.000
4 13724-73R00-000 .COLLAR,AIR CLEANER 1 Rp11.500
5 09136-06141-000 SCREW (6X25) 1 Rp17.000
6 13760-72R00-000 SHROUD,AIR INTAKE 1 Rp45.500
7 13765-72R01-000 PIPE,AIR CLNR SUCT 1 Rp90.000
8 13766-52R00-000 HOSE,AIR CLNR SUCT 1 Rp69.500
9 13881M68P00-000 HOSE,AIR CLNR OUT 1 Rp86.000
10 09402-70503-000 CLAMP (ID:69) 2 Rp91.500
11 09409-08010-000 CLIP 3 Rp5.500
12 02162-0616A-000 SCREW (6X16) 2 Rp3.000
13 13650-77M00-000 SENSOR,INLET AIR TEMP 1 Rp80.000
14 09367-14004-000 PIPE 1 Rp59.500
15 09401-18414-000 CLIP 2 Rp23.500
16 11191-73R00-000 HOSE,BREATHER 1 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
