All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 101A SHORT ENGINE ASSY105A ENGINE GASKET SET110A CYLINDER HEAD COVER111A CYLINDER HEAD112A CYLINDER115A OIL PAN120A CRANKSHAFT (N_EASS)120B CRANKSHAFT (W_EASS)122A CAM SHAFT/VALVE124A CAM CHAIN128A ENGINE MOUNTING (5MT)128B ENGINE MOUNTING (4AT)130A INTAKE MANIFOLD142A THROTTLE BODY150A AIR CLEANER154A EXHAUST MANIFOLD156A MUFFLER157A DELIVERY PIPE160A FUEL PUMP176A OIL PUMP (N_EASS)176B OIL PUMP (W_EASS)180A WATER PUMP (N_EASS)180B WATER PUMP (W_EASS)184A RADIATOR (5MT)184B RADIATOR (4AT)188A WATER HOSE (5MT:(GA,GL))188B WATER HOSE (4AT:GL)188C WATER HOSE (5MT:(GX,SS))188D WATER HOSE (4AT:(GX,SS))190A EMISSION CONTROL199A LABEL

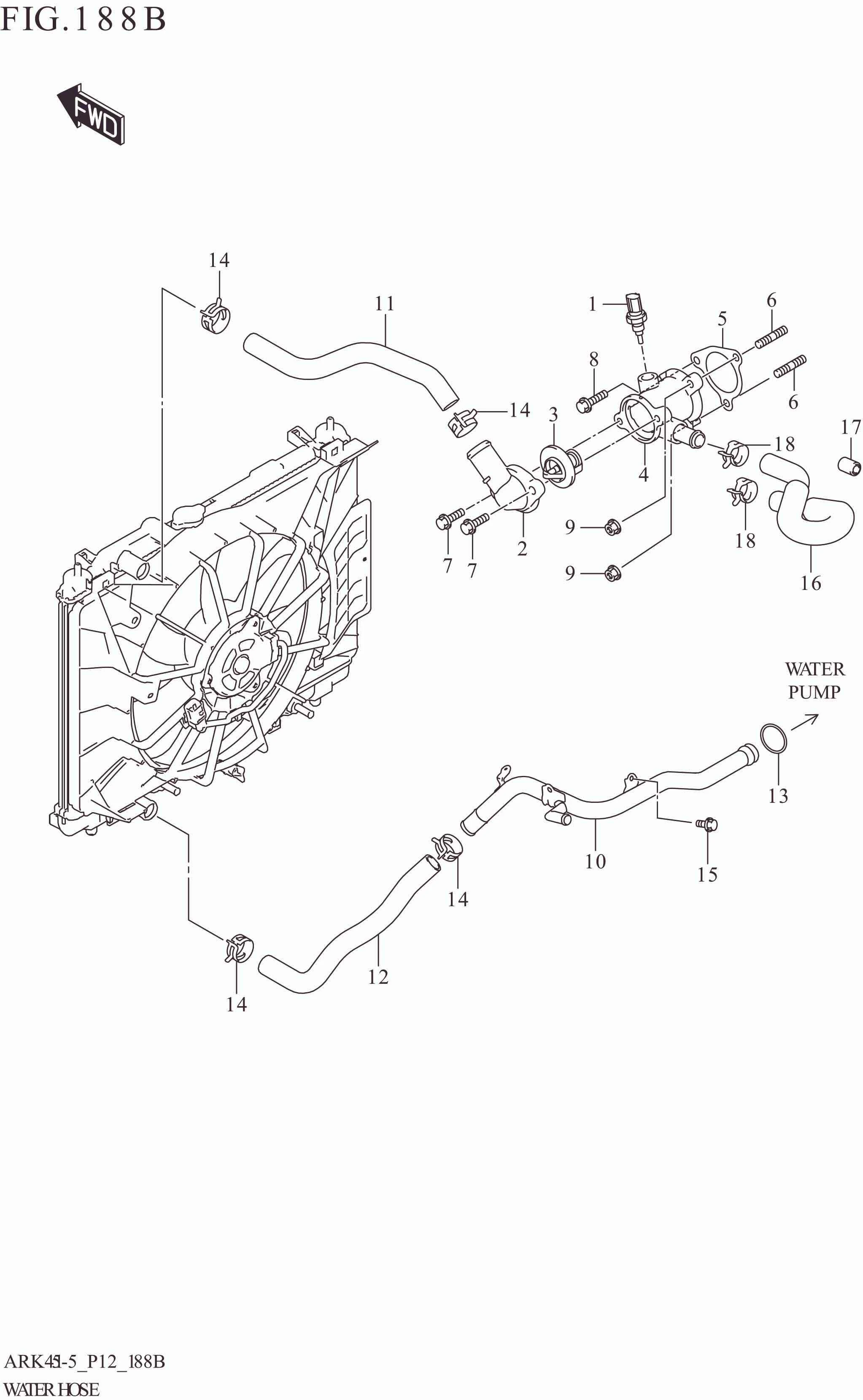

188B WATER HOSE (4AT:GL)

188B WATER HOSE (4AT:GL)
No No. Part Description Qty Price Per Pcs Remarks
1 13650-73H00-000 SENSOR,WATER TEMP 1 Rp368.000
2 17561-68P00-000 CAP,WTR THERMO 1 Rp73.000
3 17670-50G11-000
SUB: 17670-50G10-000		 THERMOSTAT,WATER 88 DEG (88?C) 1 Rp215.500
4 17690M68P00-000 CASE,THERMO 1 Rp153.500
5 17699-67LA0-000 GASKET,THERMO CASE 1 Rp13.500
6 01421-0825A-000 BOLT,STUD (8X25) 2 Rp13.000
7 01550-0825A-000 BOLT (8X25) 2 Rp3.500
8 01550-0830A-000 BOLT (8X30) 1 Rp4.000
9 08316-1008A-000 NUT 2 Rp3.500
10 17830-73R00-000 PIPE,WTR INLET 1 Rp171.000
11 17852-73R00-000 HOSE,RDTR INLET 1 Rp48.500
12 17854-73R00-000 HOSE,RDTR OUTLET 1 Rp43.500
13 09280-28008-000 O-RING (D:3.5,ID:27.7) 1 Rp2.500
14 09401-30002-000 CLIP 4 Rp42.000
15 01550-0612A-000 BOLT (6X12) 1 Rp3.500
16 17874-73R00-000 HOSE,HEATER CIRCULATION 1 Rp35.000
17 17879M54LA0-000 SPACER,HTR HOSE 1 Rp10.500
18 09401-21415-000 CLIP 2 Rp27.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
