All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 101A SHORT ENGINE ASSY105A ENGINE GASKET SET110A CYLINDER HEAD COVER111A CYLINDER HEAD112A CYLINDER115A OIL PAN120A CRANKSHAFT (N_EASS)120B CRANKSHAFT (W_EASS)122A CAM SHAFT/VALVE124A CAM CHAIN128A ENGINE MOUNTING (5MT)128B ENGINE MOUNTING (4AT)130A INTAKE MANIFOLD142A THROTTLE BODY150A AIR CLEANER154A EXHAUST MANIFOLD156A MUFFLER157A DELIVERY PIPE160A FUEL PUMP176A OIL PUMP (N_EASS)176B OIL PUMP (W_EASS)180A WATER PUMP (N_EASS)180B WATER PUMP (W_EASS)184A RADIATOR (5MT)184B RADIATOR (4AT)188A WATER HOSE (5MT:(GA,GL))188B WATER HOSE (4AT:GL)188C WATER HOSE (5MT:(GX,SS))188D WATER HOSE (4AT:(GX,SS))190A EMISSION CONTROL199A LABEL

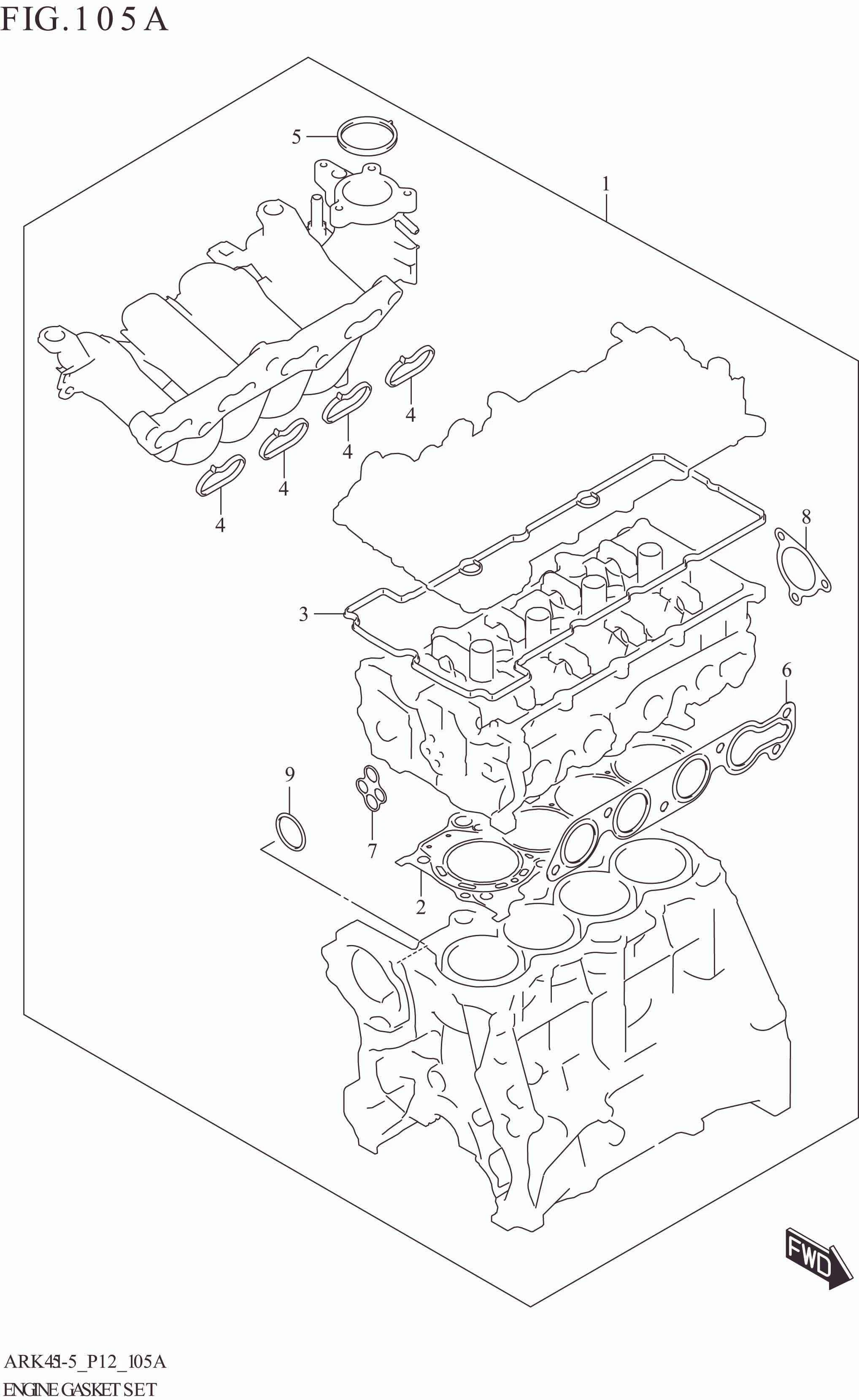

105A ENGINE GASKET SET

105A ENGINE GASKET SET
No No. Part Description Qty Price Per Pcs Remarks
1 11400-59820-000 GASKET SET,ENGINE 1 Rp354.500
2 11141-73R00-000 .GASKET,CYL HEAD 1 Rp133.500
3 11189-62R10-000 .GASKET,CYL HEAD COVER 1 Rp50.500
4 13118-67LB0-000 .GASKET, INTK MANF 4 Rp10.500
5 13421-67LB0-000 .GASKET,THROTTLE BODY 1 Rp15.000
6 14140-59R00-000 .GASKET,EXH MANF 1 Rp43.000
7 16118-77M00-000 .O RING, OCV 1 Rp9.500
8 17699-67LA0-000 .GASKET,THERMO CASE 1 Rp13.500
9 09280-28008-000 .O-RING (D:3.5,ID:27.7) 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
