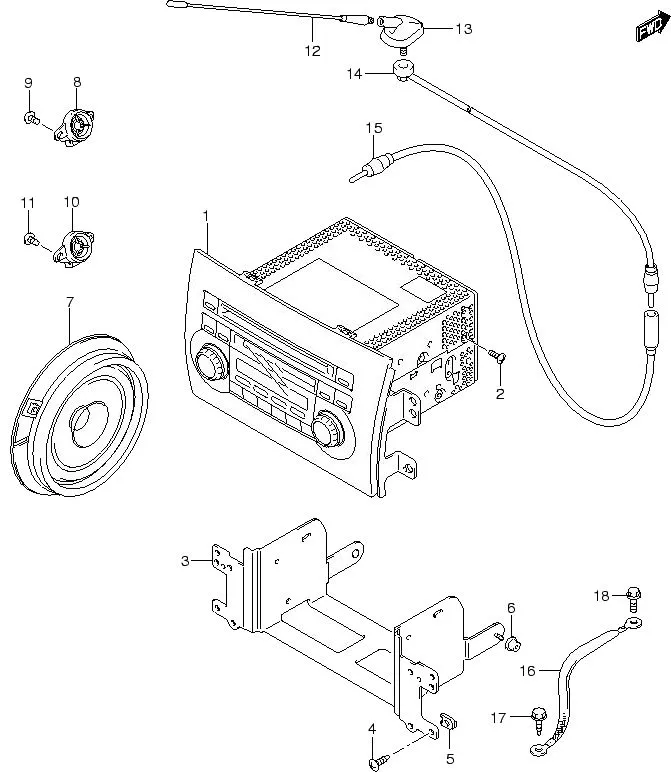

FIG.60 RADIO

FIG.60 RADIO
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 39101-80J30-CZT		 TUNER ASSY (AM/FM,CD,9KHZ) 1 -
2 02142-0508A-000
SUB: 02142-0506A-000		 SCREW 6 Rp3.500
3 DISCONTINUE
SUB: 39321-79J00-000		 BRACKET, TUNER 1 -
4 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
5 09148-05045-000
SUB: 09148B05045N000		 NUT 4 Rp4.000
6 34955M54G10-000 BUSH, RADIO BRKT 2 Rp6.500
7 DISCONTINUE
SUB: 39102B63J50N000		 SPEAKER ASSY 4 -
8 DISCONTINUE
SUB: 39102B79J00N000		 SPEAKER ASSY, TWEETER FR 2 -
9 03541-0410A-000 SCREW 4 Rp11.000
10 DISCONTINUE
SUB: 39102B79J10N000		 SPEAKER ASSY, TWEETER RR 2 -
11 03541-0410A-000 SCREW 4 Rp11.000
12 39251-81JA0-000 ROD, ANTENNA 1 Rp195.000
13 39253-81JA2-000
SUB: 39253-81JA0-000		 BASE, ANTENNA 1 Rp896.000
14 39271-80J10-000 FEEDER, ANT ROOF 1 Rp349.000
15 39270-80J00-000 FEEDER, ANT I/P 1 Rp300.500
16 39312-78F10-000
SUB: 39312B78F10N000		 WIRE, NOISE SUPPR 1 Rp47.500
17 09115-06005-000 BOLT (6X16) 1 Rp14.000
18 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 1 Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
