SX4 CBU

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.46 ENGINE ELECTRICAL FIG.47 STARTING MOTOR FIG.48 GENERATOR FIG.49 BATTERY FIG.50 SPEEDOMETER FIG.51 HEADLAMP FIG.52 FOG LAMP FIG.53 REAR LAMP / ROOM LAMP FIG.54 WIRING HARNESS (RHD)FIG.55 ELECTRICAL CONTROL FIG.56 LOCK SET FIG.57 FRONT WINDOW WIPER FIG.58 WINDOW WASHER FIG.59 REAR WINDOW WIPER FIG.60 RADIO

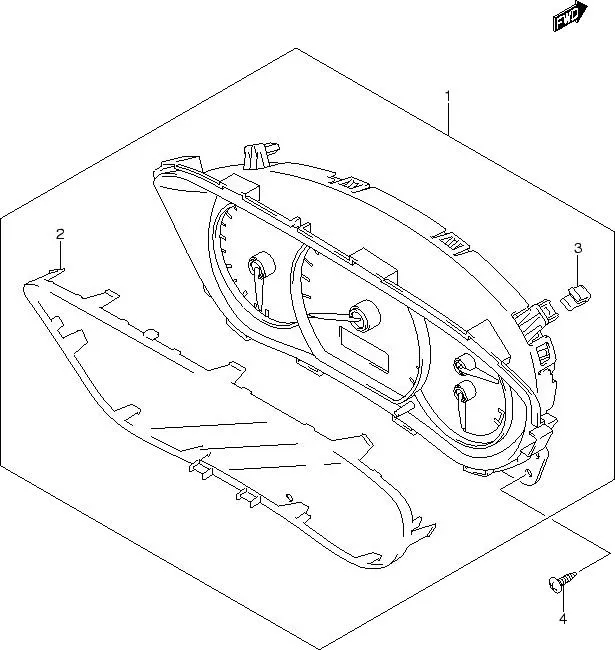

FIG.50 SPEEDOMETER

FIG.50 SPEEDOMETER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	34102-80JN1-000 SUB: 34102-80JN0-000	SPEEDOMETER ASSY (KILO)	1	Rp7.167.500	AT
1-2	34102-80JG1-000 SUB: 34102-80JG0-000	SPEEDOMETER ASSY (KILO)	1	Rp7.246.000	MT
2	DISCONTINUE SUB: 34112-79J00-000	•GLASS, METER WINDOW	1	-
3	09409-08326-000 SUB: 09409B08326N000	•CLIP, SPEEDOMETER	2	Rp8.000
4	03541-0516A-000 SUB: 03541B0516AN000	SCREW, SPEEDOMETER	2	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
