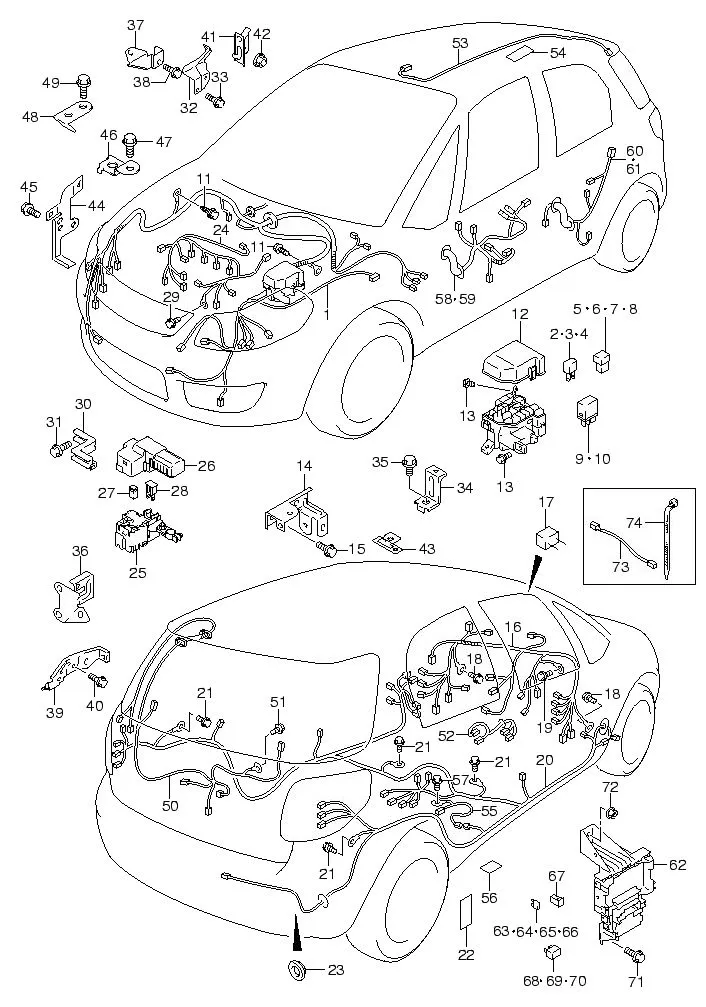

FIG.54 WIRING HARNESS (RHD)

FIG.54 WIRING HARNESS (RHD)
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 36610-80JL0-000		 HARNESS ASSY, MAIN 1 - AT
1-1 36610-80JK1-000
SUB: 36610-80JK0-000		 HARNESS ASSY, MAIN 1 Rp7.790.500 MT
2 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 0 Rp12.000
3 09481-20501-000 •FUSE (20A) 2 Rp14.500
4 09481-30501-000
SUB: 09481M30501-000		 •FUSE (30A) 0 Rp13.000
5 09481-30401-000 •FUSE (30A) 0 Rp42.000
6 09481-40401-000 •FUSE (40A) 1 Rp49.500
7 09481-50401-000
SUB: 09481M50401-000		 •FUSE (50A) 1 Rp50.500
8 09481M60401-000 •FUSE (60A) 1 Rp66.000
9 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, STARTER 1 Rp47.000
10 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, RADIATOR 1 Rp47.000
11 09115-06005-000 BOLT (6X16) 2 Rp14.000
12 36717-80J00-000 COVER, RELAY BOX 1 Rp247.000
13 02162-0616A-000
SUB: 02162-0616C-000		 BOLT, RELAY BOX 2 Rp3.000
14 DISCONTINUE
SUB: 36614B79J10N000		 BRACKET, MAIN HARN 1 -
15 01551-0812A-000 BOLT, HARN BRKT 2 Rp18.500
16 DISCONTINUE
SUB: 36620-80JP1-000		 HARNESS ASSY, I/P 1 -
17 DISCONTINUE
SUB: 36639-74F00-000		 •DIODE 2 -
18 09115-06005-000 BOLT (6X16) 2 Rp14.000
19 02162-0612A-000 BOLT 1 Rp11.000
20 DISCONTINUE
SUB: 36930-80J80-000		 HARNESS ASSY, FLOOR 1 -
21 09115-06005-000 BOLT (6X16) 4 Rp14.000
22 DISCONTINUE
SUB: 84761-50X50-000		 SEAL, HARNESS HOLE 2 -
23 09250-25007-000 CAP, HARNESS HOLE 1 Rp10.500
24-1 36650-80JJ0-000 HARNESS ASSY, ENG 1 Rp8.265.500 AT
24-2 DISCONTINUE
SUB: 36650-80JR0-000		 HARNESS ASSY, ENG 1 - MT
25 36740-80J00-000 •BOX ASSY, MAIN FUSE 1 Rp1.367.000
26 36694-80J00-000 ••COVER, BATTERY TERMINAL 1 Rp153.500
27 09481-50401-000
SUB: 09481M50401-000		 ••FUSE (50A) 2 Rp50.500
28 09481-80301-000
SUB: 09481M80301-000		 ••FUSE (80A) 1 Rp74.000
29 DISCONTINUE
SUB: 01550B0612AN000		 BOLT, ENG HARNESS GND 1 -
30 DISCONTINUE
SUB: 36651B63J00N000		 BRACKET, ENG HARNESS T/M 1 - MT
31 01550-0812A-000
SUB: 01550B0812AN000		 BOLT, HARN BRACKET T/M MT 1 Rp3.500 MT
32 DISCONTINUE
SUB: 36651B79J10N000		 BRACKET, ENG HARNESS BODY 1 - AT
33 02162-0612A-000 BOLT, HARN BRACKET BODY 2 Rp11.000 AT
34 DISCONTINUE
SUB: 36651B60J00N000		 BRACKET, ENG HARNESS BLOCK 1 -
35 01550-1025A-000
SUB: 01550B1025AN000		 BOLT, BLOCK BRKT 1 Rp3.500
36 DISCONTINUE
SUB: 36651B79J30N000		 BRACKET, O2 SNSR CONN 1 -
37 DISCONTINUE
SUB: 36651B79J50N000		 BRACKET, ENG HARNESS T/M 1 - AT
38 01550-0816A-000
SUB: 01550B0816AN000		 BOLT, HARN BRACKET 1 Rp6.000 AT
39 DISCONTINUE
SUB: 36651-79J60-000		 BRACKET, ENG HARNESS HOOK 1 -
40 DISCONTINUE
SUB: 01550B0612AN000		 BOLT, HARN BRACKET HOOK 1 -
41 DISCONTINUE
SUB: 36651B79J70N000		 BRACKET, ENG HARNESS T/M 1 - AT
42 08316-1006A-000
SUB: 08316B1006AN000		 NUT, HARN BRACKET T/M 1 Rp2.000 AT
43 DISCONTINUE
SUB: 36652B60J00N000		 BRACKET, ENG HARN 1 -
44 DISCONTINUE
SUB: 36653B80G00N000		 BRACKET, O2 CONN 1 -
45 DISCONTINUE
SUB: 01550B0612AN000		 BOLT, O2 CONN BRACKET 1 -
46 DISCONTINUE
SUB: 36655B54G50N000		 BRACKET, ENG HARNESS T/M 1 - AT
47 01550-0812A-000
SUB: 01550B0812AN000		 BOLT, HARN BRACKET T/M 1 Rp3.500 AT
48 DISCONTINUE
SUB: 36995B77E21N000		 BRACKET, ENG HARNESS OP SW 1 -
49 01550-0816A-000
SUB: 01550B0816AN000		 BOLT, OP WIRE BRKT 1 Rp6.000
50 DISCONTINUE
SUB: 36680-80J00-000		 HARNESS ASSY, BACK DOOR 1 -
51 09115-06005-000 BOLT, BACK DOOR GND 1 Rp14.000
52 36615-80J00-000 WIRE, EPS 1 Rp838.500
53 36820-80J00-000 WIRE, DOME LAMP 1 Rp245.000
54 36930M82000-000
SUB: 36930M82010-000		 COVER, DOME LAMP WIRE 5 Rp6.500
55 36840-80J00-000 WIRE, FUEL PUMP 1 Rp400.500
56 77151-82000-000
SUB: 77151B82000N000		 SEAL, FUEL WIRE HOLE 1 Rp7.000
57 09103-06265-000
SUB: 09103-06168-000		 BOLT, FUEL WIRE GND 1 Rp21.500
58 DISCONTINUE
SUB: 36756-80J20-000		 WIRE, FR DOOR DRIVER SIDE 1 -
59 DISCONTINUE
SUB: 36757-80J20-000		 WIRE, FR DOOR PASSENGER SIDE 1 -
60 DISCONTINUE
SUB: 36751-80J10-000		 WIRE, RR DOOR RH 1 -
61 DISCONTINUE
SUB: 36751-80JB0-000		 WIRE, RR DOOR LH 1 -
62 36780-80J10-000 BOX SET, J/B & BODY CONT MDL 1 Rp4.318.000
63 09481-10501-000
SUB: 09481M10501-000		 •FUSE (10A) 7 Rp12.000
64 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 11 Rp12.000
65 09481-20501-000 •FUSE (20A) 3 Rp14.500
66 09481-30501-000
SUB: 09481M30501-000		 •FUSE (30A) 1 Rp13.000
67 09481-30401-000 •FUSE (30A) 1 Rp42.000
68 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, HEATER 1 Rp47.000
69 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, HORN 1 Rp47.000
70 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, RR DEFOGGER 1 Rp47.000
71 01551-0816C-000 BOLT, J/B 1 Rp13.500
72 08316-1008A-000
SUB: 08316B1008AN000		 NUT, J/B 1 Rp3.500
73 36691-79J00-000 WIRE, AIR BAG PASSENGER 1 Rp667.500 OPT
74 09407-18402-000
SUB: 09407B18402N000		 CLAMP 4 Rp8.000 OPT
