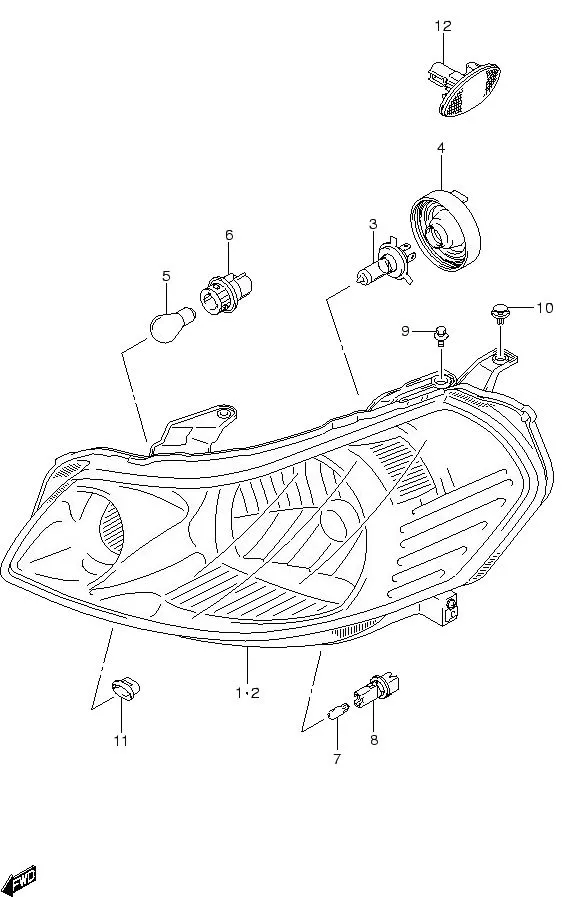

FIG.51 HEADLAMP

FIG.51 HEADLAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35120-80J31-000
SUB: 35120-80J30-000		 UNIT, HEADLAMP RH 1 Rp3.312.000
2 35320-80J31-000
SUB: 35320-80J30-000		 UNIT, HEADLAMP LH 1 Rp3.312.000
3 09471-12182-000
SUB: 09471B12182N000		 BULB (12V60/55W,H4) 2 Rp70.000
4 35179-64G00-000
SUB: 35179B64G00N000		 COVER, SOCKET 2 Rp27.500
5 09471-12186-000
SUB: 09471B12186N000		 BULB (12V21W) (AMBER) 2 Rp22.000
6 36118-77A00-000 SOCKET, TURN LAMP 2 Rp73.500
7 09471-12216-000
SUB: 09471B12216N000		 BULB (12V 5W) 2 Rp15.000
8 35118-76F00-000 SOCKET, POSITION LAMP 2 Rp103.500
9 09122-76006-000 SCREW (6X16) 6 Rp13.000
10 09409-08327-000 CLIP 2 Rp15.000
11 35153-75H00-000 GROMMET, HEADLAMP 2 Rp18.500
12 36410-61J01-000
SUB: 36410-63J00-000		 LAMP ASSY, SIDE TURN SIG 2 Rp56.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
