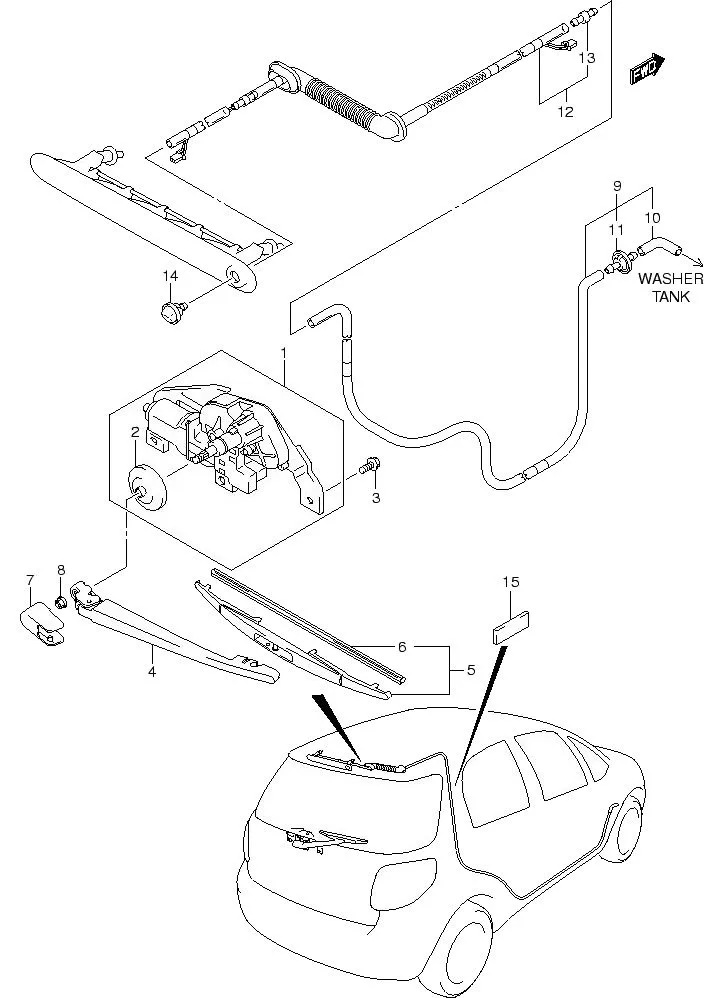

FIG.59 REAR WINDOW WIPER

FIG.59 REAR WINDOW WIPER
No No. Part Description Qty Price Per Pcs Remarks
1 38810-81K00-000
SUB: 38810B80J00N000		 WIPER ASSY, REAR WINDSHIELD 1 Rp679.000
2 38274-54G00-000
SUB: 38274B54G00N000		 •CAP, RR WIPER PIVOT 1 Rp10.500
3 09115-06005-000 BOLT (6X16) 2 Rp14.000
4 38821-63J00-000 ARM ASSY, REAR WIPER 1 Rp353.000
5 38340-63J00-000 BLADE ASSY, REAR WIPER 1 Rp173.500
6 38346-63J00-000 •BLADE 1 Rp104.500
7 38315-54G00-000 COVER 1 Rp48.500
8 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
9 38835-80J00-000 HOSE ASSY, RR WASHER FLOOR 1 Rp297.000
10 38459-50J00-000 •HOSE, WASHER (L:810) 1 Rp56.500
11 38496-54G00-000 •JOINT, WASHER HOSE 1 Rp43.500
12 38834-80J00-000 HOSE ASSY, RR WASHER BACK DOOR 1 Rp303.000
13 38496-56B00-000 •CONNECTOR 1 Rp33.500
14 38840-63J00-000
SUB: 38840B63J00N000		 NOZZLE ASSY, REAR WASHER 1 Rp30.500
15 36930M82000-000
SUB: 36930M82010-000		 COVER, RR WASHER HOSE 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
