SX4 CBU

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.46 ENGINE ELECTRICALFIG.47 STARTING MOTORFIG.48 GENERATORFIG.49 BATTERYFIG.50 SPEEDOMETERFIG.51 HEADLAMPFIG.52 FOG LAMPFIG.53 REAR LAMP / ROOM LAMPFIG.54 WIRING HARNESS (RHD)FIG.55 ELECTRICAL CONTROLFIG.56 LOCK SETFIG.57 FRONT WINDOW WIPERFIG.58 WINDOW WASHERFIG.59 REAR WINDOW WIPERFIG.60 RADIO

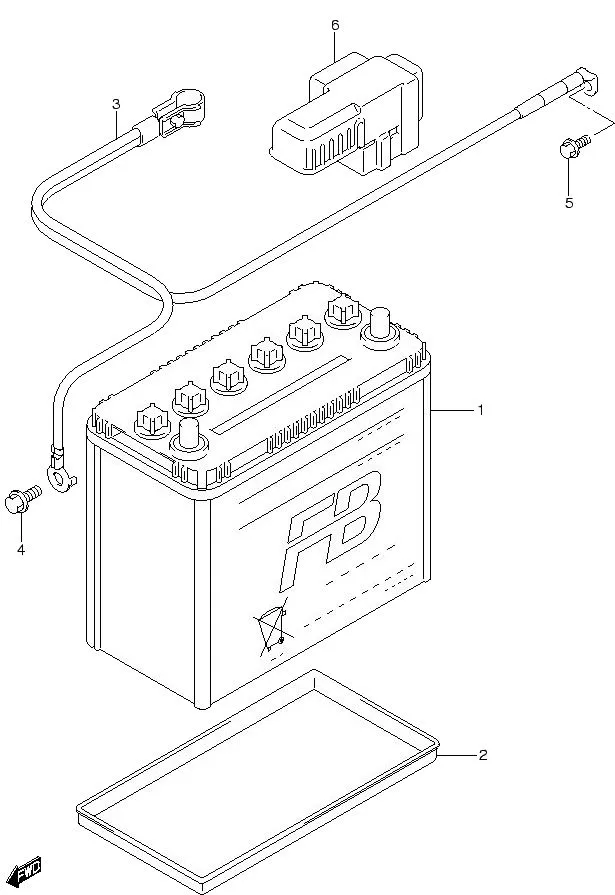

FIG.49 BATTERY

FIG.49 BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 33610-82120-000		 BATTERY ASSY 1 -
2 33660-73010-000
SUB: 33660B73010N000		 TRAY, BATERY 1 Rp41.000
3-1 DISCONTINUE
SUB: 33850-80J00-000		 CABLE, BTRY GND 1 - AT
3-2 33850-80J10-000 CABLE, BTRY GND 1 Rp415.000 MT
4 09115-06005-000 BOLT, 6X16 1 Rp14.000
5-1 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 1 Rp5.500 AT
5-2 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 1 Rp3.500 MT
6 36694-80J00-000 COVER, BATTERY TERMINAL 1 Rp153.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
