SX4 CBU

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.46 ENGINE ELECTRICALFIG.47 STARTING MOTORFIG.48 GENERATORFIG.49 BATTERYFIG.50 SPEEDOMETERFIG.51 HEADLAMPFIG.52 FOG LAMPFIG.53 REAR LAMP / ROOM LAMPFIG.54 WIRING HARNESS (RHD)FIG.55 ELECTRICAL CONTROLFIG.56 LOCK SETFIG.57 FRONT WINDOW WIPERFIG.58 WINDOW WASHERFIG.59 REAR WINDOW WIPERFIG.60 RADIO

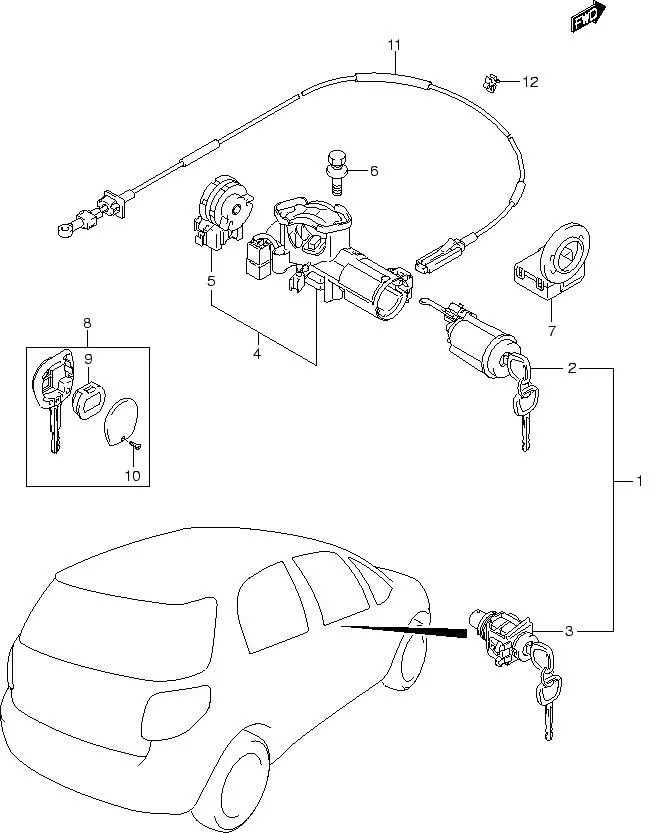

FIG.56 LOCK SET

FIG.56 LOCK SET
No No. Part Description Qty Price Per Pcs Remarks
1-1 37109-80851-000
SUB: 37109-80850-000		 LOCK SET 1 Rp3.844.000 MT
1-2 DISCONTINUE
SUB: 37107-80880-000		 LOCK SET 1 - AT
2-1 DISCONTINUE
SUB: 37106-63880-000		 •LOCK ASSY, STEERING 1 - MT
2-2 37106-63890-000 •LOCK ASSY, STEERING 1 Rp1.980.500 AT
3 DISCONTINUE
SUB: 82270-80810-000		 •CYLINDER, FR DOOR LATCH RH 1 -
4-1 DISCONTINUE
SUB: 37101-62J10-000		 BODY, STEERING LOCK 1 - MT
4-2 DISCONTINUE
SUB: 37101-62J20-000		 BODY, STEERING LOCK 1 - AT
5 37111-58J00-000 •SWITCH 1 Rp559.500
6 37152-84G00-000 BOLT, STEERING LOCK 2 Rp35.500
7 33970-65J00-000 CONTROLLER ASSY, IMMOBILIZER 1 Rp2.790.500
8 37145-55A10-000
SUB: 37145-55JP0-000		 KEY, BLANK (W/TRANSMITTER) 1 Rp1.564.000 OPT
9 37182-62J30-000
SUB: 37182-62J20-000		 •SWITCH ASSY, TRANSMITTER 1 Rp1.079.000
10 37186-81A00-000 •SCREW 1 Rp23.000
11 28551-79J10-000 CABLE, KEY INTERLOCK 1 Rp490.000
12 75411-76G00-000 CLAMP 1 Rp31.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
