Electrical - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

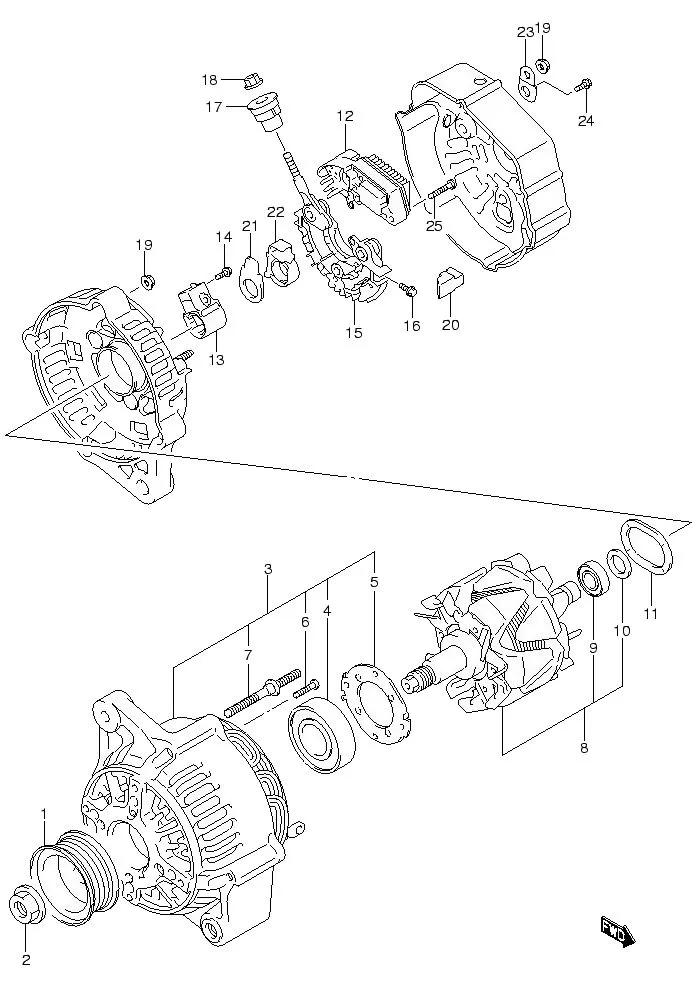

No	No. Part	Description	Qty	Price Per Pcs
	31400-80J03-000 SUB: 31400-80J00-000	GENERATOR ASSY	1	Rp8.437.500
1	31171-77E30-000 SUB: 31171-80J00-000	•PULLEY, GENERATOR	1	Rp640.000
2	31775-86510-000 SUB: 31775B86510N000	•NUT	1	Rp14.000
3	DISCONTINUE SUB: 31580-77E10-000	•FRAME ASSY, DRIVE END	1	-
4	31582-77E11-000 SUB: 31582-77E10-000	••BEARING	1	Rp390.000
5	DISCONTINUE SUB: 31585-77E10-000	••RETAINER, BEARING	1	-
6	DISCONTINUE SUB: 31586-77E10-000	••SCREW	4	-
7	DISCONTINUE SUB: 31587-82110-000	••BOLT	4	-
8	DISCONTINUE SUB: 31710-80G00-000	•ROTOR ASSY	1	-
9	31612-77E11-000 SUB: 31612-77E10-000	••BEARING	1	Rp235.000
10	DISCONTINUE SUB: 31613-82610L000	••COVER, BEARING	1	-
11	DISCONTINUE SUB: 31615-77E10-000	•WASHER	1	-
12	32500-80J01-000 SUB: 32500-80J00-000	•REGULATOR ASSY	1	Rp4.500.500
13	31656-77E10-000	•HOLDER ASSY, BRUSH	1	Rp436.500
14	31516-85250-000 SUB: 31516-85250L000	•SCREW	3	Rp22.500
15	31621-77E10-000	•RECTIFIER ASSY	1	Rp2.457.000
16	DISCONTINUE SUB: 31516-77E10-000	•SCREW	4	-
17	DISCONTINUE SUB: 31514-77E11-000	•INSULATOR, TERMINAL	1	-
18	DISCONTINUE SUB: 08310-0005A-000	•NUT	1	-
19	08316-1005A-000 SUB: 08316B1005AN000	•NUT	7	Rp2.500
20	DISCONTINUE SUB: 31622-77E10-000	•INSULATOR	4	-
21	DISCONTINUE SUB: 31619-77E10-000	•SEAL RING	1	-
22	DISCONTINUE SUB: 31620-77E10-000	•SEAL RING	1	-
23	DISCONTINUE SUB: 31512-77E10-000	•PLATE, TERMINAL	1	-
24	DISCONTINUE SUB: 31515-77E10-000	•SCREW	1	-
25	32642-80G10-000 SUB: 02112-74253-000	•SCREW	2	Rp30.500
