SX4 CBU

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.46 ENGINE ELECTRICALFIG.47 STARTING MOTORFIG.48 GENERATORFIG.49 BATTERYFIG.50 SPEEDOMETERFIG.51 HEADLAMPFIG.52 FOG LAMPFIG.53 REAR LAMP / ROOM LAMPFIG.54 WIRING HARNESS (RHD)FIG.55 ELECTRICAL CONTROLFIG.56 LOCK SETFIG.57 FRONT WINDOW WIPERFIG.58 WINDOW WASHERFIG.59 REAR WINDOW WIPERFIG.60 RADIO

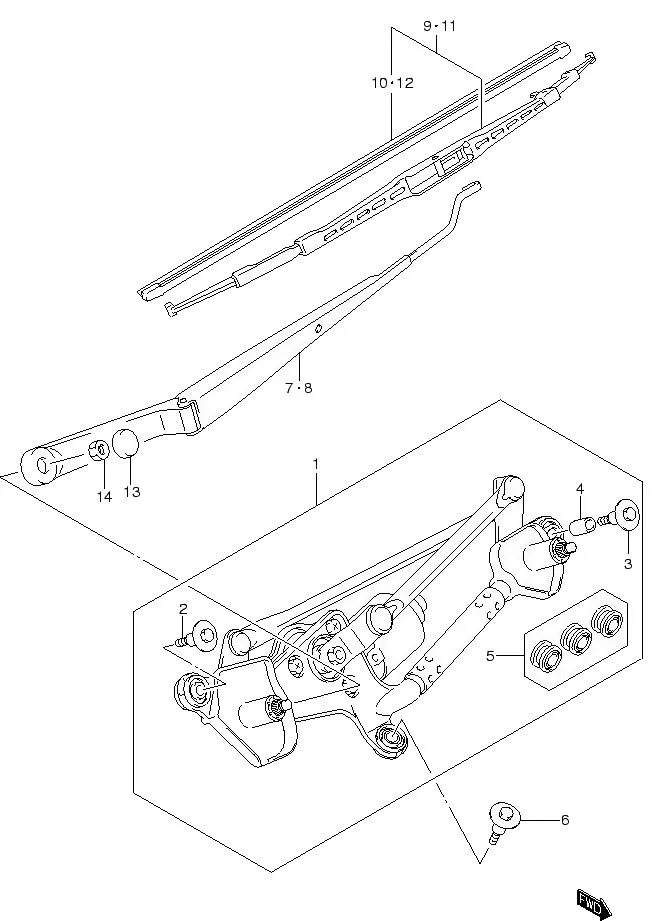

FIG.57 FRONT WINDOW WIPER

FIG.57 FRONT WINDOW WIPER
No No. Part Description Qty Price Per Pcs Remarks
1 38100-80J11-000
SUB: 38100-80J10-000		 WIPER ASSY, WINDSHIELD 1 Rp3.952.000
2 38116M72J00-000 •BOLT, WIPER DRIVER 1 Rp48.000
3 DISCONTINUE
SUB: 38116-72J10-000		 •BOLT, WIPER ASST 1 -
4 DISCONTINUE
SUB: 38116-72J20-000		 •COLLAR, WIPER MOTOR 1 -
5 DISCONTINUE
SUB: 38116-72J30-000		 •GROMMET SET, WIPER 1 -
6 09116-06186-000
SUB: 09116-06199-000		 BOLT, 6X25 1 Rp23.500
7 38310-80J10-000 ARM ASSY, WIPER DRIVER 1 Rp625.500
8 38330-54L10-000
SUB: 38330-80J10-000		 ARM ASSY, WIPER ASSISTANT 1 Rp928.000
9 38340-80J60-000
SUB: 38340-80J10-000		 BLADE ASSY, WIPER 1 Rp323.500
10 38346-80J50-000
SUB: 38346-80J00-000		 •BLADE 1 Rp149.500
11 38340-80J80-000
SUB: 38340-80J30-000		 BLADE ASSY, WIPER 1 Rp220.000
12 38346-80J60-000
SUB: 38346-80J10-000		 •BLADE 1 Rp93.000
13 84996-65DA0-000 CAP, SHOULDER ADJUSTER 2 Rp49.000
14 08310-0010A-000
SUB: 08310B0010AN000		 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
