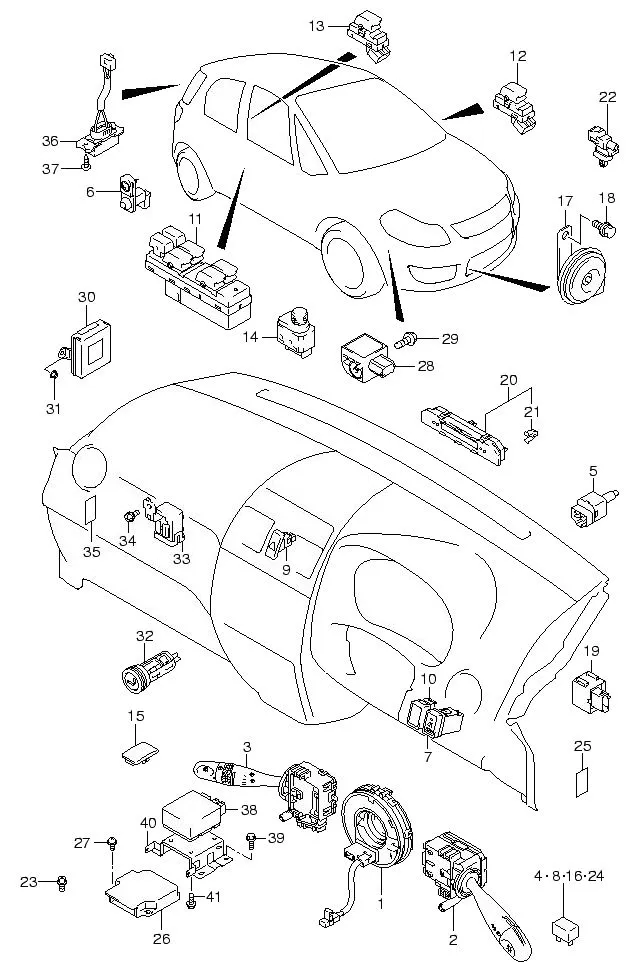

FIG.55 ELECTRICAL CONTROL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37480-62J20-000	CABLE ASSY, CONTACT COIL	1	Rp1.548.000
2	37210-73HB1-000 SUB: 37210-58J00-000	SWITCH ASSY, LIGHTING & TURN	1	Rp286.000
3	37310-62J21-000 SUB: 37310-62J20-000	SWITCH ASSY, WIPER & WASHER	1	Rp1.508.500
4	38860-76F01-000 SUB: 38860B76F01N000	RELAY, REAR WIPER	1	Rp47.000
5	37740-81K00-000 SUB: 37740B75H10N000	SWITCH ASSY, STOP LAMP	1	Rp77.500
6	37670-58J10-000 SUB: 37670B58J10N000	SWITCH ASSY, DOOR	4	Rp107.500
7	37270-62J00-000	SWITCH ASSY, FR FOG	1	Rp375.000
8	38860-76F01-000 SUB: 38860B76F01N000	RELAY, FR FOG	1	Rp47.000
9	37430-62J00-P4Z	SWITCH ASSY, HAZARD WARNING (GRAY)	1	Rp322.500
10	37285-62J10-000	CAP, OPTION SWITCH HOLE	0	Rp41.500
11	37990-80J00-000	SWITCH ASSY, POWER WINDOW MAIN	1	Rp1.732.500
12	37995-62J00-000	SWITCH ASSY, POWER WINDOW SUB	1	Rp247.500
13	37995-62J00-000	SWITCH ASSY, POWER WINDOW RR	2	Rp247.500
14	37950-62J11-000 SUB: 37950-62J10-000	SWITCH ASSY, MIRROR	1	Rp333.000
15	37285-62J00-000	CAP, OPTION SWITCH HOLE	0	Rp45.000
16	38860-76F01-000 SUB: 38860B76F01N000	RELAY, SHIFT LOCK	1	Rp47.000
17	38500-73H11-000 SUB: 38500-73H10-000	HORN ASSY	1	Rp921.500
18	09115-08001-000	BOLT	1	Rp21.500
19	38610-84F00-000	RELAY, TURN SIGNAL & 4 WAY	1	Rp613.000
20	DISCONTINUE SUB: 34600-80J00-000	MONITOR ASSY, INFORMATION	1	-
21	09409-08332-000	•CLIP	3	Rp18.000
22	95643-58J00-000	SENSOR, OUTSIDE TEMPERATURE	1	Rp262.000
23	02162-0616A-000 SUB: 02162-0616C-000	SCREW	2	Rp3.000
24	38860-76F01-000 SUB: 38860B76F01N000	RELAY, AT	1	Rp47.000	AT
25	77151-82000-000 SUB: 77151B82000N000	FILM, SIDE BODY OUTER, REAR	1	Rp7.000
26	38910-79J02-000 SUB: 38910-79J00-000	CONTROLLER ASSY, AIR BAG	1	Rp9.992.500
27	09115-06004-000	BOLT (6X16)	3	Rp19.500
28	38930-80J00-000	SENSOR ASSY, FORWARD	1	Rp1.278.000
29	09115-06004-000	BOLT (6X16)	1	Rp19.500
30	38880-80J30-000	CONTROLLER ASSY, AT	1	Rp11.131.500	AT
31	09159-06076-000	NUT	2	Rp19.500	AT
32	DISCONTINUE SUB: 39400-59J10-000	LIGHTER ASSY, CIGARETTE	1	-
33	DISCONTINUE SUB: 37190-62J21-000	RECEIVER ASSY, KEYLESS	1	-
34	02162-0612A-000	SCREW	1	Rp11.000
35	DISCONTINUE SUB: 84761-50X50-000	SEAL (140X190)	1	-
36	37178-79J00-000	SWITCH ASSY, BACK DOOR	1	Rp532.500
37	03541-0416A-000 SUB: 03541B0416AN000	SCREW	2	Rp3.500
38	38720-79J10-000	CONTROLLER ASSY, EPS	1	Rp9.098.500
39	09115-06005-000	BOLT (6X16)	2	Rp14.000
40	DISCONTINUE SUB: 38721-79J00-000	BRACKET, EPS CONTROLLER	1	-
41	02162-0508A-000 SUB: 02162B0508AN000	SCREW	2	Rp3.500
