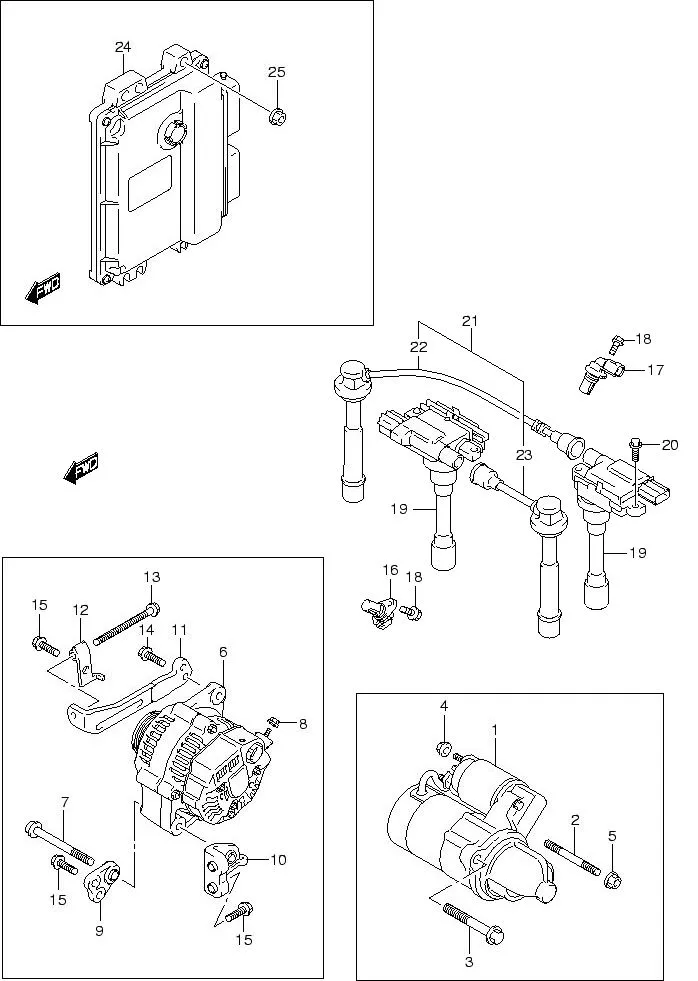

FIG.46 ENGINE ELECTRICAL

FIG.46 ENGINE ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 31100B63J00N000		 MOTOR ASSY, STARTING 1 -
2 DISCONTINUE
SUB: 01421-1060A-000		 BOLT, STUD 1 -
3 01550-1060A-000
SUB: 01550M1060A-000		 BOLT 1 Rp5.500
4 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500
5 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
6 31400-80J03-000
SUB: 31400-80J00-000		 GENERATOR ASSY 1 Rp8.437.500
7 07120-1085A-000 BOLT 1 Rp34.000
8 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
9 DISCONTINUE
SUB: 11550-64J01-000		 BRACKET, GENERATOR NO.1 1 -
10 DISCONTINUE
SUB: 11570-64J00-000		 BRACKET, GENERATOR NO.2 1 -
11 DISCONTINUE
SUB: 11560-64J00-000		 ARM, GENERATOR ADJUSTING 1 -
12 DISCONTINUE
SUB: 11562-64J00-000		 ADJUSTER, GENERATOR 1 -
13 11563-64J00-000 BOLT, GEN BELT ADJUSTING 1 Rp25.000
14 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 1 Rp3.500
15 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 5 Rp4.000
16 33220-64L20-000
SUB: 33220-63J00-000		 SENSOR ASSY, CKP 1 Rp1.027.000
17 33220-50M30-000
SUB: 33220-63J10-000		 SENSOR ASSY, CMP 1 Rp1.201.500
18 09103-06283-000 BOLT (6X16) 2 Rp20.500
19 33400-65G02-000
SUB: 33400-65G01-000		 COIL ASSY, IGNITION 2 Rp2.226.500
20 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 4 Rp3.500
21 33705-80G00-000 CORD SET, HIGH TENSION 1 Rp469.000
22 33730-80G00-000 •CORD, HIGH TENSION, NO.2 1 Rp258.000
23 33740-80G00-000 •CORD, HIGH TENSION, NO.3 1 Rp259.000
24-1 33920-75K22-000
SUB: 33920-75K20-000		 CONTROLLER ASSY, EPI-A/C 1 Rp18.352.500 MT
24-2 DISCONTINUE
SUB: 33920-75K30-000		 CONTROLLER ASSY, EPI-A/C 1 - AT
25 08316-1006A-000
SUB: 08316B1006AN000		 NUT 4 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
