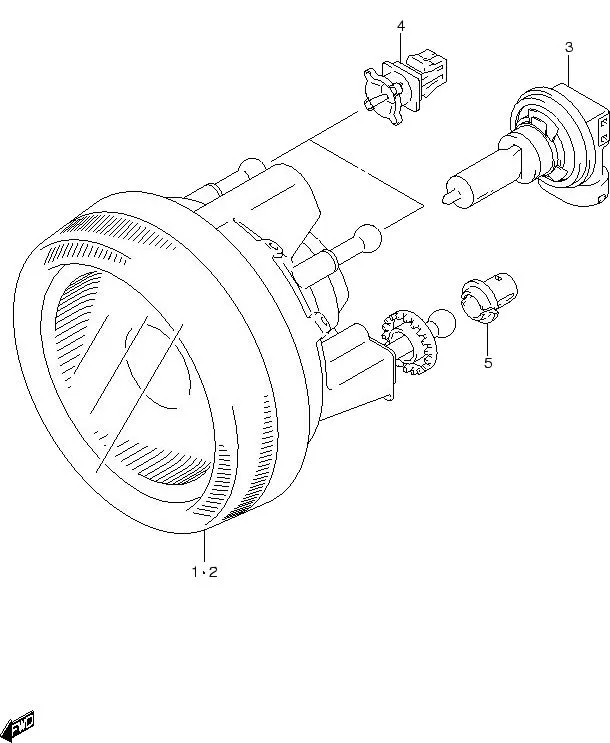

FIG.52 FOG LAMP

FIG.52 FOG LAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35510-54GA0-000	LAMP UNIT, FR FOG RH	1	Rp1.231.000
2	35560-54GA0-000	LAMP UNIT, FR FOG LH	1	Rp1.231.000
3	09471-12210-000	BULB (12V55W,H11)	2	Rp303.000
4	35153-54GA0-000	GROMMET, UPPER	4	Rp47.500
5	35153-54GB0-000	GROMMET, LOWER	2	Rp42.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
