SX4 CBU

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.46 ENGINE ELECTRICALFIG.47 STARTING MOTORFIG.48 GENERATORFIG.49 BATTERYFIG.50 SPEEDOMETERFIG.51 HEADLAMPFIG.52 FOG LAMPFIG.53 REAR LAMP / ROOM LAMPFIG.54 WIRING HARNESS (RHD)FIG.55 ELECTRICAL CONTROLFIG.56 LOCK SETFIG.57 FRONT WINDOW WIPERFIG.58 WINDOW WASHERFIG.59 REAR WINDOW WIPERFIG.60 RADIO

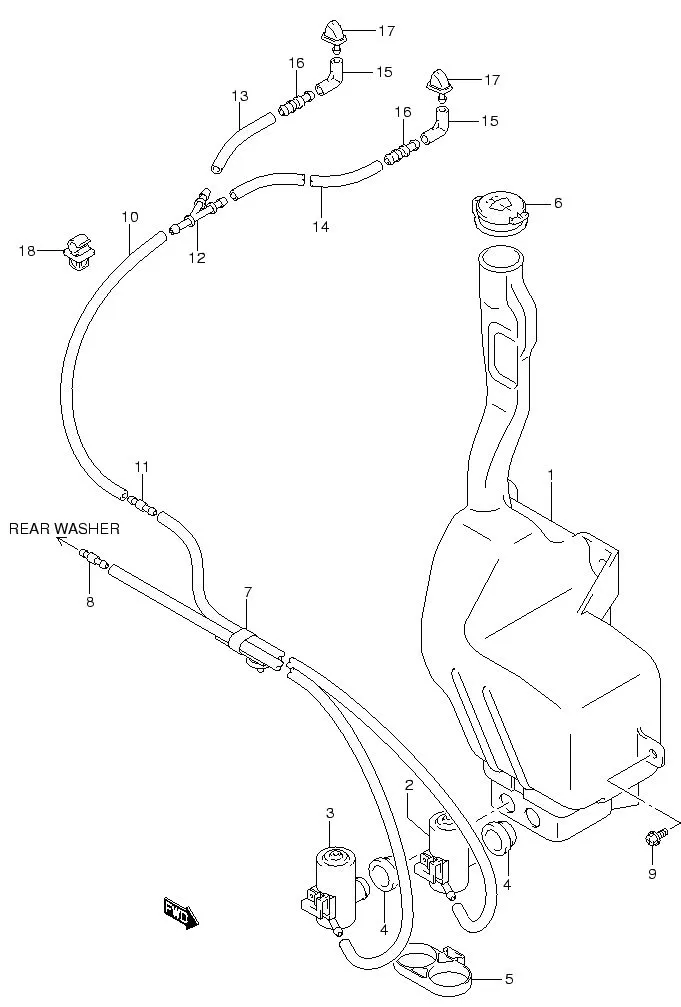

FIG.58 WINDOW WASHER

FIG.58 WINDOW WASHER
No No. Part Description Qty Price Per Pcs Remarks
1 38450-80J10-000 TANK ASSY, WASHER 1 Rp462.000
2 38410-80J00-000 PUMP ASSY, FR WASHER 1 Rp773.500
3 38410-80J10-000 PUMP ASSY, RR WASHER 1 Rp773.500
4 38453-65J00-000 GROMMET 2 Rp41.500
5 38453-80J10-000 HOLDER, WASHER PUMP 1 Rp58.000
6 38452-67H00-000 CAP, WASHER TANK 1 Rp29.500
7 38459-80JA0-000 HOSE ASSY, FR & RR 1 Rp168.500
8 38496-56B00-000 CONNECTOR 1 Rp33.500
9 02162-0612A-000 SCREW 3 Rp11.000
10 38491-80J01-000
SUB: 38491-80J00-000		 HOSE ASSY, WASHER 1 Rp236.000
11 38496-56B00-000 CONNECTOR 1 Rp33.500
12 38496-60G00-000 JOINT, 3WAY 1 Rp29.000
13 38491-61A10-000 HOSE, WASHER (L:2100) 1 Rp113.500 L:2100!70
14 38491-61A10-000 HOSE, WASHER (L:2100) 1 Rp113.500 L:2100!680
15 38496-67H00-000 JOINT, ELBOW 2 Rp33.500
16 38833M79500-000
SUB: 38496-61A00-000		 VALVE, WASHER HOSE 2 Rp8.000
17 38480-80J00-000 NOZZLE, WASHER 2 Rp120.000
18 09403-07330-000 CLAMP 2 Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
