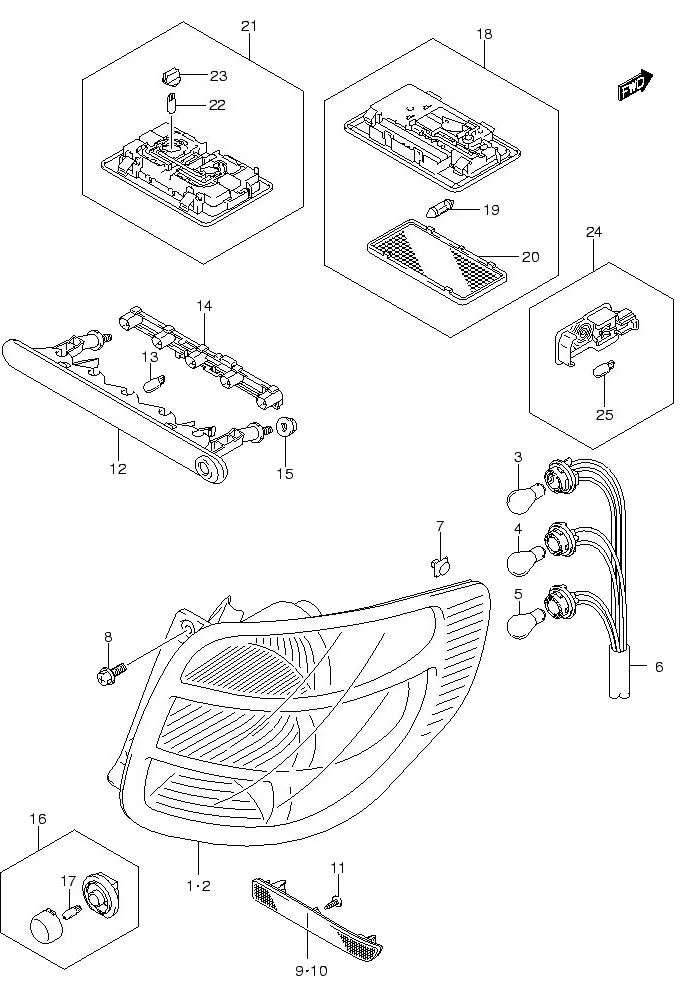

FIG.53 REAR LAMP / ROOM LAMP

FIG.53 REAR LAMP / ROOM LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35650-80JA0-000 UNIT, RR COMBINATION RH 1 Rp2.254.000
2 35670-80JA0-000 UNIT, RR COMBINATION LH 1 Rp2.254.000
3 09471-12192-000 BULB (12V21/5W) 2 Rp56.000
4 09471-12191-000 BULB (12V21W) 2 Rp52.500
5 09471-12202-000 BULB (12V 21W/WY21W) (AMBER) 2 Rp78.000
6 35658-80JA0-000 CORD ASSY 2 Rp472.000
7 35153-65J00-000
SUB: 35153B65J00N000		 GROMMET, REAR COMB LAMP 4 Rp7.000
8 02162-0620A-000
SUB: 02162-0620C-000		 SCREW 4 Rp5.500
9 35950-81K00-000
SUB: 35950-79J01-000		 REFLECTOR ASSY, REAR RH 1 Rp31.000
10 35970-81K00-000
SUB: 35970-79J01-000		 REFLECTOR ASSY, REAR LH 1 Rp31.000
11 03241M0516A-000
SUB: 03141M0516A-000		 SCREW 2 Rp4.500
12 35820-79J00-000 LAMP UNIT, HIGH MOUNT STOP 1 Rp817.500
13 09471-12216-000
SUB: 09471B12216N000		 BULB (12V5W) 5 Rp15.000
14 35817-79J01-000 BULB COVER 1 Rp478.500
15 09159-06100-000 NUT 2 Rp19.000
16 35910-75F31-000
SUB: 35910-75F30-000		 LAMP ASSY, LICENSE 2 Rp181.000
17 09471-12081-000
SUB: 09471B12081N000		 •BULB (12V5W) 2 Rp11.000
18 36210-65J03-6GS
SUB: 36210-65J02-6GS		 LAMP ASSY, ROOM (GRAY) 1 Rp3.258.500
19 09471-12L04-000
SUB: 09471B12181N000		 •BULB (12V10W) 1 Rp30.500
20 DISCONTINUE
SUB: 36212-65J01-000		 •LENS 1 -
21 36230-79J00-6GS LAMP ASSY, SPOT (GRAY) 1 Rp742.000
22 09471-12113-000 •BULB (12V8W) (KOITO) 2 Rp21.500
23 36218-74F00-000 •SOCKET 2 Rp40.500
24 36210-54G20-000 LAMP ASSY, LUGGAGE ROOM 1 Rp199.500
25 09471-12081-000
SUB: 09471B12081N000		 •BULB (12V 5W) 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
