SWIFT RS415

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEAD (RS413:30,E96)FIG.3 CYLINDER HEAD (RS413:35,RS415)FIG.4 CYLINDERFIG.5 OIL PANFIG.6 ENGINE MOUNTING (MT:RS413)FIG.7 ENGINE MOUNTING (MT:RS415)FIG.8 ENGINE MOUNTING (AT)FIG.9 CRANKSHAFT (RS413)FIG.10 CRANKSHAFT (RS415)FIG.11 CAM SHAFT/VALVE (RS413:E30,E96)FIG.12 CAM SHAFT/VALVE (RS413:E3, RS415)FIG.13 CAM CHAIN (RS413:E30,E96)FIG.14 CAM CHAIN (RS413:E35, RS415)FIG.15 INTAKE MANIFOLDFIG.16 THROTTLE BODYFIG.17 AIR CLEANERFIG.18 EXHAUST MANIFOLDFIG.19 MUFFLERFIG.20 FUEL PUMPFIG.21 DELIVERY PIPEFIG.22 OIL PUMP (RS413:E30,E96)FIG.23 OIL PUMP (RS413:E35, RS415)FIG.24 WATER PUMPFIG.25 RADIATORFIG.26 WATER HOSEFIG.27 EMISSION CONTROL (LHD)FIG.28 EMISSION CONTROL (RHD)FIG.29 LABEL

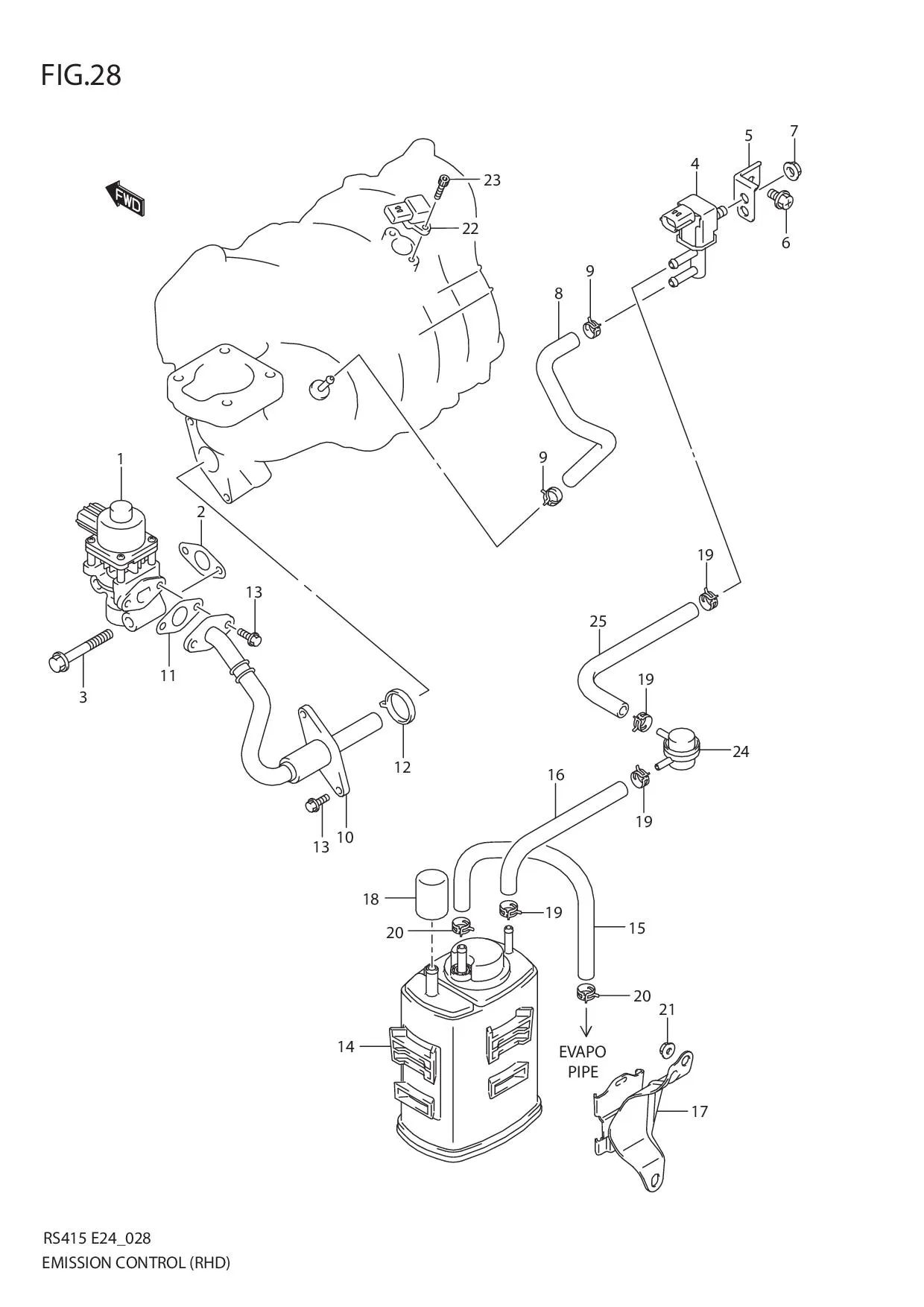

FIG.28 EMISSION CONTROL (RHD)

FIG.28 EMISSION CONTROL (RHD)
No No. Part Description Qty Price Per Pcs Remarks
1 18111-69G01-000
SUB: 18111-69G00-000		 VALVE, EGR 1 Rp3.581.000
2 18529-69G00-000 GASKET 1 Rp23.500
3 01550-0855B-000
SUB: 01550-08553-000		 BOLT 2 Rp24.000
4 DISCONTINUE
SUB: 18117-52G00-000		 VALVE ASSY, DUTY FOR PURGE 1 -
5-1 18417-86G00-000 BRACKET 1 -
5-2 DISCONTINUE
SUB: 18417-63J00-000		 BRACKET 1 - JSAEZC11S00100001%; JSAEZC21S00100247%
6 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
7 08316-1006A-000
SUB: 08316-10063L000		 NUT 1 Rp2.000
8 18564-63J01-000
SUB: 18564-63J00-000		 HOSE, PURGE 1 Rp74.500
9 09401-10409-000
SUB: 09401B10409N000		 CLIP 2 Rp7.500
10 DISCONTINUE
SUB: 18530-86G00-000		 PIPE, EGR 1 -
11 18533-77E00-000 GASKET 1 Rp29.500
12 18534-86G00-000 GASKET 1 Rp56.500
13 01550-0616A-000
SUB: 01550-06163-000		 BOLT 4 Rp3.500
14 DISCONTINUE
SUB: 18560-81AA0-000		 CANISTER 1 -
15 DISCONTINUE
SUB: 18561-63J00-000		 HOSE, CANISTER INLET 1 -
16 DISCONTINUE
SUB: 18562-63J00-000		 HOSE, CANISTER PURGE 1 -
17 DISCONTINUE
SUB: 18570-63J00-000		 BRACKET, CANISTER 1 -
18 18571-65H20-000
SUB: 18571B65H20N000		 CAP, CANISTER 1 Rp11.000
19 09401-10409-000
SUB: 09401B10409N000		 CLIP 4 Rp7.500
20 09401M11419-000 CLIP 2 Rp6.000
21 08316-1006A-000
SUB: 08316-10063L000		 NUT 2 Rp2.000
22 18590-68H00-000
SUB: 18590-72F21-000		 SENSOR, MAP 1 Rp1.998.500
23 07130-05163-000 BOLT 2 -
24 18145-83E00-000
SUB: 18145M83E00-000		 CHAMBER 1 Rp71.000
25 18563-63J01-000
SUB: 18563-63J00-000		 HOSE 1 Rp85.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
