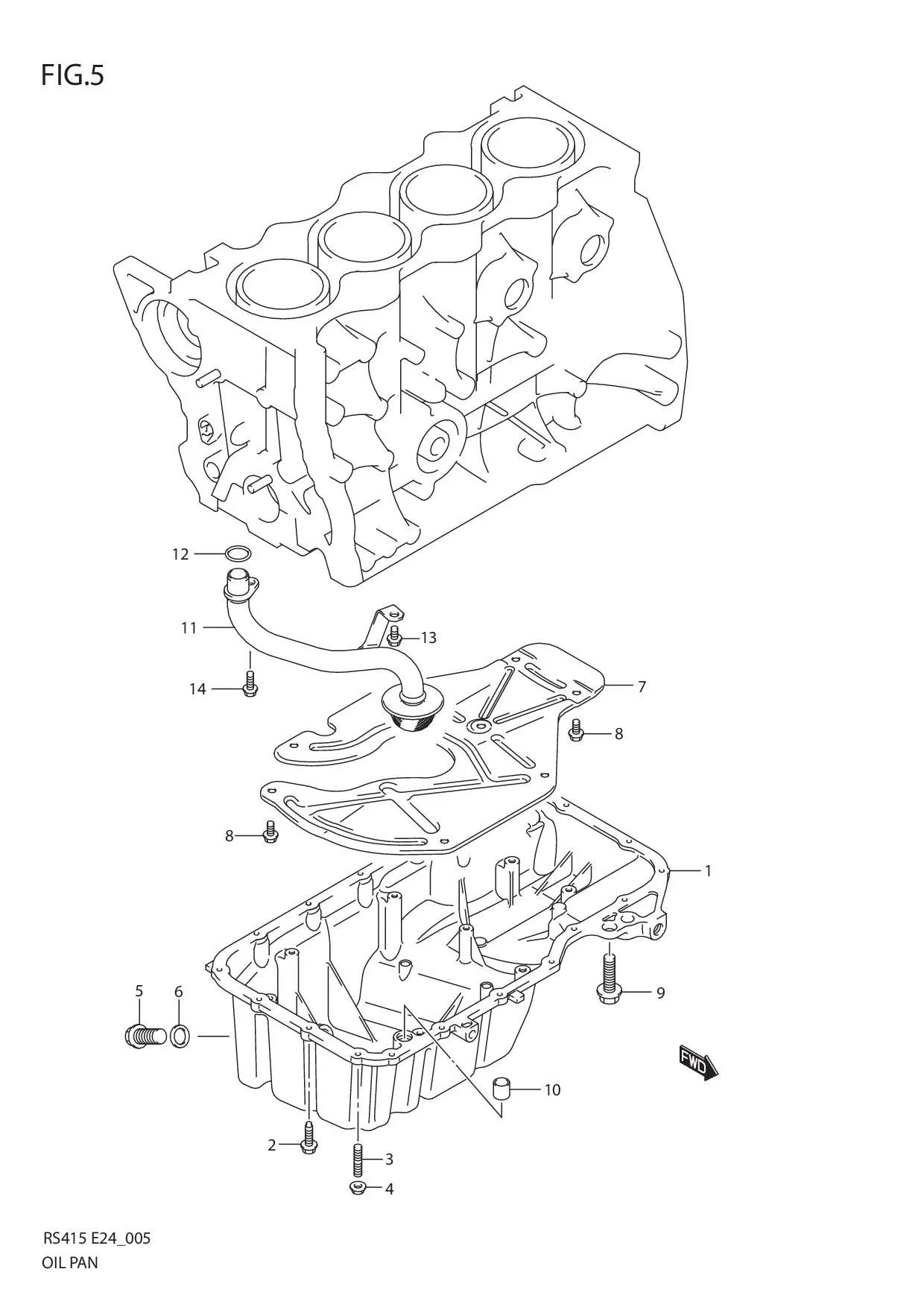

FIG.5 OIL PAN

FIG.5 OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1 11511-63J06-000
SUB: 11511-63J00-000
PAN, OIL 1 Rp2.279.000
2 01550-0620B-000
SUB: 01550-06203L000
BOLT 17 Rp3.500
3 01421-0620A-000
SUB: 01421-06203-000
STUD BOLT 2 Rp3.500
4 09159-06077-000 NUT 2 Rp17.500
5 11518-63J01-000
SUB: 11518-63J00-000
PLUG 1 Rp24.000
6 09168-14015-000
SUB: 09168M14015-000
GASKET 1 Rp7.500
7 11512-63J01-000
SUB: 11512-63J00-000
PLATE, BAFFLE 1 Rp101.000
8 DISCONTINUE
SUB: 01550B06123N000
BOLT 8 -
9 01550-1035B-000
SUB: 01550B10353N000
BOLT 1 Rp5.000
10 04211M13189-000
SUB: 04211M13149-000
PIN 1 Rp9.000
11 16520-69G04-000
SUB: 16520-69G02-000
STRAINER, OIL PUMP 1 Rp409.500
12 51181-37B00-000
SUB: 09280B17002N000
O RING 2 Rp5.000
13 07120-0612A-000
SUB: 07120-06123-000
BOLT 1 Rp16.500
14 07120-0616A-000
SUB: 07120-06163-000
BOLT 1 Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
