SWIFT RS415

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEAD (RS413:30,E96)FIG.3 CYLINDER HEAD (RS413:35,RS415)FIG.4 CYLINDERFIG.5 OIL PANFIG.6 ENGINE MOUNTING (MT:RS413)FIG.7 ENGINE MOUNTING (MT:RS415)FIG.8 ENGINE MOUNTING (AT)FIG.9 CRANKSHAFT (RS413)FIG.10 CRANKSHAFT (RS415)FIG.11 CAM SHAFT/VALVE (RS413:E30,E96)FIG.12 CAM SHAFT/VALVE (RS413:E3, RS415)FIG.13 CAM CHAIN (RS413:E30,E96)FIG.14 CAM CHAIN (RS413:E35, RS415)FIG.15 INTAKE MANIFOLDFIG.16 THROTTLE BODYFIG.17 AIR CLEANERFIG.18 EXHAUST MANIFOLDFIG.19 MUFFLERFIG.20 FUEL PUMPFIG.21 DELIVERY PIPEFIG.22 OIL PUMP (RS413:E30,E96)FIG.23 OIL PUMP (RS413:E35, RS415)FIG.24 WATER PUMPFIG.25 RADIATORFIG.26 WATER HOSEFIG.27 EMISSION CONTROL (LHD)FIG.28 EMISSION CONTROL (RHD)FIG.29 LABEL

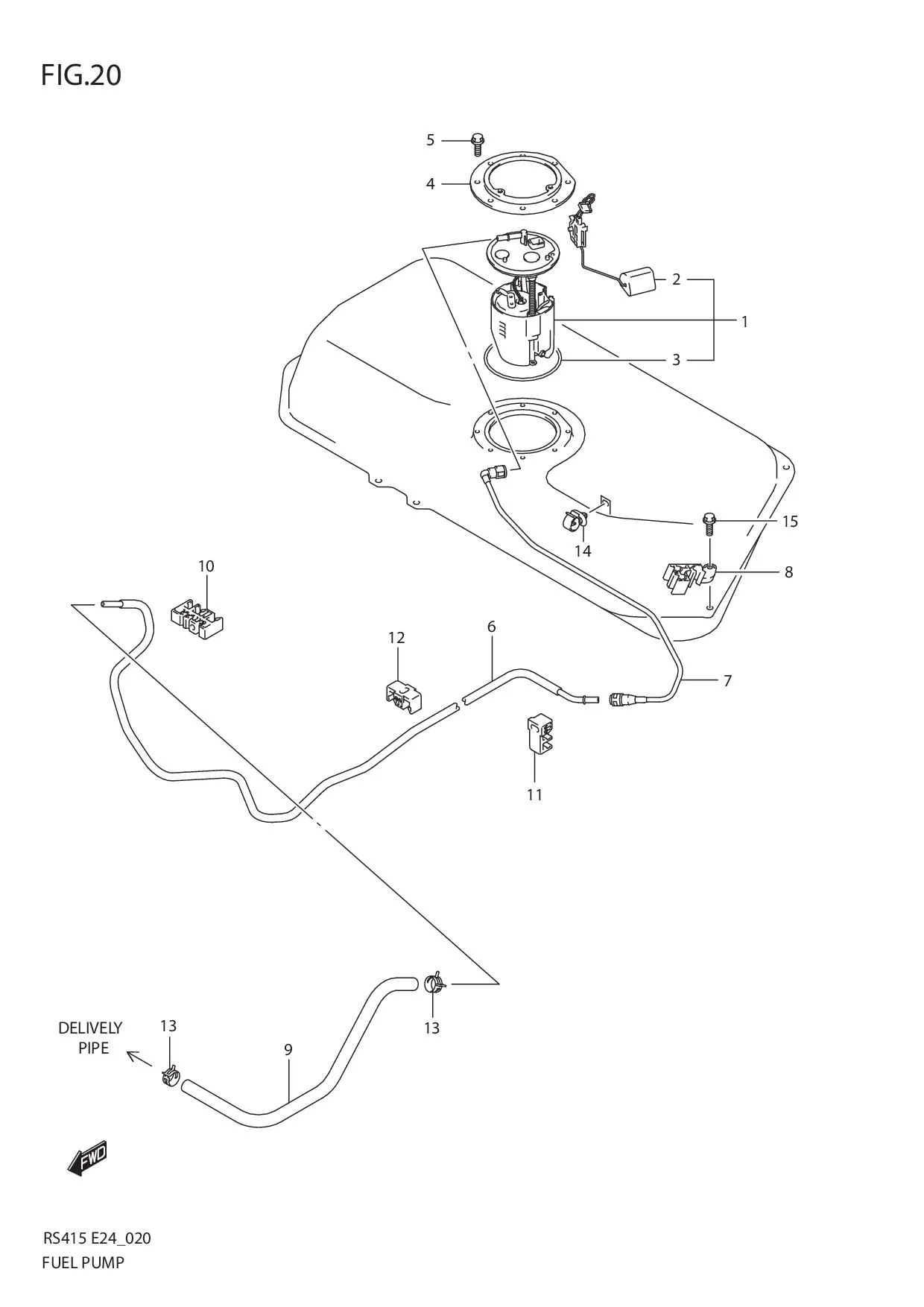

FIG.20 FUEL PUMP

FIG.20 FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 15100-63811-000		 PUMP SET, FUEL 1 -
2 34810-63J00-000 •GAUGE ASSY, LEVEL 1 Rp836.000
3 15111-80J00-000
SUB: 15111-61J00-000		 •GASKET 1 Rp96.500
4 15121M61J00-000 PLATE, FUEL PUMP 1 Rp23.500
5 02162-0610A-000
SUB: 02162-06103-000		 BOLT 8 Rp5.000
6-1 15811-62J00-000 PIPE, FUEL 1 - LHD
6-2 DISCONTINUE
SUB: 15811-63J00-000		 PIPE, FUEL 1 - RHD
7 15812-63J00-000 PIPE, FUEL (PUMP TO PIPE) 1 Rp464.000
8 DISCONTINUE
SUB: 15813-63J00-000		 CLAMP 1 -
9-1 15815-63J20-000 HOSE, FUEL (PIPE TO ENG) 1 - LHD
9-2 15815-63J00-000 HOSE, FUEL (PIPE TO ENG) 1 Rp367.000 RHD
10-1 15882-63J20-000 CLAMP 1 - LHD
10-2 DISCONTINUE
SUB: 15882-80G00-000		 CLAMP 1 - RHD
11-1 DISCONTINUE
SUB: 15893-63J00-000		 CLAMP 2 - LHD
11-2 DISCONTINUE
SUB: 15893-63J00-000		 CLAMP 1 - RHD
12 15893-83G01-000 CLAMP 6 Rp23.000
13 09401-13419-000 CLIP 2 Rp26.500
14 09403-08333-000 CLAMP 1 Rp22.500
15 01550-0616A-000
SUB: 01550-06163-000		 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
