SWIFT RS415

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEAD (RS413:30,E96)FIG.3 CYLINDER HEAD (RS413:35,RS415)FIG.4 CYLINDERFIG.5 OIL PANFIG.6 ENGINE MOUNTING (MT:RS413)FIG.7 ENGINE MOUNTING (MT:RS415)FIG.8 ENGINE MOUNTING (AT)FIG.9 CRANKSHAFT (RS413)FIG.10 CRANKSHAFT (RS415)FIG.11 CAM SHAFT/VALVE (RS413:E30,E96)FIG.12 CAM SHAFT/VALVE (RS413:E3, RS415)FIG.13 CAM CHAIN (RS413:E30,E96)FIG.14 CAM CHAIN (RS413:E35, RS415)FIG.15 INTAKE MANIFOLDFIG.16 THROTTLE BODYFIG.17 AIR CLEANERFIG.18 EXHAUST MANIFOLDFIG.19 MUFFLERFIG.20 FUEL PUMPFIG.21 DELIVERY PIPEFIG.22 OIL PUMP (RS413:E30,E96)FIG.23 OIL PUMP (RS413:E35, RS415)FIG.24 WATER PUMPFIG.25 RADIATORFIG.26 WATER HOSEFIG.27 EMISSION CONTROL (LHD)FIG.28 EMISSION CONTROL (RHD)FIG.29 LABEL

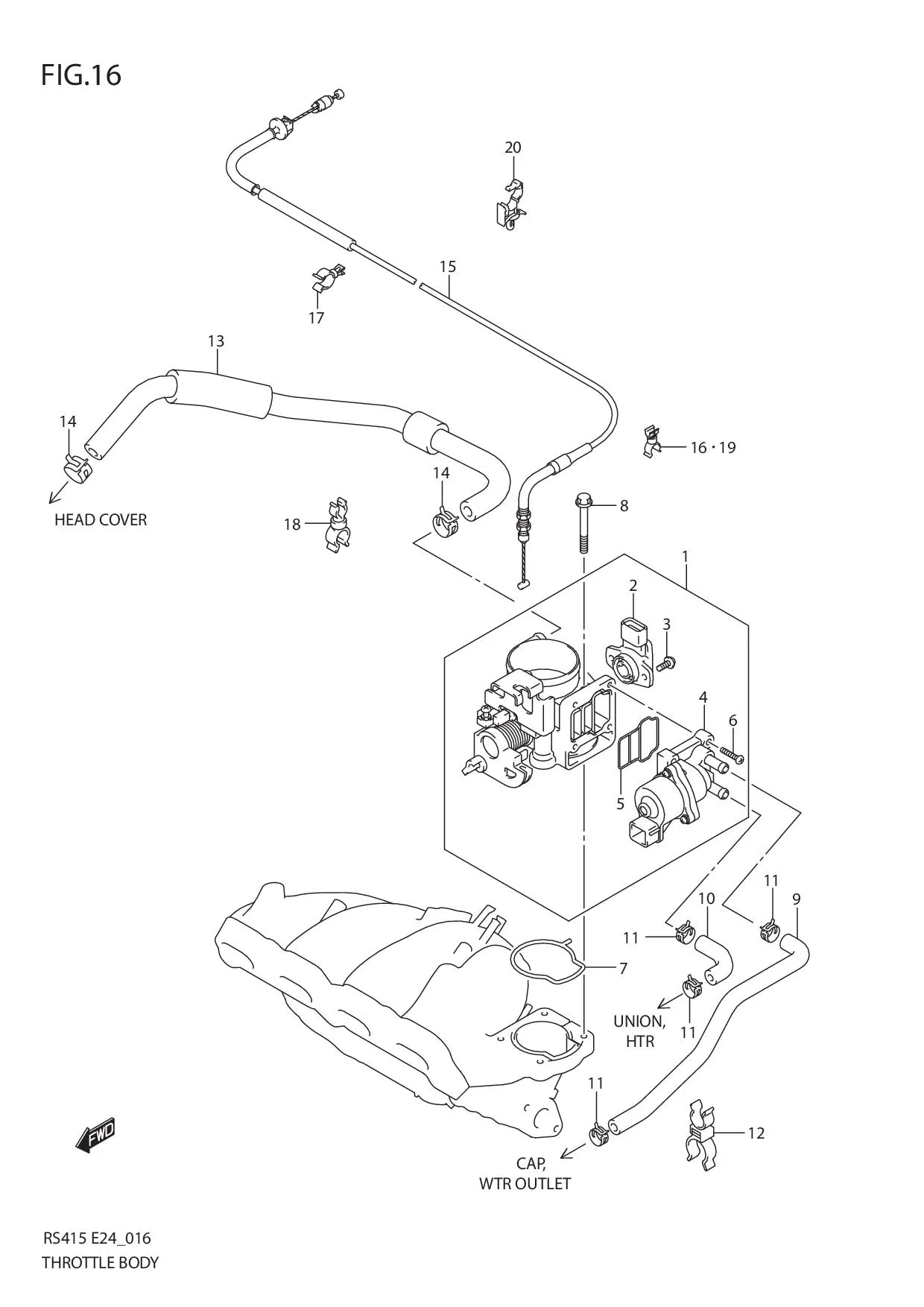

FIG.16 THROTTLE BODY

FIG.16 THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1-2 13400-84E02-000
SUB: 13400-84E01-000		 BODY ASSY, THROTTLE 1 Rp9.930.500 RS413:AT,RS415
1-1 13400-84E11-000 BODY ASSY, THROTTLE 1 - RS413:MT
2 13420-86G01-000
SUB: 13420-86G00-000		 •SENSOR, THROTTLE POSITION 1 Rp2.908.000
3 13428-77G1V-000
SUB: 13428-77G10-000		 •SCREW 2 Rp24.000
4-1 18137-83E11-000 •VALVE, ISC 1 - RS413:MT
4-2 18137-83E01-000 •VALVE, ISC 1 Rp3.467.000 RS413:AT,RS415
5 14139-70G30-000
SUB: 14139M70G30-000		 •GASKET 1 Rp38.500
6 13601-05148-XC0
SUB: 13601-05148-000		 •SCREW 4 Rp22.500
7 13421-86G00-000 GASKET 1 Rp73.500
8 01550-0855B-000
SUB: 01550-08553-000		 BOLT 4 Rp24.000
9 13491-60J00-000 HOSE, WATER THROT BODY INLET 1 Rp170.000
10 13492-60J00-000 HOSE, WATER THROT BODY OUTLET 1 Rp73.000
11 09401-12410-000 CLIP 4 Rp15.000
12 DISCONTINUE
SUB: 09408-00186-000		 CLAMP, HOSE 1 -
13 11191-60J00-000 HOSE, BREATHER 1 Rp250.000
14 11199M68K00-000
SUB: 09401M18404-000		 CLIP 2 Rp11.000
15-1 15910-62J01-000 CABLE ASSY, ACCEL 1 - LHD
15-2 15910-63J00-000 CABLE ASSY, ACCEL 1 Rp265.000 RHD
16 DISCONTINUE
SUB: 09408-00219-000		 CLAMP 1 - RHD
17 DISCONTINUE
SUB: 09408-00079-000		 CLAMP 1 - RHD
18 DISCONTINUE
SUB: 09408-00080-000		 CLAMP 1 - RHD:MT
19 DISCONTINUE
SUB: 09408-00048-000		 CLAMP 1 - RHD
20 09403-10322-000 CLAMP 1 - LHD

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
