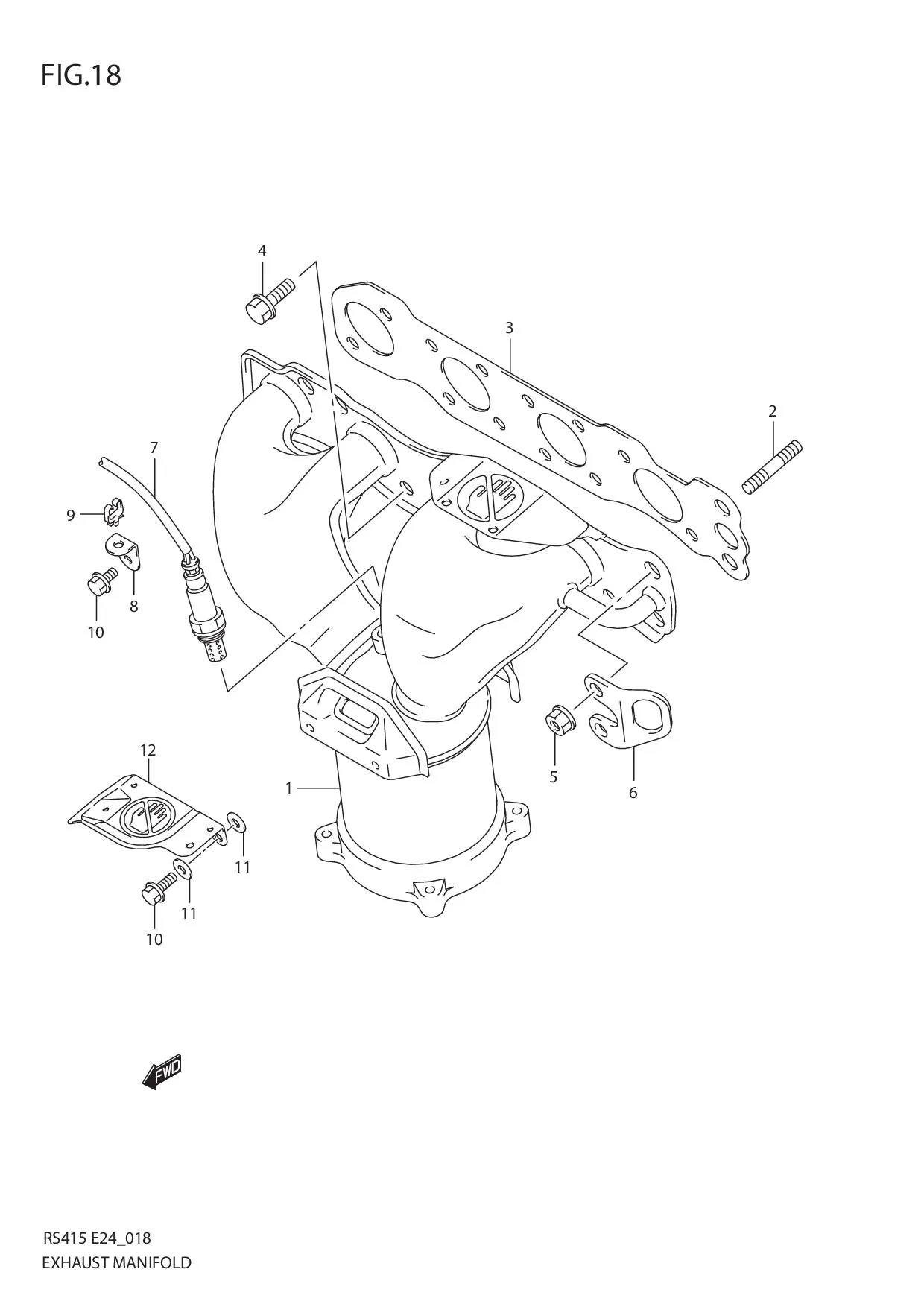

FIG.18 EXHAUST MANIFOLD

FIG.18 EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1-1 DISCONTINUE
SUB: 14110-63J02-H02		 MANIFOLD,EXH(BLACK) 1 - !14110-63J01
1-1 14121-64J01-000 PLATE,CAUTION 1 Rp130.000 USED WITH 14121-64J00
1-2 DISCONTINUE
SUB: 14110-63J01-000		 MANIFOLD, EXHAUST 1 - E24,E30,E43,E96; JSAEZC11S00100001%; JSAEZC21S00102927%; JS2ZC11S 65100001%; JS2ZC21S 65100001%
1-3 14110-63J11-000 MANIFOLD, EXHAUST 1 - E35
2 14118-63J00-000 STUD BOLT 6 Rp21.500
3 14140-69G02-000
SUB: 14140-69G01-000		 GASKET, EXH MANF 1 Rp156.000
4 DISCONTINUE
SUB: 09103-10209-000		 BOLT (10X23) 4 -
5 08316-1010A-000
SUB: 08316-10103-000		 NUT 6 Rp3.500
6 DISCONTINUE
SUB: 11851B80GA0N000		 HOOK, ENGINE 1 -
7 18213-63J01-000
SUB: 18213-63J00-000		 SENSOR, OXYGEN 1 Rp2.745.000
8 18214-80G00-000 BRACKET 2 - %JSAEZC21S00102926
9 09403-11313-000 CLAMP 2 Rp24.000
10-1 01550-0812A-000
SUB: 01550B08123N000		 BOLT 2 Rp3.500
10-2 01550-0816A-000
SUB: 01550M08163-000		 BOLT 2 Rp6.000 JSAEZC11S00100015%; JSAEZC21S00105626%; JS2ZC11S 65100009%; JS2ZC21S 65100021%
11 DISCONTINUE
SUB: 09160-08127-000		 WASHER (8.5X22X2) 4 - JSAEZC11S00100015%; JSAEZC21S00105626%; JS2ZC11S 65100009%; JS2ZC21S 65100021%
12 14121-64J01-000
SUB: 14121-64J00-000		 PLATE, CAUTION 1 Rp130.000 JSAEZC11S00100001%; JSAEZC21S00102927%; JS2ZC11S 65100001%; JS2ZC21S 65100001%

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
