SWIFT RS415

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEAD (RS413:30,E96)FIG.3 CYLINDER HEAD (RS413:35,RS415)FIG.4 CYLINDERFIG.5 OIL PANFIG.6 ENGINE MOUNTING (MT:RS413)FIG.7 ENGINE MOUNTING (MT:RS415)FIG.8 ENGINE MOUNTING (AT)FIG.9 CRANKSHAFT (RS413)FIG.10 CRANKSHAFT (RS415)FIG.11 CAM SHAFT/VALVE (RS413:E30,E96)FIG.12 CAM SHAFT/VALVE (RS413:E3, RS415)FIG.13 CAM CHAIN (RS413:E30,E96)FIG.14 CAM CHAIN (RS413:E35, RS415)FIG.15 INTAKE MANIFOLDFIG.16 THROTTLE BODYFIG.17 AIR CLEANERFIG.18 EXHAUST MANIFOLDFIG.19 MUFFLERFIG.20 FUEL PUMPFIG.21 DELIVERY PIPEFIG.22 OIL PUMP (RS413:E30,E96)FIG.23 OIL PUMP (RS413:E35, RS415)FIG.24 WATER PUMPFIG.25 RADIATORFIG.26 WATER HOSEFIG.27 EMISSION CONTROL (LHD)FIG.28 EMISSION CONTROL (RHD)FIG.29 LABEL

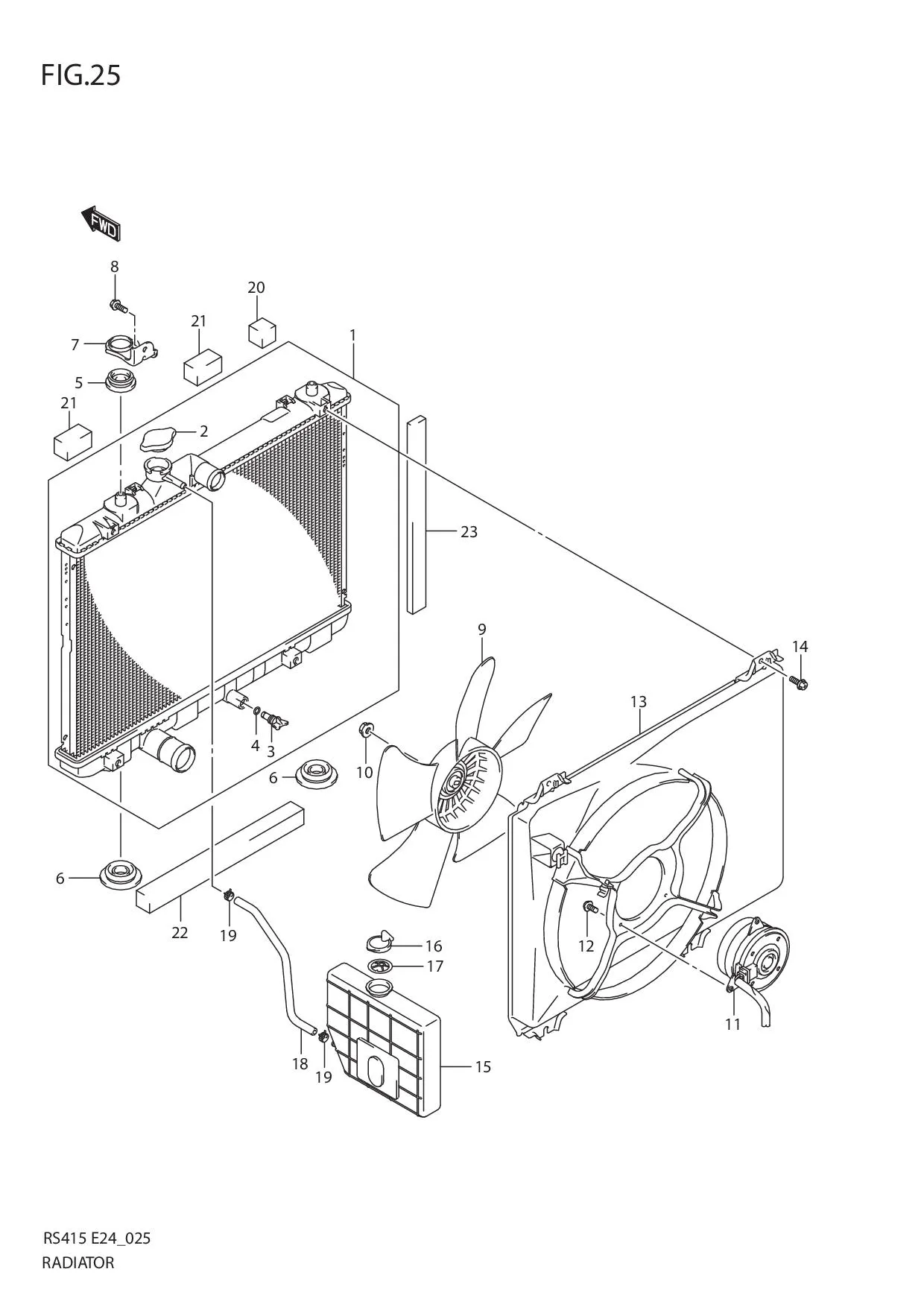

FIG.25 RADIATOR

FIG.25 RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1-2 17700-63J10-000 RADIATOR ASSY 1 Rp7.476.000 AT
1-1 17700-63J00-000 RADIATOR ASSY 1 Rp7.773.000 MT
2 DISCONTINUE
SUB: 17920B75F00N000		 •CAP, RADIATOR 1 -
3 17751-61A00-000
SUB: 17751B61A00N000		 •PLUG, DRAIN 1 Rp13.000
4 17759-72010-000 •O RING 1 Rp17.000
5 17879M75J00-000
SUB: 17879M75F00-000		 MOUNT, RADIATOR SUPPORT UPPER 2 Rp11.000
6 17878-81K00-000
SUB: 17878B75F00N000		 MOUNT, RADIATOR SUPPORT LOWER 2 Rp14.000
7 17861-63J01-000 BRACKET, RADIATOR SUPPORT 2 Rp42.500
8 02162-0612B-000
SUB: 02162-06123-000		 BOLT 2 Rp16.000
9 17111-63J00-000 FAN, COOLING 1 Rp526.500
10 08316-2005A-000
SUB: 08316-20053-000		 NUT 1 Rp13.000
11 17120-63J00-000 MOTOR, COOLING FAN 1 Rp4.111.000
12 02142-0510A-000
SUB: 02142-05103-000		 SCREW 3 Rp4.000
13 17760-63J00-000 SHROUD 1 Rp1.217.000
14 02162-0616A-000
SUB: 02162-06163L000		 BOLT 4 Rp3.000
15-1 17931-63J00-000 TANK, WATER RESERVOIR 1 -
15-2 17931-63J01-000 TANK, WATER RESERVOIR 1 Rp238.000 JSAEZC11S00100015%; JSAEZC21S00105626%; JS2ZC11S 65100009%; JS2ZC21S 65100021%
16 17932-63J00-000 CAP 1 Rp42.500
17 17933-60B00-000
SUB: 17933B60B00N000		 RUBBER 1 Rp5.500
18 17939-63J10-000
SUB: 17939-63J00-000		 HOSE, RDTR TO RSVR TANK 1 Rp109.000
19 09401-10409-000
SUB: 09401-11407-000		 CLIP 2 Rp7.500
20 17791-63J00-000 SEAL, NO.1 1 -
21 DISCONTINUE
SUB: 17792-63J00-000		 SEAL, NO.2 2 -
22 17793-63J00-000 SEAL, NO.3 1 Rp65.000
23 DISCONTINUE
SUB: 17794-63J00-000		 SEAL, NO.4 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
