SWIFT RS415

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEAD (RS413:30,E96)FIG.3 CYLINDER HEAD (RS413:35,RS415)FIG.4 CYLINDERFIG.5 OIL PANFIG.6 ENGINE MOUNTING (MT:RS413)FIG.7 ENGINE MOUNTING (MT:RS415)FIG.8 ENGINE MOUNTING (AT)FIG.9 CRANKSHAFT (RS413)FIG.10 CRANKSHAFT (RS415)FIG.11 CAM SHAFT/VALVE (RS413:E30,E96)FIG.12 CAM SHAFT/VALVE (RS413:E3, RS415)FIG.13 CAM CHAIN (RS413:E30,E96)FIG.14 CAM CHAIN (RS413:E35, RS415)FIG.15 INTAKE MANIFOLDFIG.16 THROTTLE BODYFIG.17 AIR CLEANERFIG.18 EXHAUST MANIFOLDFIG.19 MUFFLERFIG.20 FUEL PUMPFIG.21 DELIVERY PIPEFIG.22 OIL PUMP (RS413:E30,E96)FIG.23 OIL PUMP (RS413:E35, RS415)FIG.24 WATER PUMPFIG.25 RADIATORFIG.26 WATER HOSEFIG.27 EMISSION CONTROL (LHD)FIG.28 EMISSION CONTROL (RHD)FIG.29 LABEL

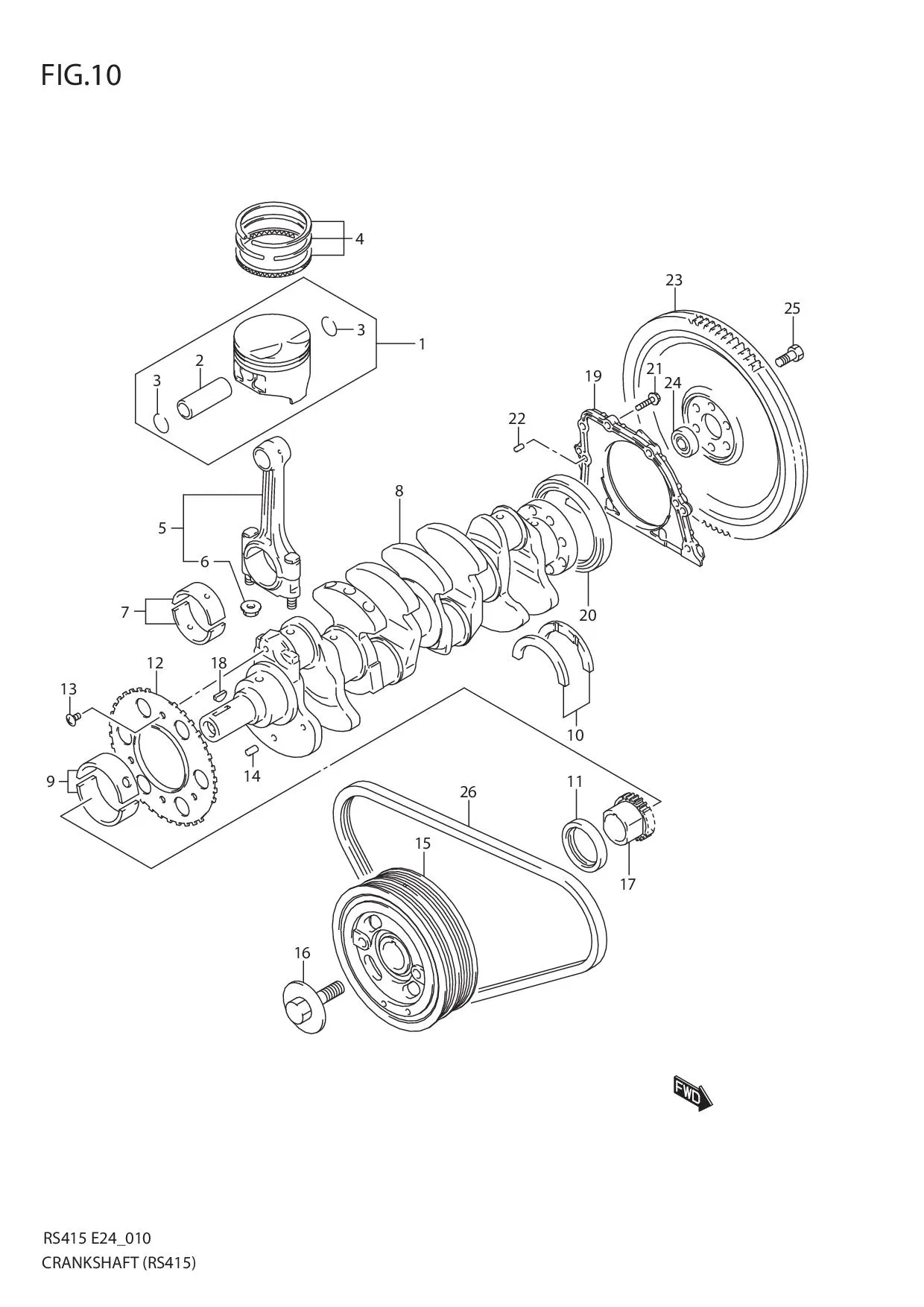

FIG.10 CRANKSHAFT (RS415)

FIG.10 CRANKSHAFT (RS415)
No No. Part Description Qty Price Per Pcs Remarks
1-2 12100-54812-050 PISTON SET (OS:0.50) 4 Rp667.500
1-1 12100-54812-000 PISTON SET (STD) 4 Rp667.500
2 12151-85FA0-000 •PIN, PISTON 4 Rp78.000
3 09381-20004-000 •CIRCLIP 8 Rp13.500
4-1 12140-81K00-000
SUB: 12140B54GA0N000		 RING SET, PISTON (STD) 4 Rp88.000
4-2 12140-81K00-050
SUB: 12140B54GA0N050		 RING SET, PISTON (OS:0.50) 4 Rp88.000
5 12160-69GB0-000
SUB: 12160-69GA0-000		 CONNECTING ROD ASSY 4 Rp1.106.500
6 09159-08114-000 •NUT 8 Rp22.500
7-9 12100-69830-0C0 BEARING SET, CONNROD (NON) 4 Rp146.500 STD,T:1.5; JSAEZC21S00104028%; JS2ZC21S 65100001%
7-12 12100-69830-025 BEARING SET, CONNROD (BLACK) 4 Rp144.000 STD,T:1.5; JSAEZC21S00104028%; JS2ZC21S 65100001%
7-11 12100-69830-0E0 BEARING SET, CONNROD (BLUE) 4 Rp162.500 STD,T:1.5; JSAEZC21S00104028%; JS2ZC21S 65100001%
7-10 12100-69830-0D0 BEARING SET, CONNROD (YELLOW) 4 Rp159.000 STD,T:1.5; JSAEZC21S00104028%; JS2ZC21S 65100001%
7-8 12100-69830-0B0 BEARING SET, CONNROD (BLACK) 4 Rp154.000 STD,T:1.5; JSAEZC21S00104028%; JS2ZC21S 65100001%
7-7 12100-69830-0A0 BEARING SET, CONNROD (GREEN) 4 Rp149.500 STD,T:1.5; JSAEZC21S00104028%; JS2ZC21S 65100001%
7-5 12100-69830-0E0
SUB: 12300-69810-0E0		 BEARING SET, CONNROD (BLUE) 4 Rp162.500 STD,T:1.5
7-4 12100-69830-0D0
SUB: 12300-69810-0D0		 BEARING SET, CONNROD (YELLOW) 4 Rp159.000 STD,T:1.5
7-3 12100-69830-0C0
SUB: 12300-69810-0C0		 BEARING SET, CONNROD (NON COLOR) 4 Rp146.500 STD,T:1.5
7-2 12100-69830-0B0
SUB: 12300-69810-0B0		 BEARING SET, CONNROD (BLACK) 4 Rp154.000 STD,T:1.5
7-1 12100-69830-0A0
SUB: 12300-69810-0A0		 BEARING SET, CONNROD (GREEN) 4 Rp149.500 STD,T:1.5
7-6 12100-69830-025
SUB: 12300-69810-025		 BEARING SET, CONNROD 4 Rp144.000 US:0.25,T:1.625
8 12221-69GA0-000 CRANKSHAFT 1 Rp9.935.000
9-10 12340-57K02-0B0
SUB: 12340-58BA0-0Z0		 BEARING SET (BROWN) 5 Rp227.500 STD,T:2; JSAEZC21S00104028%; JS2ZC21S 65100001%
9-12 12300-57820-0DA
SUB: 12300-58810-0BA		 BEARING SET (RED/BLACK) 5 Rp297.500 US:0.25,T:2.125
9-13 12300-57820-0EA
SUB: 12300-58810-0CA		 BEARING SET (RED) 5 Rp266.500 US:0.25,T:2.125
9-14 12300-57820-0AA
SUB: 12300-58810-0YA		 BEARING SET (RED/PURPLE) 5 Rp313.000 US:0.25,T:2.125
9-15 12300-57820-0BA
SUB: 12300-58810-0ZA		 BEARING SET (RED/BROWN) 5 Rp304.000 US:0.25,T:2.125
9-16 12300-57820-0CA
SUB: 12300-58820-0AA		 BEARING SET (RED/GREEN) 5 Rp268.500 US:0.25,T:2.125; JSAEZC21S00104028%; JS2ZC21S 65100001%
9-17 12300-57820-0DA
SUB: 12300-58820-0BA		 BEARING SET (RED/BLACK) 5 Rp297.500 US:0.25,T:2.125; JSAEZC21S00104028%; JS2ZC21S 65100001%
9-18 12300-57820-0EA
SUB: 12300-58820-0CA		 BEARING SET (RED) 5 Rp266.500 US:0.25,T:2.125; JSAEZC21S00104028%; JS2ZC21S 65100001%
9-19 12300-57820-0AA
SUB: 12300-58820-0YA		 BEARING SET (RED/PURPLE) 5 Rp313.000 US:0.25,T:2.125; JSAEZC21S00104028%; JS2ZC21S 65100001%
9-20 12300-57820-0BA
SUB: 12300-58820-0ZA		 BEARING SET (RED/BROWN) 5 Rp304.000 US:0.25,T:2.125; JSAEZC21S00104028%; JS2ZC21S 65100001%
9-9 12340-57K02-0A0
SUB: 12340-58BA0-0Y0		 BEARING SET (PURPLE) 5 Rp247.500 STD,T:2; JSAEZC21S00104028%; JS2ZC21S 65100001%
9-8 12340-57K02-0E0
SUB: 12340-58BA0-0C0		 BEARING SET (NON) 5 Rp198.500 STD,T:2; JSAEZC21S00104028%; JS2ZC21S 65100001%
9-7 12340-57K02-0D0
SUB: 12340-58BA0-0B0		 BEARING SET (BLACK) 5 Rp219.000 STD,T:2; JSAEZC21S00104028%; JS2ZC21S 65100001%
9-6 12340-57K02-0C0
SUB: 12340-58BA0-0A0		 BEARING SET (GREEN) 5 Rp190.500 STD,T:2; JSAEZC21S00104028%; JS2ZC21S 65100001%
9-5 12340-57K02-0B0
SUB: 12340-58B00-0Z0		 BEARING SET (BROWN) 5 Rp227.500 STD,T:2
9-4 12340-57K02-0A0
SUB: 12340-58B00-0Y0		 BEARING SET (PURPLE) 5 Rp247.500 STD,T:2
9-3 12340-57K02-0E0
SUB: 12340-58B00-0C0		 BEARING SET (NON COLOR) 5 Rp198.500 STD,T:2
9-2 12340-57K02-0D0
SUB: 12340-58B00-0B0		 BEARING SET (BLACK) 5 Rp219.000 STD,T:2
9-1 12340-57K02-0C0
SUB: 12340-58B00-0A0		 BEARING SET (GREEN) 5 Rp190.500 STD,T:2
9-11 12300-57820-0CA
SUB: 12300-58810-0AA		 BEARING SET (RED/GREEN) 5 Rp268.500 US:0.25,T:2.125
10-1 12300-78890-000
SUB: 12300-60820-000		 BEARING SET, CRANK THRUST 1 Rp172.500 STD,T:2.5
10-2 12300-78890-012
SUB: 12300-60820-012		 BEARING SET, CRANK THRUST 1 Rp167.500 OS:0.125,T:2.563
10-3 12300-78890-000
SUB: 12300-60850-000		 BEARING SET, CRANK THRUST 1 Rp172.500 STD,T:2.5; JSAEZC21S00104028%; JS2ZC21S 65100001%
10-4 12300-78890-012
SUB: 12300-60850-012		 BEARING SET, CRANK THRUST 1 Rp167.500 OS:0.125,T:2.563; JSAEZC21S00104028%; JS2ZC21S 65100001%
11 09283-41003-000
SUB: 09283-41001-000		 SEAL, OIL (41X53X6) 1 Rp94.500
12 12222-69G00-000 PLATE, SENSOR 1 Rp98.500
13 DISCONTINUE
SUB: 09139-06051-000		 SCREW (6X10) 3 -
14 09205-05006-000 PIN (5X12) 1 Rp11.500
15 12610-69G00-000 PULLEY, CRANKSHAFT 1 Rp1.484.000
16 12619-69G10-000
SUB: 12619-69G00-000		 BOLT 1 Rp102.500
17 12631-54GA1-000
SUB: 12631-54G00-000		 SPROCKET, CRANK TIMING 1 Rp171.500
18 08341M31059-000 KEY 1 Rp4.500
19 11341-69G20-000
SUB: 11341-69G10-000		 HOUSING, OIL SEAL 1 Rp639.000
20 09283-83001-000 SEAL, OIL (83X103X8) 1 Rp344.500
21 09103-06282-000
SUB: 09103-06084-000		 BOLT (6X25) 7 Rp16.500
22 09206-06005-000
SUB: 09206B06005N000		 PIN (4X6X11) 2 Rp14.500
23 12620-69G01-000 FLYWHEEL 1 Rp3.853.500 MT
24 12623-61J00-000
SUB: 12623-71C00L000		 BEARING, INPUT 1 Rp39.500 MT
25 01550-1030B-000
SUB: 09103-10275-000		 BOLT (10X18.5) 8 Rp25.500 MT
26 95141-50F01-000
SUB: 95141B50F01N000		 BELT, WATER PUMP (4PK835) 1 Rp80.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
