SWIFT RS415

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEAD (RS413:30,E96)FIG.3 CYLINDER HEAD (RS413:35,RS415)FIG.4 CYLINDERFIG.5 OIL PANFIG.6 ENGINE MOUNTING (MT:RS413)FIG.7 ENGINE MOUNTING (MT:RS415)FIG.8 ENGINE MOUNTING (AT)FIG.9 CRANKSHAFT (RS413)FIG.10 CRANKSHAFT (RS415)FIG.11 CAM SHAFT/VALVE (RS413:E30,E96)FIG.12 CAM SHAFT/VALVE (RS413:E3, RS415)FIG.13 CAM CHAIN (RS413:E30,E96)FIG.14 CAM CHAIN (RS413:E35, RS415)FIG.15 INTAKE MANIFOLDFIG.16 THROTTLE BODYFIG.17 AIR CLEANERFIG.18 EXHAUST MANIFOLDFIG.19 MUFFLERFIG.20 FUEL PUMPFIG.21 DELIVERY PIPEFIG.22 OIL PUMP (RS413:E30,E96)FIG.23 OIL PUMP (RS413:E35, RS415)FIG.24 WATER PUMPFIG.25 RADIATORFIG.26 WATER HOSEFIG.27 EMISSION CONTROL (LHD)FIG.28 EMISSION CONTROL (RHD)FIG.29 LABEL

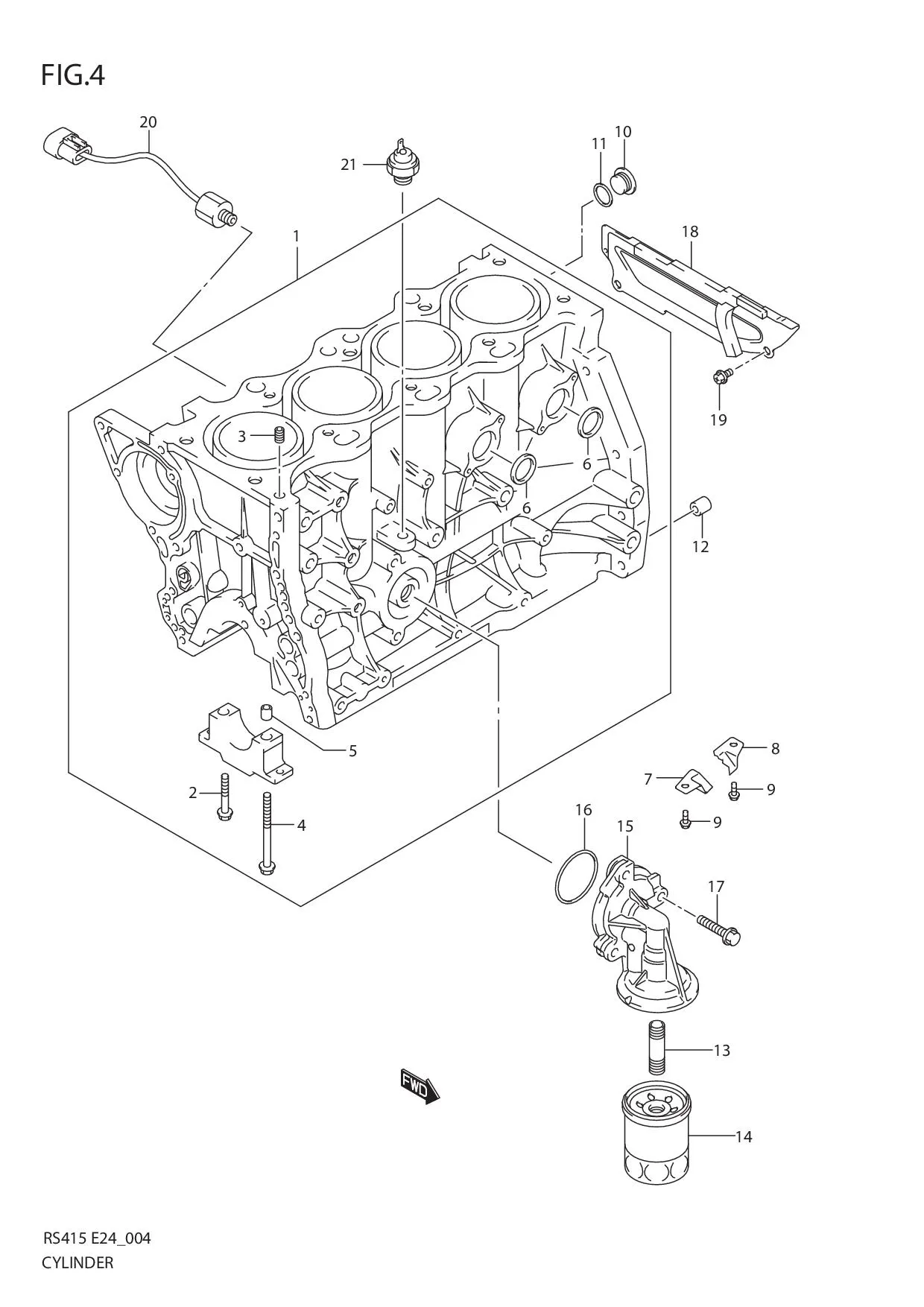

FIG.4 CYLINDER

FIG.4 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1-2 11200-54LB0-X12
SUB: 11200-54G04-000		 BLOCK ASSY, CYLINDER 1 Rp34.753.500 RS415
1-1 11200-69G05-000 BLOCK ASSY, CYLINDER 1 - RS413
2 01550-0840B-000
SUB: 01550-08403-000		 •BOLT 10 Rp5.500
3 11112-73010-000
SUB: 11112-73002-000		 •PLUG, OIL VENTURI 1 Rp24.000
4 11260-69G01-000
SUB: 11260-69G00-000		 •BOLT 10 Rp53.500
5 04211M13189-000 •PIN 5 Rp9.000
6 09241M30010-000
SUB: 09241-30009-000		 •PLUG (OD:30) 2 Rp5.500
7 DISCONTINUE
SUB: 11213-69G00-000		 PLATE, BREATHER FRONT 1 -
8 DISCONTINUE
SUB: 11214-69G00-000		 PLATE, BREATHER REAR 1 -
9 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
10 09248-18005-000 PLUG 1 Rp65.500
11 11216-77E00-000 GASKET 1 Rp21.000
12 09202-08004-000
SUB: 09202B08004N000		 PIN 2 Rp6.500
13 11241-86FA0-000 STAND, OIL FILTER 1 Rp88.000
14 16510-61A32-000
SUB: 16510-61A01-000		 FILTER ASSY, OIL 1 Rp164.000
15 16531-69G20-000
SUB: 16531-69G10-000		 CASE, OIL FLTR ADAPTER 1 Rp818.500
16 09280-62003-000 O RING 1 Rp43.500
17 01550-0830B-000
SUB: 01550-08303L000		 BOLT 3 Rp3.000
18 11320-63J00-000 PLATE, CL HSG LOWER 1 Rp136.500
19 02162-0610A-000
SUB: 02162-06103-000		 BOLT 2 Rp5.000
20 18640-78G00-000 SENSOR ASSY, KNOCK 1 Rp1.298.000
21 37820-80GP0-000
SUB: 37820-80G01-000		 SWITCH ASSY, OIL PRESSURE 1 Rp144.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
