SWIFT RS415

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEAD (RS413:30,E96)FIG.3 CYLINDER HEAD (RS413:35,RS415)FIG.4 CYLINDERFIG.5 OIL PANFIG.6 ENGINE MOUNTING (MT:RS413)FIG.7 ENGINE MOUNTING (MT:RS415)FIG.8 ENGINE MOUNTING (AT)FIG.9 CRANKSHAFT (RS413)FIG.10 CRANKSHAFT (RS415)FIG.11 CAM SHAFT/VALVE (RS413:E30,E96)FIG.12 CAM SHAFT/VALVE (RS413:E3, RS415)FIG.13 CAM CHAIN (RS413:E30,E96)FIG.14 CAM CHAIN (RS413:E35, RS415)FIG.15 INTAKE MANIFOLDFIG.16 THROTTLE BODYFIG.17 AIR CLEANERFIG.18 EXHAUST MANIFOLDFIG.19 MUFFLERFIG.20 FUEL PUMPFIG.21 DELIVERY PIPEFIG.22 OIL PUMP (RS413:E30,E96)FIG.23 OIL PUMP (RS413:E35, RS415)FIG.24 WATER PUMPFIG.25 RADIATORFIG.26 WATER HOSEFIG.27 EMISSION CONTROL (LHD)FIG.28 EMISSION CONTROL (RHD)FIG.29 LABEL

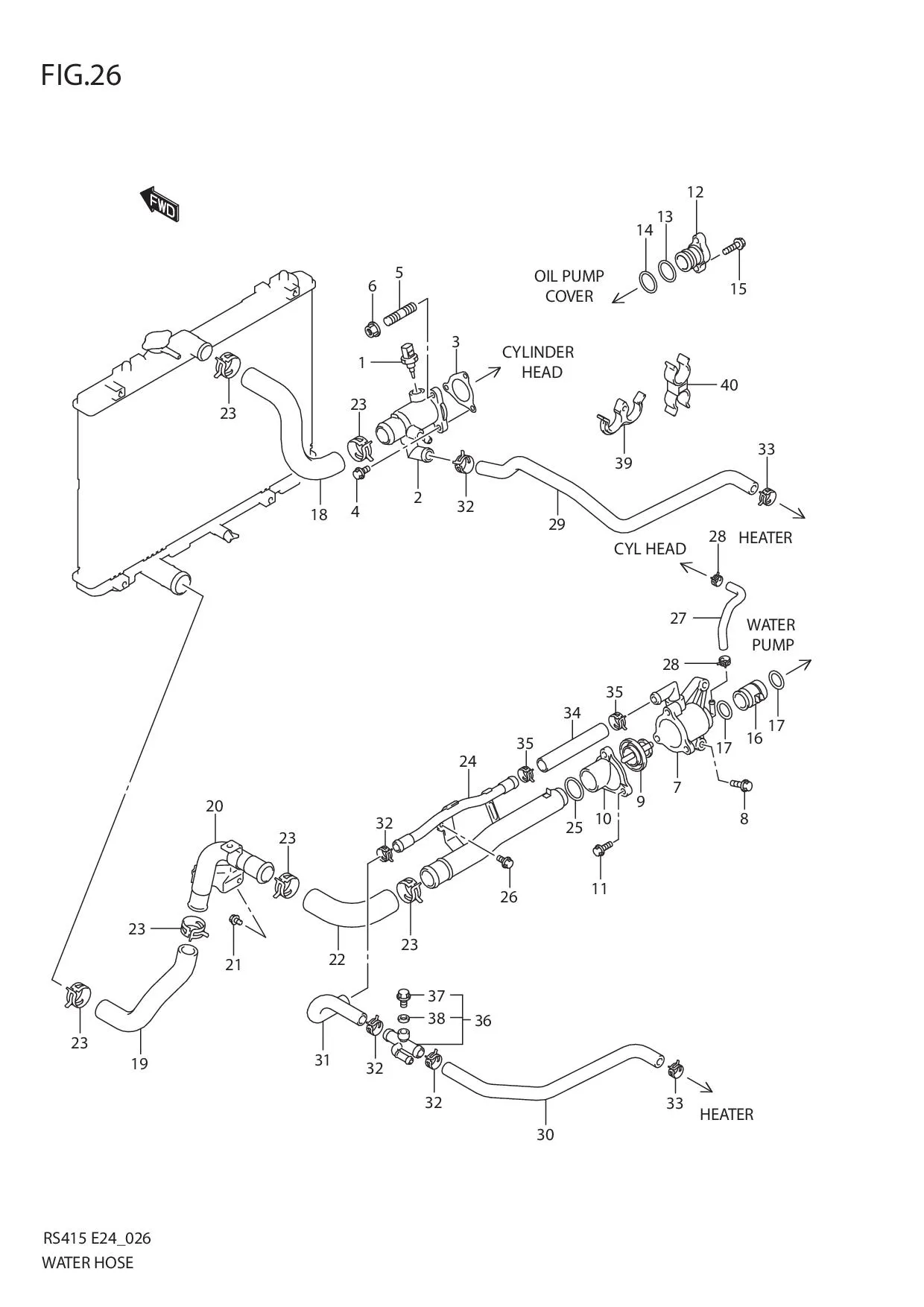

FIG.26 WATER HOSE

FIG.26 WATER HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 13650-54G00-000 SENSOR, WATER TEMPERATURE 1 Rp659.500
2 17570-86G00-000 CAP, WATER OUTLET 1 Rp492.500
3 17699-69G00-000 GASKET 1 Rp40.500
4 01550-0825A-000
SUB: 01550-08253-000		 BOLT 1 Rp3.500
5 01421-0825A-000
SUB: 01421-08253-000		 STUD BOLT 2 Rp13.000
6 08316-1008A-000
SUB: 08316B10083N000		 NUT 2 Rp3.500
7 17690-80JA0-000
SUB: 17690-63J00-000		 CASE, THERMOSTAT 1 Rp757.000
8 01550-0835B-000
SUB: 01550B08353N000		 BOLT 2 Rp4.500
9 17670-65D00-000 THERMOSTAT, WATER (82ßC) 1 Rp301.500
10 17561-80JA0-000
SUB: 17561-63J00-000		 CAP, WATER THERMOSTAT 1 Rp205.500
11 DISCONTINUE
SUB: 01550B06253N000		 BOLT 3 -
12 17581-69G00-000 CAP, WATER OUTLET 1 Rp384.000
13 17582-54D00-000 O RING, WATER OUTLET CAP NO.1 (D:3.5,ID:30.7) 1 Rp29.000
14 17583-54D00-000 O RING, WATER OUTLET CAP NO.2 (D:3.8,ID:27.7) 1 Rp32.000
15 01550-0845A-000
SUB: 01550-08453-000		 BOLT 2 Rp18.000
16 17831-69G00-000 PIPE, THERMOSTAT WATER OUTLET 1 Rp154.500
17 09280-28008-000
SUB: 09280B28008N000		 O RING 2 Rp2.500
18 17852-63J00-000 HOSE, RADIATOR INLET 1 Rp186.500
19 17854-63J00-000 HOSE, RADIATOR OUTLET 1 Rp156.500
20 17860-63J00-000 PIPE, WATER INLET NO.2 1 Rp384.000
21 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
22 DISCONTINUE
SUB: 17853B69G00N000		 HOSE, WATER INLET 1 -
23 09401-35404-000 CLIP 6 -
24 17840-86G00-000 PIPE, WTR INLET NO.1 1 Rp549.000
25 09280-28008-000
SUB: 09280B28008N000		 O RING 1 Rp2.500
26 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
27 17698-63J00-000 HOSE, WTR BYPASS 1 Rp74.000
28 09401-12410-000 CLIP 2 Rp15.000
29 17871-63J00-000 HOSE, HEATER INLET 1 Rp219.500
30 17872-63J01-000 HOSE, HEATER OUTLET NO.1 1 Rp128.000
31 17874-63J00-000 HOSE, HEATER OUTLET NO.2 1 Rp99.500
32 09401-21405-000 CLIP 4 Rp25.000
33 09401-21405-000
SUB: 09401-21404-000		 CLIP 2 Rp25.000
34 17873-81K00-000
SUB: 17873B69G00N000		 HOSE, WATER BYPASS 1 Rp16.500
35 09401-21405-000 CLIP 2 Rp25.000
36 17879-86G00-000 UNION, HEATER 1 Rp165.000
37 17568-50F00-000 •UNION, AIR VENT 1 Rp35.500
38 09168-06026-000 •GASKET 1 Rp20.000
39 DISCONTINUE
SUB: 09408-00117-000		 CLAMP 1 -
40 09408-00166-000 CLAMP 1 Rp41.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
