SWIFT RS415

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEAD (RS413:30,E96)FIG.3 CYLINDER HEAD (RS413:35,RS415)FIG.4 CYLINDERFIG.5 OIL PANFIG.6 ENGINE MOUNTING (MT:RS413)FIG.7 ENGINE MOUNTING (MT:RS415)FIG.8 ENGINE MOUNTING (AT)FIG.9 CRANKSHAFT (RS413)FIG.10 CRANKSHAFT (RS415)FIG.11 CAM SHAFT/VALVE (RS413:E30,E96)FIG.12 CAM SHAFT/VALVE (RS413:E3, RS415)FIG.13 CAM CHAIN (RS413:E30,E96)FIG.14 CAM CHAIN (RS413:E35, RS415)FIG.15 INTAKE MANIFOLDFIG.16 THROTTLE BODYFIG.17 AIR CLEANERFIG.18 EXHAUST MANIFOLDFIG.19 MUFFLERFIG.20 FUEL PUMPFIG.21 DELIVERY PIPEFIG.22 OIL PUMP (RS413:E30,E96)FIG.23 OIL PUMP (RS413:E35, RS415)FIG.24 WATER PUMPFIG.25 RADIATORFIG.26 WATER HOSEFIG.27 EMISSION CONTROL (LHD)FIG.28 EMISSION CONTROL (RHD)FIG.29 LABEL

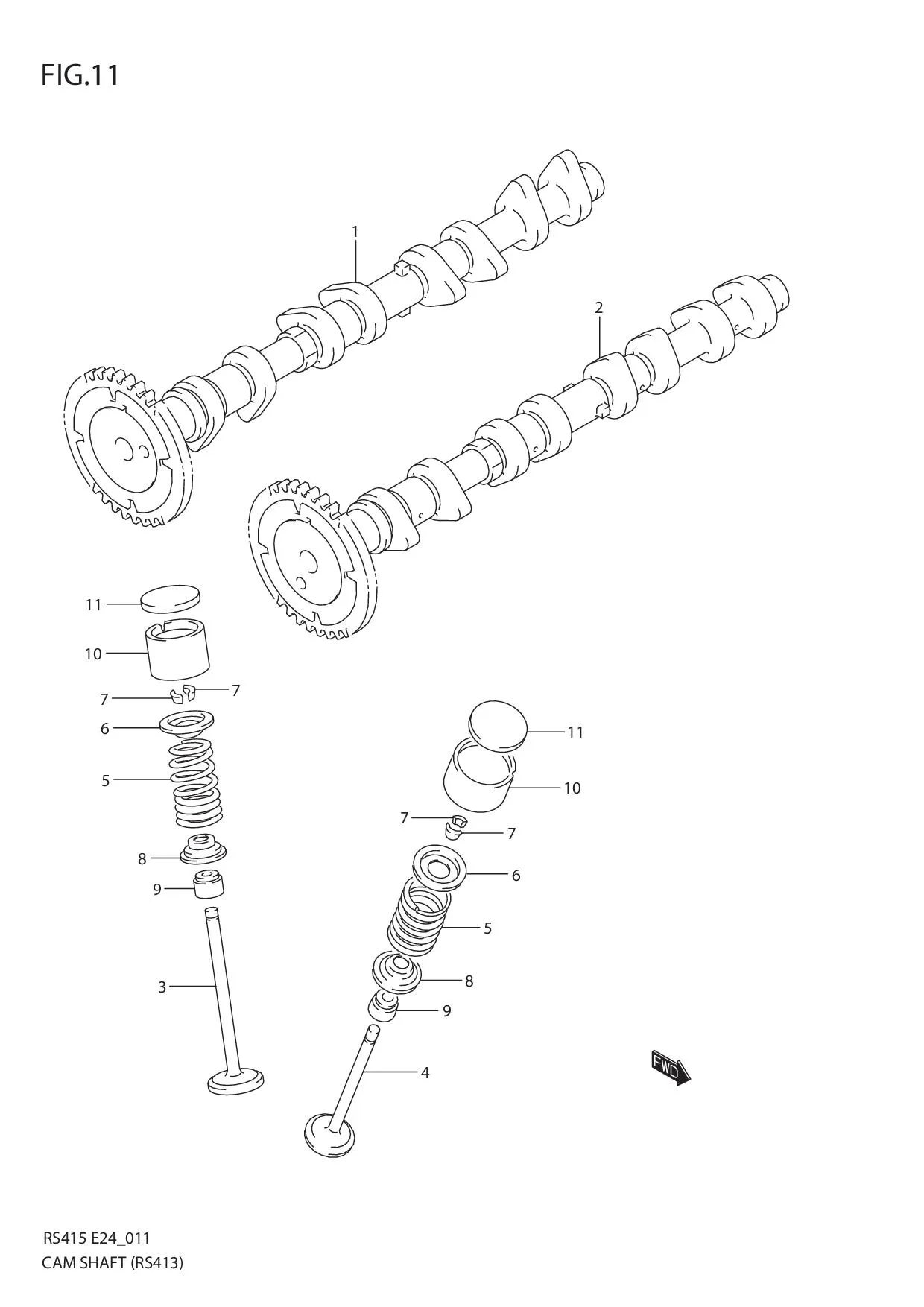

FIG.11 CAM SHAFT/VALVE (RS413:E30,E96)

FIG.11 CAM SHAFT/VALVE (RS413:E30,E96)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 12710-54G10-000		 CAM SHAFT, INTAKE 1 -
2 12720-54G12-000
SUB: 12720-54G10-000		 CAM SHAFT, EXHAUST 1 Rp5.205.500
3 12911-81K00-000
SUB: 12911B54G00N000		 VALVE, INTAKE 8 Rp140.500
4 12915-54G50-000 VALVE, EXHAUST 8 Rp325.500
5 12921-71C01-000 SPRING, VALVE 16 Rp60.500
6 12931-78G00-000 RETAINER, VALVE SPRING 16 Rp35.500
7 12932-24400-000 COTTER, VALVE 32 Rp13.000
8 12933-69G10-000 SEAT, VALVE SPRING 16 Rp24.000
9 DISCONTINUE
SUB: 09289B05012N000		 SEAL, OIL 16 -
10 12891-69G00-000 TAPPET 16 Rp274.500
11-18 12892-69G10-260 SHIM, TAPPET (T:2.60) 0 Rp80.000
11-34 12892-69G10-300 SHIM, TAPPET (T:3.00) 0 Rp83.000
11-19 12892-69G10-263 SHIM, TAPPET (T:2.63) 0 Rp83.500
11-20 12892-69G10-265 SHIM, TAPPET (T:2.65) 0 Rp83.000
11-21 12892-69G10-268 SHIM, TAPPET (T:2.68) 0 Rp85.000
11-22 12892-69G10-270 SHIM, TAPPET (T:2.70) 0 Rp83.000
11-23 12892-69G10-273 SHIM, TAPPET (T:2.73) 0 Rp84.500
11-24 12892-69G10-275 SHIM, TAPPET (T:2.75) 0 Rp83.500
11-25 12892-69G10-278 SHIM, TAPPET (T:2.78) 0 Rp83.500
11-26 12892-69G10-280 SHIM, TAPPET (T:2.80) 0 Rp83.000
11-27 12892-69G10-283 SHIM, TAPPET (T:2.83) 0 Rp85.000
11-28 12892-69G10-285 SHIM, TAPPET (T:2.85) 0 Rp85.000
11-29 12892-69G10-288 SHIM, TAPPET (T:2.88) 0 Rp85.000
11-30 12892-69G10-290 SHIM, TAPPET (T:2.90) 0 Rp85.000
11-31 DISCONTINUE
SUB: 12892-69G10-293		 SHIM, TAPPET (T:2.93) 0 -
11-32 12892-69G10-295 SHIM, TAPPET (T:2.95) 0 Rp83.500
11-33 12892-69G10-298 SHIM, TAPPET (T:2.98) 0 Rp85.000
11-9 12892-69G10-238 SHIM, TAPPET (T:2.38) 0 Rp84.500
11-1 12892-69G10-218 SHIM, TAPPET (T:2.18) 0 Rp85.000
11-2 12892-69G10-220 SHIM, TAPPET (T:2.20) 0 Rp83.000
11-3 12892-69G10-223 SHIM, TAPPET (T:2.23) 0 Rp84.500
11-4 12892-69G10-225 SHIM, TAPPET (T:2.25) 0 Rp84.500
11-5 12892-69G10-228 SHIM, TAPPET (T:2.28) 0 Rp84.500
11-6 12892-69G10-230 SHIM, TAPPET (T:2.30) 0 Rp84.500
11-7 12892-69G10-233 SHIM, TAPPET (T:2.33) 0 Rp84.500
11-8 12892-69G10-235 SHIM, TAPPET (T:2.35) 0 Rp84.500
11-17 12892-69G10-258 SHIM, TAPPET (T:2.58) 0 Rp83.500
11-10 12892-69G10-240 SHIM, TAPPET (T:2.40) 0 Rp84.500
11-11 12892-69G10-243 SHIM, TAPPET (T:2.43) 0 Rp82.500
11-12 12892-69G10-245 SHIM, TAPPET (T:2.45) 0 Rp82.500
11-13 12892-69G10-248 SHIM, TAPPET (T:2.48) 0 Rp83.000
11-14 12892-69G10-250 SHIM, TAPPET (T:2.50) 0 Rp80.000
11-15 12892-69G10-253 SHIM, TAPPET (T:2.53) 0 Rp80.000
11-16 12892-69G10-255 SHIM, TAPPET (T:2.55) 0 Rp83.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
