SWIFT RS415

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEAD (RS413:30,E96)FIG.3 CYLINDER HEAD (RS413:35,RS415)FIG.4 CYLINDERFIG.5 OIL PANFIG.6 ENGINE MOUNTING (MT:RS413)FIG.7 ENGINE MOUNTING (MT:RS415)FIG.8 ENGINE MOUNTING (AT)FIG.9 CRANKSHAFT (RS413)FIG.10 CRANKSHAFT (RS415)FIG.11 CAM SHAFT/VALVE (RS413:E30,E96)FIG.12 CAM SHAFT/VALVE (RS413:E3, RS415)FIG.13 CAM CHAIN (RS413:E30,E96)FIG.14 CAM CHAIN (RS413:E35, RS415)FIG.15 INTAKE MANIFOLDFIG.16 THROTTLE BODYFIG.17 AIR CLEANERFIG.18 EXHAUST MANIFOLDFIG.19 MUFFLERFIG.20 FUEL PUMPFIG.21 DELIVERY PIPEFIG.22 OIL PUMP (RS413:E30,E96)FIG.23 OIL PUMP (RS413:E35, RS415)FIG.24 WATER PUMPFIG.25 RADIATORFIG.26 WATER HOSEFIG.27 EMISSION CONTROL (LHD)FIG.28 EMISSION CONTROL (RHD)FIG.29 LABEL

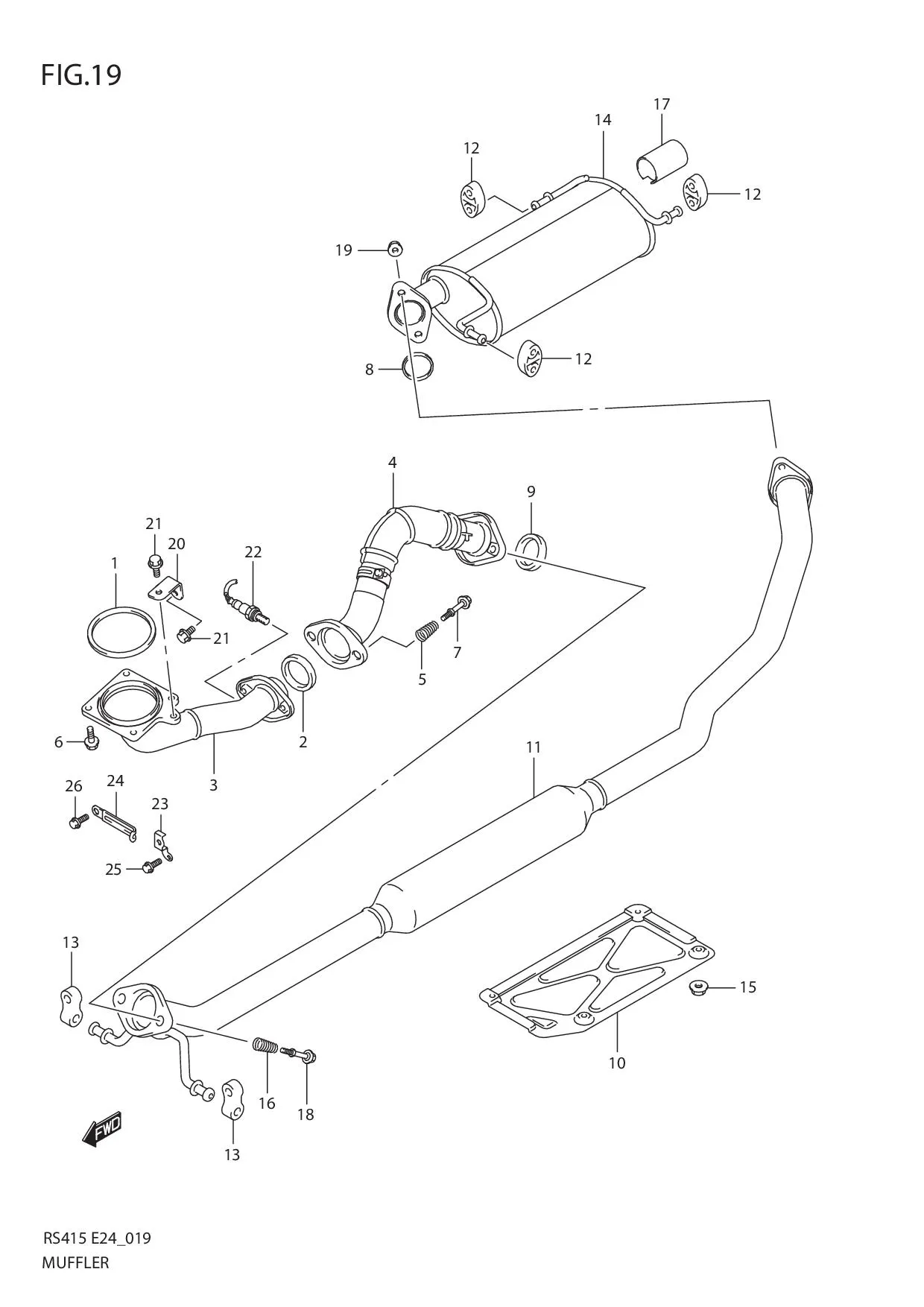

FIG.19 MUFFLER

FIG.19 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-70H00-000 GASKET, EXH MANF 1 Rp109.500
2-1 14183-76A00-000 SEAL RING 1 Rp126.500 RS413
2-2 14183-65D00-000 SEAL RING 1 Rp161.000 RS415
3-1 14190-63J00-000 PIPE, EXH NO.1 1 - RS413
3-2 14190-63JC0-000
SUB: 14190-63J10-000		 PIPE, EXH NO.1 1 Rp2.264.500 RS415
4-1 14220-63J00-000 PIPE, EXH NO.2 1 - RS413
4-2 DISCONTINUE
SUB: 14220-63J10-000		 PIPE, EXH NO.2 1 - RS415
5 14492-67D00-000 SPRING 2 Rp64.000
6 09103-10324-000 BOLT (10X20) 4 Rp30.000
7 09119-10073-000 BOLT (10X65) 2 Rp75.000
8 14182-58B10-000 GASKET, EXH PIPE 1 Rp70.000
9 14183-65D00-000 SEAL RING 1 Rp161.000
10 DISCONTINUE
SUB: 14231-63J00-000		 INSULATOR, HEAT 1 -
11 DISCONTINUE
SUB: 14250-63J00-000		 PIPE, EXH CENTER 1 -
12 14281-80JA0-000
SUB: 14281-70H00-000		 MOUNTING 3 Rp67.500
13 14281-71C01-000 MOUNTING 2 Rp87.500
14 14300-63JB1-000
SUB: 14300-63J00-000		 MUFFLER 1 Rp3.022.000
15 14357-72J00-000 NUT 4 Rp14.500
16 14492-67D00-000 SPRING 2 Rp64.000
17 DISCONTINUE
SUB: 14630-63J00-000		 PIPE, TAIL 1 - RS415
18 09119-10073-000 BOLT (10X65) 2 Rp75.000
19 09159M10049-000 NUT 2 Rp10.500
20 DISCONTINUE
SUB: 14271B63J00N000		 STIFFENER 1 -
21 09103-10324-000 BOLT (10X20) 2 Rp30.000
22 18213-63J12-000
SUB: 18213-63J10-000		 SENSOR, OXYGEN 1 Rp2.899.000
23 DISCONTINUE
SUB: 18214-63J00-000		 BRACKET 1 -
24 DISCONTINUE
SUB: 09404-08206-000		 CLAMP 1 -
25 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
26 01550-0812A-000
SUB: 01550B08123N000		 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
