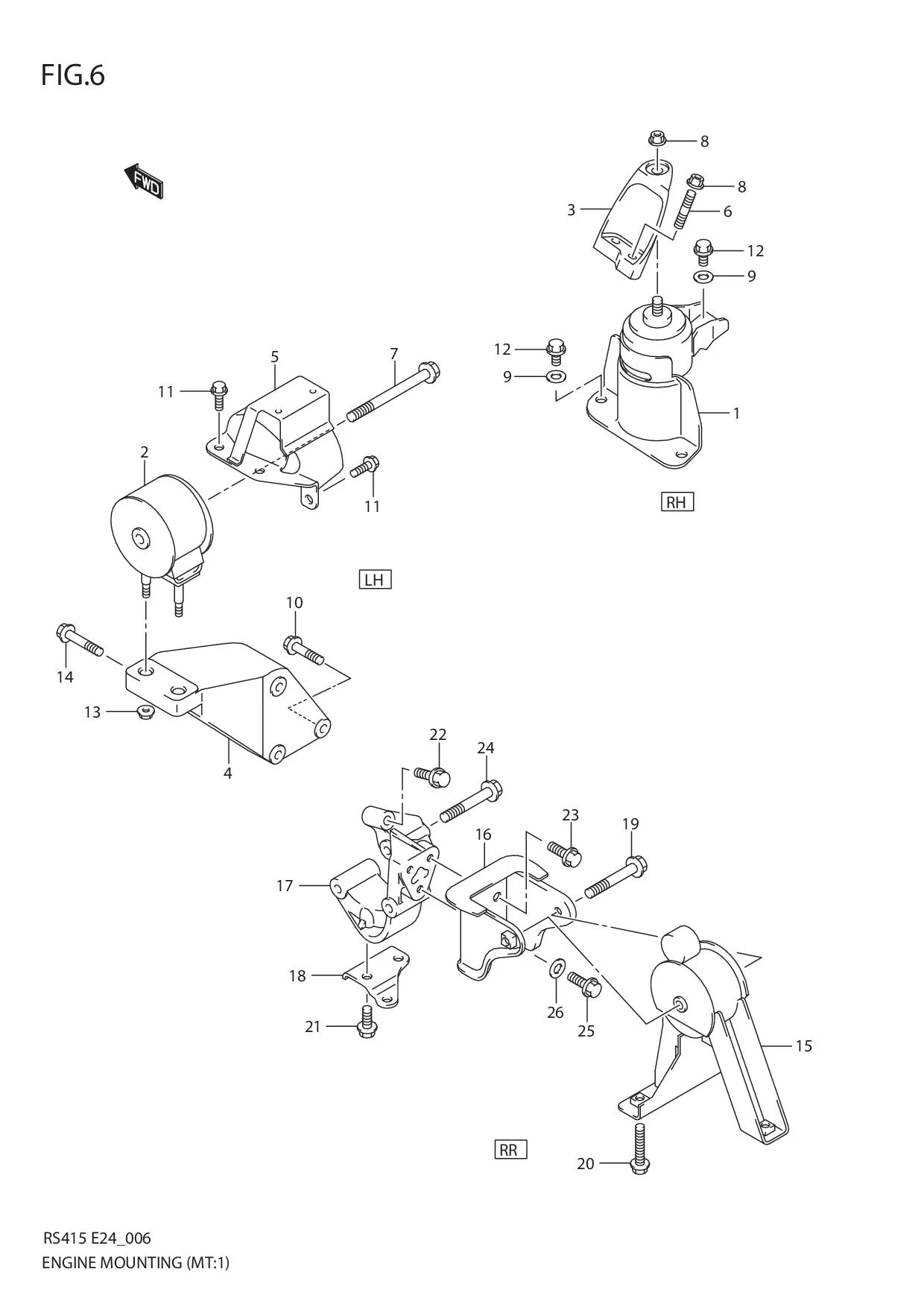

FIG.6 ENGINE MOUNTING (MT:RS413)

FIG.6 ENGINE MOUNTING (MT:RS413)
No No. Part Description Qty Price Per Pcs Remarks
1 11610-63J10-000
SUB: 11610-63J00-000		 MOUNTING, ENG RH 1 Rp950.500
2 11620-63J00-000 MOUNTING, ENG LH 1 Rp709.000
3 DISCONTINUE
SUB: 11641-63J00-000		 BRACKET, ENG MTG RH 1 -
4 11651-63J00-000 BRACKET, ENG LH MTG 1 Rp1.009.500
5 DISCONTINUE
SUB: 11671-63J00-000		 BRACKET, ENG LH MTG BODY 1 -
6 09108-10136-000 STUD BOLT 3 Rp31.500
7 DISCONTINUE
SUB: 09113-12001-000		 BOLT (10X150) 1 -
8 09159-10115-000
SUB: 09159-10058-000		 NUT 4 Rp23.000
9 DISCONTINUE
SUB: 09160-10119-000		 WASHER (10.5X22X1.6) 3 -
10 01550-1045A-000
SUB: 01550-10453-000		 BOLT 1 Rp11.500
11 01551-0825A-000
SUB: 01551-08253-000		 BOLT 3 Rp16.000
12 01551-1025A-000
SUB: 01551-10253-000		 BOLT 3 Rp29.000
13 08316-1010A-000
SUB: 08316-10103-000		 NUT 2 Rp3.500
14 01550-1060A-000
SUB: 01550-10603-000		 BOLT 2 Rp5.500
15-1 11710-63J20-000 MOUNTING, ENG RR 1 Rp1.176.000 E30,E96
15-2 11710-63J20-000
SUB: 11710-63J00-000		 MOUNTING, ENG RR 1 Rp1.176.000 E35
16 DISCONTINUE
SUB: 11740-63J00-000		 BRACKET, ENG RR MTG 1 -
17 DISCONTINUE
SUB: 11749-63J01-000		 BRACKET, ENG RR MTG 1 -
18 DISCONTINUE
SUB: 11751-63J00-000		 STIFFENER 1 -
19 09103-10337-000 BOLT (10X85) 1 Rp42.500
20 09113-10004-000 BOLT (10X85) 3 Rp29.000
21 01550-1025A-000
SUB: 01550-10253-000		 BOLT 3 Rp3.500
22 01550-1050B-000
SUB: 01550-10503-000		 BOLT 1 Rp24.000
23 DISCONTINUE
SUB: 09103-10313-000		 BOLT (10X30) 2 -
24 DISCONTINUE
SUB: 01550M10753-000		 BOLT 3 -
25 DISCONTINUE
SUB: 09103-10313-000		 BOLT (10X30) 1 -
26 09160-10093-000 WASHER (10.5X24X2.3) 1 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
