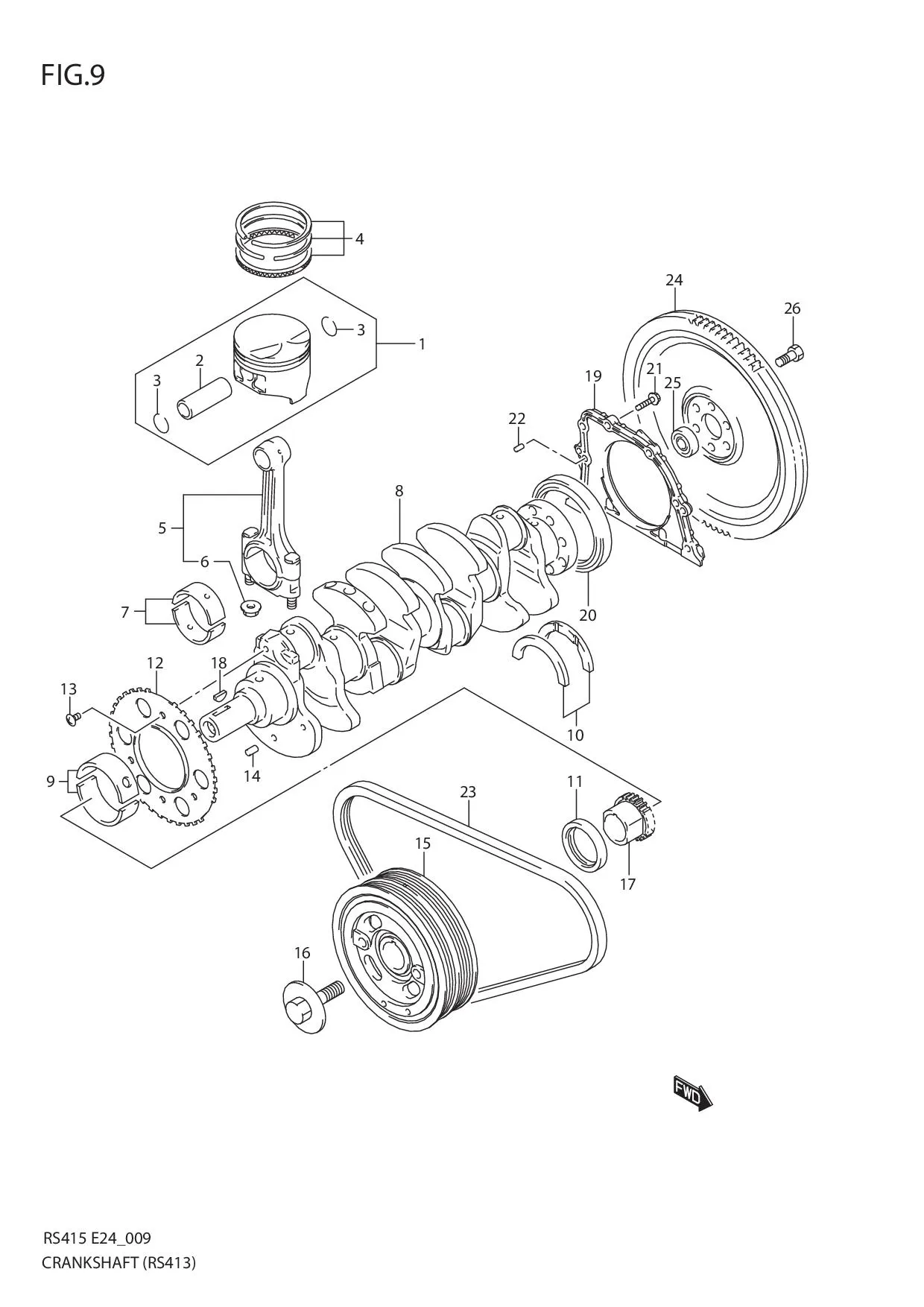

FIG.9 CRANKSHAFT (RS413)

FIG.9 CRANKSHAFT (RS413)
No No. Part Description Qty Price Per Pcs Remarks
1-2 12100-69811-050 PISTON SET (OS:0.50) 4 Rp764.000
1-1 12100-69811-000 PISTON SET (STD) 4 Rp769.000
2 12151-85FA0-000 •PIN, PISTON 4 Rp78.000
3 09381-20004-000 •CIRCLIP 8 Rp13.500
4-1 12140-81K00-000
SUB: 12140B54GA0N000		 RING SET, PISTON (STD) 4 Rp88.000
4-2 12140-81K00-050
SUB: 12140B54GA0N050		 RING SET, PISTON (OS:0.50) 4 Rp88.000
5 12160-70H00-000 CONNECTING ROD ASSY 4 -
6 09159-08114-000 •NUT 8 Rp22.500
7-3 12100-70880-0C0 BEARING SET, CONNROD (NON COLOR) 4 Rp199.500 STD,T:1.5
7-6 12100-70880-025 BEARING SET, CONNROD 4 Rp206.000 US:0.25,T:1.625
7-5 12100-70880-0E0 BEARING SET, CONNROD (BLUE) 4 Rp211.000 STD,T:1.5
7-4 12100-70880-0D0 BEARING SET, CONNROD (YELLOW) 4 Rp199.500 STD,T:1.5
7-2 12100-70880-0B0 BEARING SET, CONNROD (BLACK) 4 Rp206.000 STD,T:1.5
7-1 12100-70880-0A0 BEARING SET, CONNROD (GREEN) 4 Rp199.500 STD,T:1.5
8 12221-69G10-000 CRANKSHAFT 1 Rp10.085.000
9-7 12300-69850-0BA BEARING SET (RED/PURPLE) 5 - US:0.25,T:2.125
9-10 12300-75840-0BA BEARING SET (RED/BLACK) 5 - US:0.25,T:2.125
9-9 12300-75840-0AA BEARING SET (RED/GREEN) 5 - US:0.25,T:2.125
9-8 12300-69850-0CA BEARING SET (RED/BROWN) 5 - US:0.25,T:2.125
9-6 12300-69850-0AA BEARING SET (RED/PINK) 5 - US:0.25,T:2.125
9-4 12340-75FA0-0A0 BEARING SET (GREEN) 5 Rp167.500 STD,T:2
9-3 12340-69GA0-0C0 BEARING SET (BROWN) 5 - STD,T:2
9-2 12340-69GA0-0B0 BEARING SET (PURPLE) 5 - STD,T:2
9-1 12340-69GA0-0A0 BEARING SET (PINK) 5 - STD,T:2
9-5 12340-75FA0-0B0 BEARING SET (BLACK) 5 Rp167.500 STD,T:2
10-1 12300-78890-000
SUB: 12300-60850-000		 BEARING SET, CRANK THRUST 1 Rp172.500 STD,T:2.5
10-2 12300-78890-012
SUB: 12300-60850-012		 BEARING SET, CRANK THRUST 1 Rp167.500 OS:0.125,T:2.563
11 09283-41003-000
SUB: 09283-41001-000		 SEAL, OIL (41X53X6) 1 Rp94.500
12 12222-69G00-000 PLATE, SENSOR 1 Rp98.500
13 DISCONTINUE
SUB: 09139-06051-000		 SCREW (6X10) 3 -
14 09205-05006-000 PIN 1 Rp11.500
15 12610-69G00-000 PULLEY, CRANKSHAFT 1 Rp1.484.000
16 12619-69G10-000
SUB: 12619-69G00-000		 BOLT 1 Rp102.500
17 12631-54GA1-000
SUB: 12631-54G00-000		 SPROCKET, CRANK TIMING 1 Rp171.500
18 08341M31059-000 KEY 1 Rp4.500
19 11341-69G20-000
SUB: 11341-69G10-000		 HOUSING, OIL SEAL 1 Rp639.000
20 09283-83001-000 SEAL, OIL (83X103X8) 1 Rp344.500
21 09103-06282-000
SUB: 09103-06084-000		 BOLT (6X25) 7 Rp16.500
22 09206-06005-000
SUB: 09206B06005N000		 PIN (4X6X11) 2 Rp14.500
23 95141-50F01-000
SUB: 95141B50F01N000		 BELT, WATER PUMP (4PK835) 1 Rp80.500
24 12620-69G01-000 FLYWHEEL 1 Rp3.853.500 MT
25 12623-61J00-000
SUB: 12623-71C00L000		 BEARING 1 Rp39.500 MT
26 09100-10275-000 BOLT (10X18.5) 8 Rp30.500 MT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
