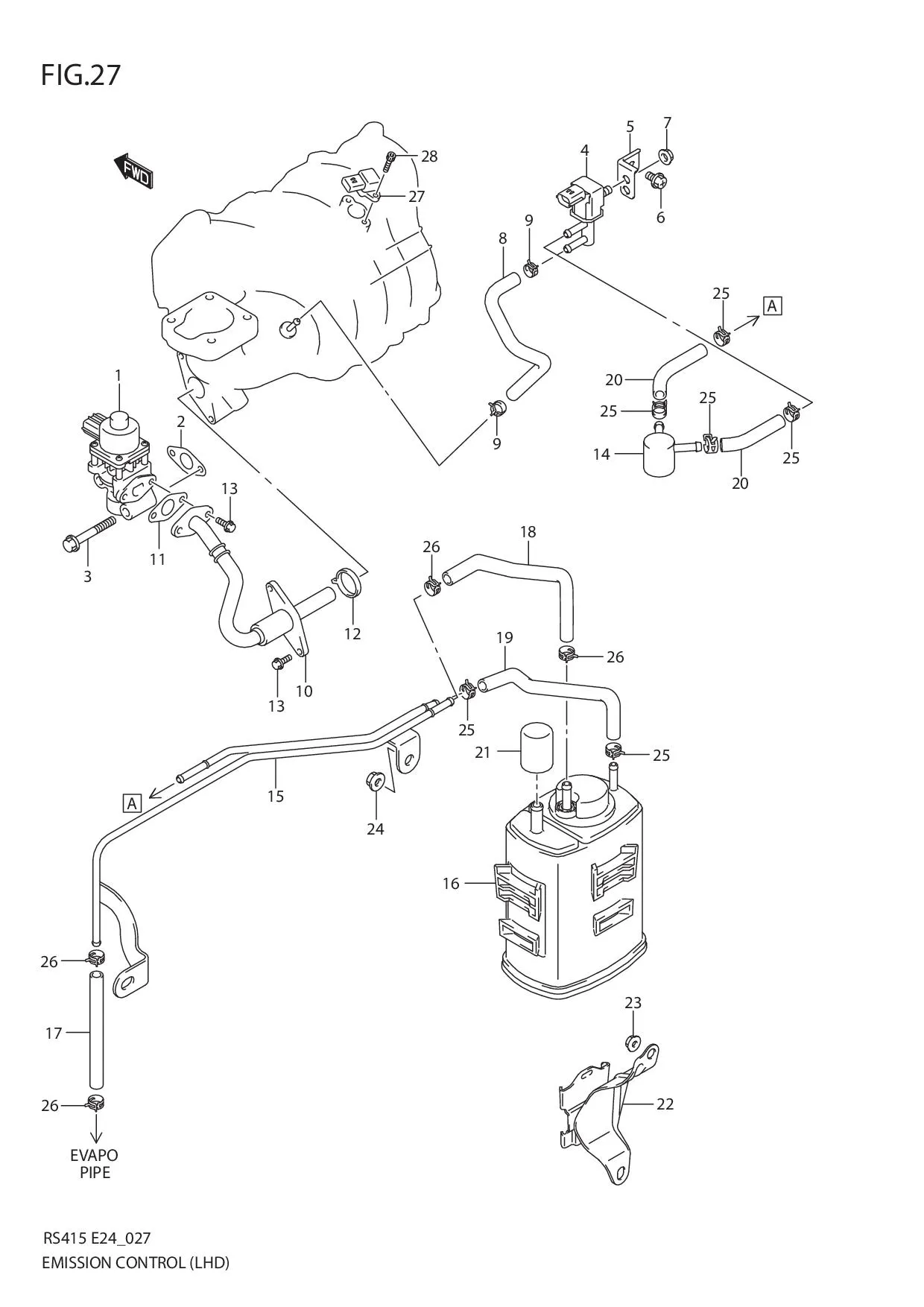

FIG.27 EMISSION CONTROL (LHD)

FIG.27 EMISSION CONTROL (LHD)
No No. Part Description Qty Price Per Pcs Remarks
09401-10409-000
SUB: 09401-11419-000		 CLIP 1 Rp7.500
09355-56128-600 HOSE(5.6X12.4X600) 1 Rp94.000
18563-63J20-000 HOSE,PURGE CSTR TO PIPE 1 -
18562-63J11-000 HOSE,CANISTER INLET NO.2 1 -
1 18111-69G01-000
SUB: 18111-69G00-000		 VALVE, EGR 1 Rp3.581.000
2 18529-69G00-000 GASKET 1 Rp23.500
3 01550-0855B-000
SUB: 01550-08553-000		 BOLT 2 Rp24.000
4 DISCONTINUE
SUB: 18117-52G00-000		 VALVE ASSY, DUTY FOR PURGE 1 -
5 DISCONTINUE
SUB: 18417-63J00-000		 BRACKET 1 -
6 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
7 08316-1006A-000
SUB: 08316-10063L000		 NUT 1 Rp2.000
8 18564-63J01-000
SUB: 18564-63J00-000		 HOSE, PURGE 1 Rp74.500
9 09401-10409-000
SUB: 09401B10409N000		 CLIP 2 Rp7.500
10 DISCONTINUE
SUB: 18530-86G00-000		 PIPE, EGR 1 -
11 18533-77E00-000 GASKET 1 Rp29.500
12 18534-86G00-000 GASKET 1 Rp56.500
13 01550-0616A-000
SUB: 01550-06163-000		 BOLT 4 Rp3.500
14 18145-83E00-000
SUB: 18145M83E00-000		 CHAMBER, PURGE VALVE 1 Rp71.000
15 18340-62J11-000 PIPE,PURGE 1 -
16 DISCONTINUE
SUB: 18560-81AA0-000		 CANISTER 1 -
17 09355-56128-600
SUB: 09355-54128-600		 HOSE, CANISTER INLET NO.1 1 Rp94.000 L:600!100
18 18562-63J10-000 HOSE, CANISTER INLET NO.2 1 -
19 18563-63J10-000 HOSE, PURGE (CSTR TO PIPE) 1 -
20 09355-54115-600 HOSE, PURGE (PIPE TO VSV) 2 Rp106.500 L:600!70
21 18571-65H20-000
SUB: 18571B65H20N000		 CAP 1 Rp11.000
22 18570-63J10-000 BRACKET 1 -
23 08316-1006A-000
SUB: 08316-10063L000		 NUT 2 Rp2.000
24 08316-1006A-000
SUB: 08316-10063L000		 NUT 2 Rp2.000
25 09401-10409-000
SUB: 09401B10409N000		 CLIP 6 Rp7.500
26 09401M11419-000 CLIP 4 Rp6.000
27 18590-68H00-000
SUB: 18590-72F21-000		 SENSOR, MAP 1 Rp1.998.500
28 07130-05163-000 BOLT 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
