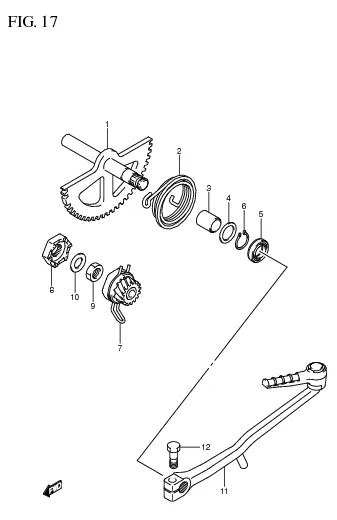

FIG. 17 KICK STARTER

FIG. 17 KICK STARTER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	26210-09J10-000 SUB: 26210B09J10N000	SHAFT, KICK STARTER	1	Rp118.000
2	26212-46G20-000 SUB: 26212B46G00N000	SPRING, KICK STARTER SHAFT	1	Rp13.000
3	26213-09J00-000 SUB: 26213B09J00N000	BUSH, KICK SHAFT	1	Rp5.500
4	09160-14053-000 SUB: 09160B14053N000	WASHER (14.5X22X0.8)	1	Rp5.500
5	09283-14016-000 SUB: 09283B14L05N000	SEAL (14X24X6)	1	Rp13.000
6	08331-31149-000 SUB: 08331B31149N000	CIRCLIP	1	Rp7.500
7	26200-09J10-000 SUB: 26200B09J10N000	GEAR ASSY, KICK STR DRIVEN (NT:9)	1	Rp101.500
8	26231-33G00-000 SUB: 26231B33G00N000	STARTER, KICK, RH	1	Rp46.000
9	09140-12037-000 SUB: 09140B12037N000	NUT	1	Rp8.500
10	09164-12020-000 SUB: 09164B12020N000	WASHER (12.2X22X1.2)	1	Rp9.500
11	26300-09J00-000 SUB: 26300B09J00N000	LEVER ASSY, KICK STARTER	1	Rp83.500
12	26314-33G00-000 SUB: 26314B33G00N000	BOLT, KICK STARTER LEVER	1	Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
