Suzuki Nex Fi

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEAD COVER FIG. 2 CYLINDER HEAD FIG. 3 CYLINDER FIG. 4 CRANKCASE FIG. 5 CRANKCASE COVER FIG. 6 CRANKSHAFT FIG. 7 CAMSHAFT/VALVE FIG. 8 CAM CHAIN FIG. 9 THROTTLE BODY FIG. 10 AIR CLEANER FIG. 11 MUFFLER FIG. 12 OIL PUMP FIG. 13 FUEL PUMP FIG. 14 COOLING FAN FIG. 15 TRANSMISSION FIG. 16 TRANSMISSION (2)FIG. 17 KICK STARTER

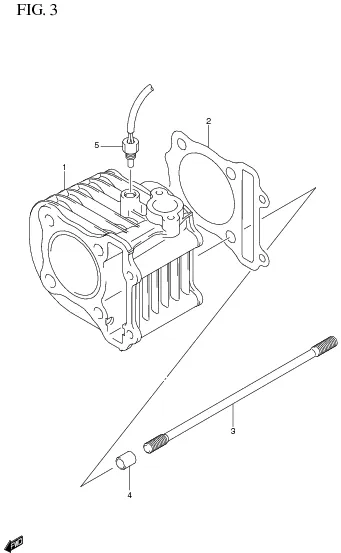

FIG. 3 CYLINDER

FIG. 3 CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11210-09J10-0F0 SUB: 11210B09J10N0F0	CYLINDER	1	Rp381.500
2	11241-09J00-000 SUB: 11241B09J00N000	GASKET, CYLINDER	1	Rp6.500
3	09108-08272-000 SUB: 09108B08272N000	STUD BOLT	4	Rp26.500
4	09206-10016-000 SUB: 09206B10016N000	PIN (8.2X10X13)	2	Rp3.500
5	13640-09J11-000 SUB: 13640B09J00N000	SENSOR, ENGINE TEMP	1	Rp182.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
