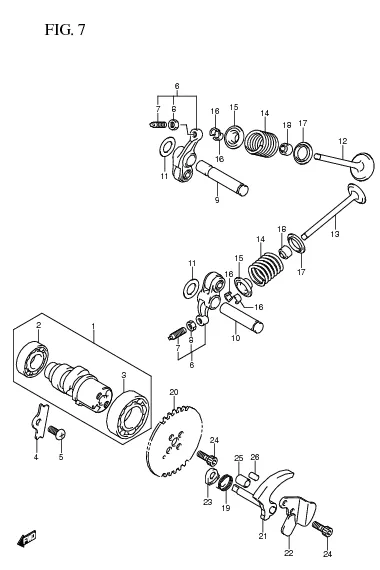

FIG. 7 CAMSHAFT/VALVE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12710-09J00-000 SUB: 12710B09J00N000	CAMSHAFT COMP	1	Rp248.500
2	08113-60020-000 SUB: 08113B60020N000	.BEARING	1	Rp14.000	RH
3	08110-69050-000 SUB: 08113B69050N000	.BEARING	1	Rp53.000	LH
4	12862-09J10-000 SUB: 12862B09J00N000	RETAINER, CAMSHAFT	1	Rp5.000
5	02112-0612A-000 SUB: 02112B0612AN000	SCREW	1	Rp3.500
6	12840-09J30-000 SUB: 12840B09J00N000	ARM ASSY, VALVE ROCKER	2	Rp141.500
7	12842-09J20-000 SUB: 12842B09J00N000	.SCREW, TAPPET ADJUSTING	2	Rp4.500
8	12843-27A00-000	.NUT, TAPPET ADJUSTING	2	Rp19.000
9	12861-09J00-000 SUB: 12861B09J00N000	SHAFT, VALVE ROCKER ARM INTAKE	1	Rp17.500
10	12871-09J00-000 SUB: 12871B09J00N000	SHAFT, VALVE ROCKER ARM EXHAUST	1	Rp14.500
11	09164-10017-000 SUB: 09164B10012N000	WASHER	2	Rp10.500
12	12911-22J00-000 SUB: 12911B09J00N000	VALVE, INTAKE	1	Rp25.000
13	12912-22J00-000 SUB: 12912B09J00N000	VALVE, EXHAUST	1	Rp40.500
14	12921-09J00-000 SUB: 12921B09J00N000	SPRING, VALVE	2	Rp11.000
15	12931-09G00-000 SUB: 12931B09G00N000	RETAINER, VALVE SPRING	2	Rp13.000
16	12932-09G00-000	COTTER, VALVE	4	Rp4.500
17	12933-09G00-000 SUB: 12933B09G00N000	SEAT, VALVE SPRING	2	Rp9.000
18	09289-05L01-000 SUB: 09289B05L01N000	SEAL (4.4X10.5X8.4)	2	Rp7.000
19	12725-20G00-000 SUB: 12725B20G00N000	SPRING, DECOMP CAM	1	Rp3.000
20	12741-09J00-000 SUB: 12741B09J00N000	SPROCKET, CAMSHAFT (NT:34)	1	Rp52.500
21	12950-09J20-000 SUB: 12950B09J00N000	CAM, DECOMPRESSION	1	Rp41.000
22	12954-09G10-000 SUB: 12954B09G10N000	STOPPER, DECOMP CAM	1	Rp25.000
23	12955-33G00-000 SUB: 12955B33G00N000	WASHER, DECOMP SHAFT	1	Rp11.500
24	09106-05028-000 SUB: 09106B05028N000	BOLT (5X15)	2	Rp6.500
25	09206-08008-000 SUB: 09206B08008N000	PIN (6.3X8X12)	1	Rp4.000
26	09261-05005-000 SUB: 09261B05005N000	PIN (5X8)	1	Rp3.000
