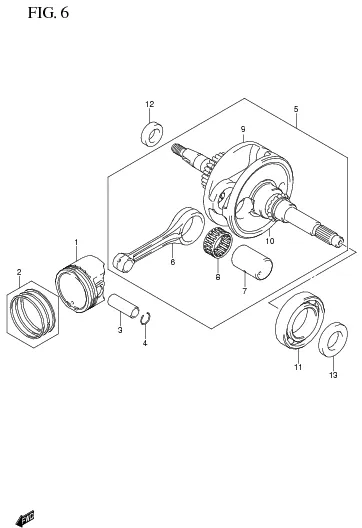

FIG. 6 CRANKSHAFT

FIG. 6 CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	12111-09J00-0F0 SUB: 12111B09J00N0F0	PISTON STD	1	Rp97.000
1-2	12111-09J00-050 SUB: 12111B09J00N050	PISTON OS 0.50	1	Rp97.000	OPT
2-1	12140-09J01-0F0 SUB: 12140B09J00N0F0	RING SET,PISTON STD	1	Rp33.500
2-2	12140-09J01-050 SUB: 12140B09J00N050	RING SET,PISTON OS 0.50	1	Rp42.000	OPT
3	12151-09J00-000 SUB: 12151B09J00N000	PIN, PISTON	1	Rp9.500
4	09381-13001-000 SUB: 09381B13001N000	CIRCLIP	2	Rp3.000
5	12200-09JF0-000 SUB: 12200B09J00N000	CRANKSHAFT ASSY	1	Rp778.000
6	12161-09J00-0B0 SUB: 12161B09J00N0B0	.CONNROD	1	Rp100.000
7	12211-09J02-000 SUB: 12211B09J00N000	.PIN,CRANK	1	Rp30.500
8	09263-25070-0B0 SUB: 09263B25070N0B0	.BEARING (25.1X30.1X13.8)	1	Rp35.000
9	12220-09J10-000 SUB: 12220B09J00N000	.CRANKSHAFT COMP,R	1	Rp260.500
10	12261-09JB0-000 SUB: 12260B09J00N000	.CRANKSHAFT,L	1	Rp226.000
11	09262-35088-000 SUB: 09262B35088N000	BEARING (35X62X14)	1	Rp88.500	LH
12	09283-16L01-000 SUB: 09283B16L01N000	SEAL (16X26X7)	1	Rp17.500	RH
13	09283-22L02-000 SUB: 09283B22L02N000	SEAL (22X38X6)	1	Rp21.000	LH

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
