Suzuki Nex Fi

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEAD COVERFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 CAMSHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 THROTTLE BODYFIG. 10 AIR CLEANERFIG. 11 MUFFLERFIG. 12 OIL PUMPFIG. 13 FUEL PUMPFIG. 14 COOLING FANFIG. 15 TRANSMISSIONFIG. 16 TRANSMISSION (2)FIG. 17 KICK STARTER

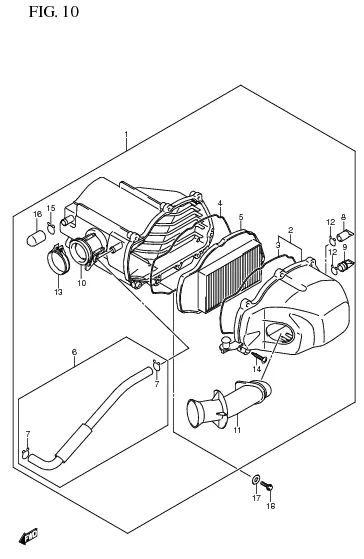

FIG. 10 AIR CLEANER

FIG. 10 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-09JA1-000
SUB: 13700B09JA0N000		 CLEANER ASSY, AIR 1 Rp201.500
2 13740-09J00-000
SUB: 13740B09J00N000		 .CAP, AIR CLEANER 1 Rp29.000
3 13746-09J00-000
SUB: 13746B09J00N000		 ..GASKET 1 Rp7.000
4 13746-09J00-000
SUB: 13746B09J00N000		 .GASKET 1 Rp7.000
5 13780-09J00-000
SUB: 13780B09J00N000		 .FILTER ASSY, AIR CLEANER 1 Rp44.500
6 13850-09JA1-000
SUB: 13850B09JA0N000		 .TUBE,BREATHER 1 Rp18.000
7 09401-13409-000
SUB: 09401B13409N000		 ..CLIP 2 Rp8.500
8 13871-10J00-000
SUB: 13871B10J00N000		 .PLUG, DRAIN 1 Rp4.000
9 13878-09J00-000
SUB: 13878B09J00N000		 .TUBE, DRAIN 1 Rp4.000
10 13881-09JA0-000
SUB: 13881B09JA0N000		 .TUBE, OUTLET 1 Rp37.500
11 13891-09JA0-000
SUB: 13891B09JA0N000		 .TUBE, INLET 1 Rp36.500
12 13824-18910-000
SUB: 13824B18910N000		 .CLIP 2 Rp3.500
13 09402-36208-000 .CLAMP 1 Rp31.500
14 03541-0525A-000
SUB: 03541B0525AN000		 .SCREW 7 Rp3.500
15 09401-13409-000
SUB: 09401B13409N000		 .CLIP 1 Rp8.500
16 13859-41B10-000 .PLUG 1 Rp44.500
17 09160-06028-000
SUB: 09160B06028N000		 WASHER (6.5X18X1) 3 Rp3.500
18 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 3 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
