Suzuki Nex Fi

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEAD COVERFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 CAMSHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 THROTTLE BODYFIG. 10 AIR CLEANERFIG. 11 MUFFLERFIG. 12 OIL PUMPFIG. 13 FUEL PUMPFIG. 14 COOLING FANFIG. 15 TRANSMISSIONFIG. 16 TRANSMISSION (2)FIG. 17 KICK STARTER

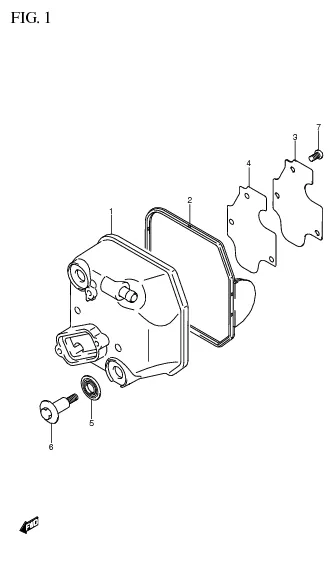

FIG. 1 CYLINDER HEAD COVER

FIG. 1 CYLINDER HEAD COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11170-09J10-000
SUB: 11170B09J10N000		 COVER, CYLINDER HEAD 1 Rp251.500
2 11173-09J00-000
SUB: 11173B09J00N000		 GASKET, CYLINDER HEAD COVER 1 Rp30.500
3 11176-09J00-000
SUB: 11176B09J00N000		 PLATE, BREATHER 1 Rp4.500
4 11177-09J00-000
SUB: 11177B09J00N000		 GASKET, BREATHER PLATE 1 Rp7.000
5 11191-27E40-000
SUB: 11191B27E40N000		 WASHER, HEAD COVER BOLT 2 Rp13.000
6 09119-06120-000
SUB: 09119B06120N000		 BOLT 2 Rp11.000
7 DISCONTINUE
SUB: 02112B0510AN000		 SCREW 3 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
