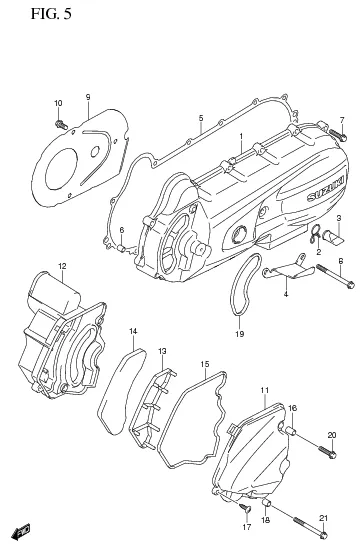

FIG. 5 CRANKCASE COVER

FIG. 5 CRANKCASE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11340-09J00-000
SUB: 11340B09J00N000		 COVER, CLUTCH 1 Rp533.000
2 11344-13H00-000
SUB: 11344B13H00N000		 CLIP 1 Rp3.000
3 11345-13H10-000
SUB: 11345B13H10N000		 PLUG, WATER DRAIN 1 Rp4.500
4 11347-09J00-000
SUB: 11347B09J00N000		 PLATE, CLUTCH COVER LOWER 1 Rp9.500
5 11482-09J00-000
SUB: 11482B09J00N000		 GASKET, CLUTCH COVER(NA) 1 Rp20.500
6 09206-08008-000
SUB: 09206B08008N000		 PIN (6.3X8X12) 2 Rp4.000
7 01547-0625A-000
SUB: 01547B0625AN000		 BOLT 12 Rp6.500
8 01547-0670A-000
SUB: 01547B0670AN000		 BOLT 1 Rp7.500
9 11346-09J00-000
SUB: 11346B09J00N000		 PLATE, CLUTCH COVER AIR INTAKE 1 Rp19.000
10 01547-0610A-000
SUB: 01547B0612AN000		 BOLT 3 Rp3.000
11 11381-09J00-000
SUB: 11381B09J00N000		 DUCT, BELT COOLING NO.1 1 Rp23.000
12 11382-09J00-000
SUB: 11382B09J00N000		 DUCT, BELT COOLING NO.2 1 Rp17.500
13 11383-09J00-000
SUB: 11383B09J00N000		 PLATE, BELT COOLING DUCT 1 Rp6.500
14 11384-09J00-000
SUB: 11384B09J00N000		 FILTER, BELT COOLING 1 Rp20.500
15 11386-09J00-000
SUB: 11386B09J00N000		 GASKET, BELT COOLING DUCT NO.2 1 Rp4.000
16 09180-06268-000 .SPACER (6.5X9X13.5) 1 Rp13.000
17 09180-06307-000
SUB: 09180B06307N000		 .SPACER (6.5X9X10) 1 Rp5.000
18 03541-0516A-000
SUB: 03541B0516AN000		 .SCREW 1 Rp3.500
19 11385-09J00-000
SUB: 11385B09J00N000		 GASKET, BELT COOLING DUCT NO.1 1 Rp3.000
20 01547-0625A-000
SUB: 01547B0625AN000		 BOLT 1 Rp6.500
21 01547-0660A-000
SUB: 01547B0660AN000		 BOLT 1 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
