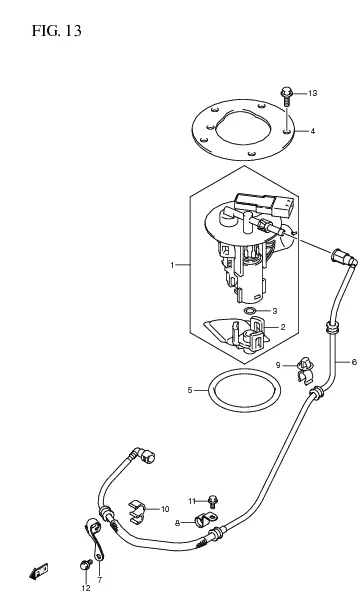

FIG. 13 FUEL PUMP

FIG. 13 FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-09JA1-000
SUB: 15100B09JA0N000		 PUMP ASSY, FUEL 1 Rp1.230.000
2 15420-09JA0-000
SUB: 15420B09JA0N000		 .FILTER,SUCTION 1 Rp279.500
3 15424-09JA0-000
SUB: 15424B09JA0N000		 .O RING 1 Rp12.000
4 15121-09JB0-000
SUB: 15121B09JA0N000		 PLATE, FUEL PUMP 1 Rp10.000
5 15201-09JA0-000
SUB: 15201B09JA0N000		 O RING, FUEL PUMP 1 Rp54.500
6 15810-09JA0-000
SUB: 15810B09JA0N000		 HOSE, FUEL 1 Rp190.500
7 DISCONTINUE
SUB: 15891B09JA0N000		 CLAMP, FUEL HOSE FR 1 -
8 15892-09JA0-000
SUB: 15892B09JA0N000		 CLAMP, FUEL HOSE MR 1 Rp7.000
9 15893-09JA0-000
SUB: 15893B09JA0N000		 CLAMP, FUEL HOSE RR 2 Rp11.000
10 15894-09JA0-000
SUB: 15894B09JA0N000		 CLIP, FUEL HOSE FR 1 Rp11.500
11 01547-0610A-000
SUB: 01547B0610AN000		 BOLT 1 Rp3.000
12 01547-0610A-000
SUB: 01547B0612AN000		 BOLT 1 Rp3.000
13 01547-0610A-000
SUB: 01547B0612AN000		 BOLT 5 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
