Suzuki Nex Fi

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEAD COVERFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 CAMSHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 THROTTLE BODYFIG. 10 AIR CLEANERFIG. 11 MUFFLERFIG. 12 OIL PUMPFIG. 13 FUEL PUMPFIG. 14 COOLING FANFIG. 15 TRANSMISSIONFIG. 16 TRANSMISSION (2)FIG. 17 KICK STARTER

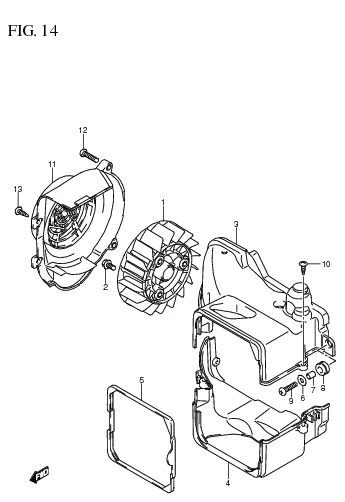

FIG. 14 COOLING FAN

FIG. 14 COOLING FAN
No No. Part Description Qty Price Per Pcs Remarks
1 17110-09J00-000
SUB: 17110B09J00N000		 FAN, COOLING 1 Rp30.500
2 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 3 -
3 17121-09JA0-000
SUB: 17121B09JA0N000		 COWLING, CYLINDER UPPER 1 Rp40.500
4 17122-09JA0-000
SUB: 17122B09JA0N000		 COWLING, CYLINDER LOWER 1 Rp40.500
5 17123-09J00-000
SUB: 17123B09J00N000		 MOLD, CYLINDER COWLING 1 Rp17.500
6 09160-06129-000
SUB: 09160B06129N000		 WASHER (6.5X16X1) 1 Rp5.500
7 09180-06307-000
SUB: 09180B06307N000		 SPACER (6.5X9X10) 1 Rp5.000
8 09320-09016-000
SUB: 09320-09016L000		 CUSHION 1 Rp4.000
9 02112-0625A-000
SUB: 02112B0625AN000		 SCREW 1 Rp4.000
10 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
11 17130-09J50-000
SUB: 17130B09J00N000		 COWLING, FAN 1 Rp35.500
12 02112-1625A-000
SUB: 02112B1625AN000		 SCREW 2 Rp3.500
13 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
