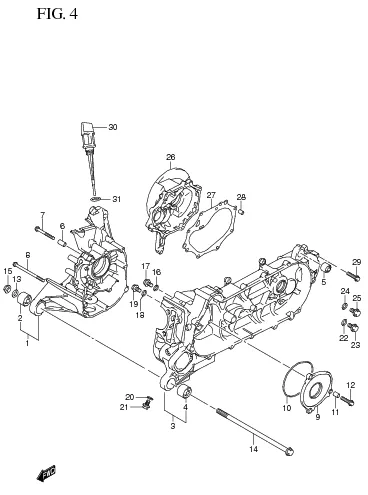

FIG. 4 CRANKCASE

No	No. Part	Description	Qty	Price Per Pcs
1	11310-09811-000 SUB: 11310B09J00N000	CRANKCASE RH	1	Rp514.500
2	11315-09J01-000 SUB: 11315B09J00N000	.BUSH, ENGINE MTG	1	Rp35.000
3	11320-09J00-000 SUB: 11320B09J00N000	CRANKCASE LH	1	Rp869.500
4	11315-09J01-000 SUB: 11315B09J00N000	.BUSH, ENGINE MTG	1	Rp35.000
5	11316-09J00-000 SUB: 11316B09J00N000	BUSH, REAR SHOCK ABS	1	Rp17.000
6	09206-10014-000 SUB: 09206B10014N000	PIN (6.4X10X20)	2	Rp3.000
7	01547-0655A-000 SUB: 01547B0655AN000	BOLT	5	Rp7.500
8	01547-0695A-000 SUB: 01547B0695AN000	BOLT	2	Rp7.500
9	11323-09J00-000 SUB: 11323B09J00N000	CAP, CRANKCASE LH	1	Rp126.500
10	11324-09J00-000 SUB: 11324B09J00N000	O RING, CRANKCASE LH CAP	1	Rp5.500
11	09206-08008-000 SUB: 09206B08008N000	PIN (6.3X8X12)	2	Rp4.000
12	01547-0625A-000 SUB: 01547B0625AN000	BOLT	3	Rp6.500
13	11362-09J00-000 SUB: 11362B09J00N000	WASHER, ENG MTG NUT	1	Rp4.000
14	09103-10084-000 SUB: 09103B10084N000	BOLT (10X235)	1	Rp32.500
15	08316-1010A-000 SUB: 08316B1010AN000	NUT	1	Rp3.500
16	09168-08016-000 SUB: 09168B08016N000	GASKET (8.2X14X1)	2	Rp25.000
17	01550-0812A-000 SUB: 01550B0812AN000	PLUG	2	Rp3.500
18	09168-08016-000 SUB: 09168B08016N000	GASKET (8.2X14X1)	1	Rp25.000
19	01550-0812A-000 SUB: 01550B0812AN000	PLUG	1	Rp3.500
20	09168-08016-000 SUB: 09168B08016N000	GASKET (8.2X14X1)	1	Rp25.000
21	01550-0812A-000 SUB: 01550B0812AN000	PLUG	1	Rp3.500
22	09168-08016-000 SUB: 09168B08016N000	GASKET (8.2X14X1)	1	Rp25.000
23	01550-0812A-000 SUB: 01550B0812AN000	PLUG	1	Rp3.500
24	09168-08016-000 SUB: 09168B08016N000	GASKET (8.2X14X1)	1	Rp25.000
25	01550-0812A-000 SUB: 01550B0812AN000	PLUG	1	Rp3.500
26	11430-09821-000 SUB: 11431B09J00N000	COVER, GEAR BOX	1	Rp352.500
27	11484-09J00-000 SUB: 11484B09J00N000	GASKET, GEAR BOX COVER	1	Rp8.500
28	09206-08008-000 SUB: 09206B08008N000	PIN (6.3X8X12)	2	Rp4.000
29	01547-0630A-000 SUB: 01547B0630AN000	BOLT	8	Rp6.500
30	11971-09J00-000 SUB: 11971B09J00N000	GAUGE, OIL LEVEL	1	Rp23.000
31	09280-17003-000 SUB: 09280-17003L000	O RING (D:3.1,ID:16.8)	1	Rp2.000
