Suzuki Nex Fi

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEAD COVER FIG. 2 CYLINDER HEAD FIG. 3 CYLINDER FIG. 4 CRANKCASE FIG. 5 CRANKCASE COVER FIG. 6 CRANKSHAFT FIG. 7 CAMSHAFT/VALVE FIG. 8 CAM CHAIN FIG. 9 THROTTLE BODY FIG. 10 AIR CLEANER FIG. 11 MUFFLER FIG. 12 OIL PUMP FIG. 13 FUEL PUMP FIG. 14 COOLING FAN FIG. 15 TRANSMISSION FIG. 16 TRANSMISSION (2)FIG. 17 KICK STARTER

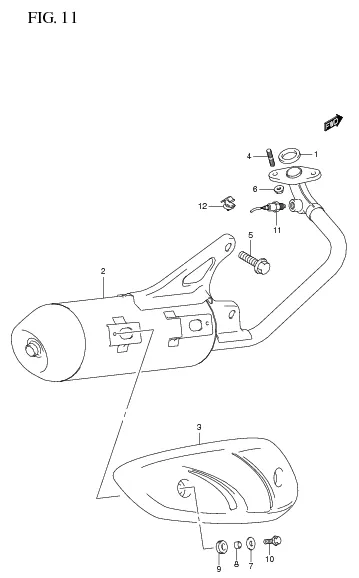

FIG. 11 MUFFLER

FIG. 11 MUFFLER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	14181-30A20-000 SUB: 14181B30A20N000	GASKET, EXH PIPE	1	Rp4.000
2	14310-09J20-000 SUB: 14310B09J30N000	BODY , MUFFLER	1	Rp1.143.500
3	14781-09J00-000 SUB: 14781B09J00N000	COVER,MUF	1	Rp47.500
4	01421-0616A-000 SUB: 01421B0616AN000	BOLT	2	Rp3.500
5	01550-1040A-000 SUB: 01550B1040AN000	BOLT	2	Rp7.000
6	08316-1006A-000 SUB: 08316B1006AN000	NUT	2	Rp2.000
7	09160-06028-000 SUB: 09160B06028N000	WASHER (6.5X18X1)	2	Rp3.500
8	09180-06256-000 SUB: 09180B06256N000	SPACER (6.5X9X5.7)	2	Rp3.000
9	09320-08051-000 SUB: 09320B08051N000	CUSHION	2	Rp3.000
10	01550-0616A-000 SUB: 01550B0616AN000	BOLT	2	Rp3.500
11	18213-09JA1-000 SUB: 18213B09JA0N000	SENSOR, OXYGEN	1	Rp444.500
12	09403-05L03-000 SUB: 09403B05L03N000	CLAMP	1	Rp12.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
