Suzuki Nex Fi

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEAD COVER FIG. 2 CYLINDER HEAD FIG. 3 CYLINDER FIG. 4 CRANKCASE FIG. 5 CRANKCASE COVER FIG. 6 CRANKSHAFT FIG. 7 CAMSHAFT/VALVE FIG. 8 CAM CHAIN FIG. 9 THROTTLE BODY FIG. 10 AIR CLEANER FIG. 11 MUFFLER FIG. 12 OIL PUMP FIG. 13 FUEL PUMP FIG. 14 COOLING FAN FIG. 15 TRANSMISSION FIG. 16 TRANSMISSION (2)FIG. 17 KICK STARTER

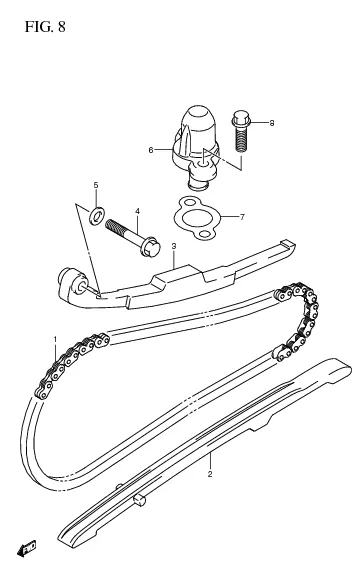

FIG. 8 CAM CHAIN

FIG. 8 CAM CHAIN

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12760-09J00-000 SUB: 12760B09J00N000	CHAIN, CAMSHAFT DRIVE	1	Rp148.500
2	12771-09J00-000	GUIDE, CAM CHAIN	1	Rp17.500
3	12811-09J00-000 SUB: 12811B09J00N000	TENSIONER, CAM CHAIN	1	Rp47.000
4	09103-06247-000 SUB: 09103B06247N000	BOLT (6X32)	1	Rp4.000
5	09168-06004-000 SUB: 09168B06004N000	GASKET (6.2X11X1.2)	1	Rp2.500
6	12830-09J00-000 SUB: 12830B32G02N000	ADJUSTER ASSY, TENSIONER	1	Rp96.000
7	12837-46G10-000 SUB: 12837B46G10N000	GASKET, TENSIONER ADJUSTER(NA)	1	Rp4.000
8	01547-0620B-000 SUB: 01547B0620AN000	BOLT	2	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
