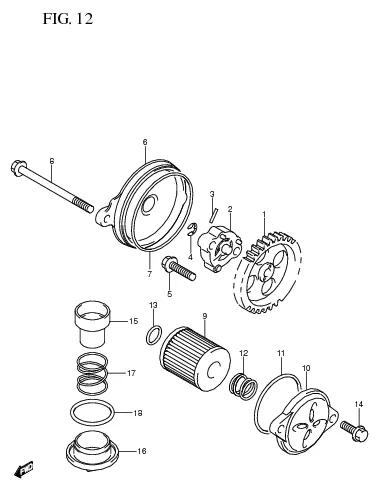

FIG. 12 OIL PUMP

FIG. 12 OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16331-09J00-000
SUB: 16331B09J00N000		 GEAR, OIL PUMP DRIVEN (NT:43) 1 Rp25.000
2 16400-09J00-000
SUB: 16400B09J00N000		 PUMP ASSY, ENGINE OIL 1 Rp82.000
3 16421-20E00-000 PIN, OIL PUMP DRIVEN 1 Rp10.500
4 16423-20E00-000 E RING, OIL PUMP DRIVEN 1 Rp4.000
5 01547-0625A-000
SUB: 01547B0625AN000		 BOLT 2 Rp6.500
6 16422-09J00-000
SUB: 16422B09J00N000		 COVER, OIL PUMP 1 Rp22.000
7 16423-09J00-000
SUB: 16423B09J00N000		 O RING, OIL PUMP COVER 1 Rp12.500
8 01547-0680A-000
SUB: 01547B0680AN000		 BOLT 2 Rp4.000
9 16510-09J00-000
SUB: 16510B09J00N000		 FILTER, ENG OIL 1 Rp11.500
10 16512-09J00-000
SUB: 16512B09J00N000		 CAP, OIL FILTER 1 Rp12.500
11 16518-09J00-000
SUB: 16518B09J00N000		 O RING, OIL FILTER CAP 1 Rp4.000
12 16519-09J00-000
SUB: 16519B09J00N000		 SPRING, OIL FILTER 1 Rp3.000
13 09280-13010-000
SUB: 09280B13010N000		 O RING (D:1.9,ID:12.5) 1 Rp3.000
14 01547-0616A-000
SUB: 01547B0616AN000		 BOLT 2 Rp6.500
15 16520-09J00-000
SUB: 16520B09J00N000		 STRAINER, ENG OIL 1 Rp11.500
16 16523-09J00-000
SUB: 16523B09J00N000		 CAP, OIL STRAINER 1 Rp11.000
17 16524-09J00-000
SUB: 16524B09J00N000		 SPRING, OIL STRAINER 1 Rp3.000
18 16525-09J00-000
SUB: 16525B09J00N000		 O RING 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
